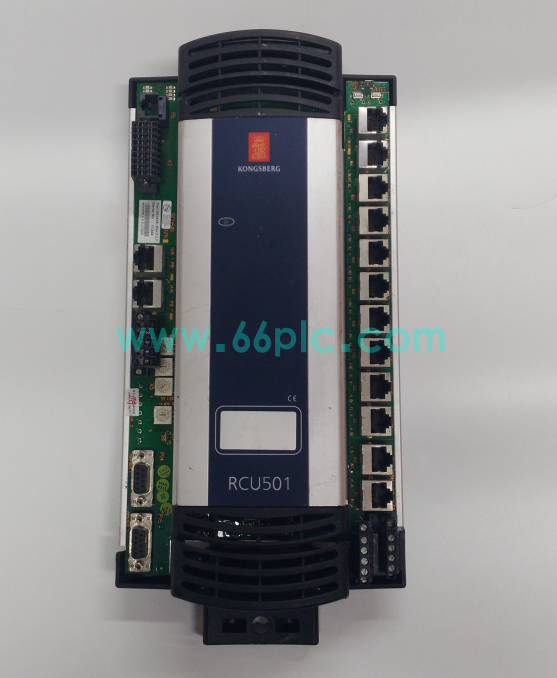

Kongsberg RCU501 Remote Controller Unit

RCU501 is a high-performance real-time marine process control computer developed by Kongsberg Norway, built on PowerPC embedded processor architecture. It serves as distributed master controller for ship dynamic positioning, thruster propulsion and offshore safety systems, collecting analog & digital field signals and executing closed-loop positioning & interlock control logic. It supports redundant dual network architecture to meet marine safety SIL requirements.

This obsolete marine controller is critical spare inventory for offshore platforms, drilling vessels and merchant ship automation refits. It features fully isolated multi-type communication ports, built-in self-diagnosis, and rugged aluminum housing resistant to vibration, humidity and corrosive marine atmosphere, certified for Ex Zone 2 hazardous cabinet installation.

Main Specifications

• Brand: Kongsberg Maritime; Model: RCU501; PN: 603439; Type: Marine Remote Control Unit
• Core Processor: PowerPC MPC8245, 16MB Flash storage, high-speed real-time operation
• I/O Channels: 4DI + 4DO, multi-range AI/AO supporting Pt100, ±10V, 4-20mA and Namur sensors
• Communication Interfaces: Dual Ethernet, Dual RBUS remote I/O bus, PROFIBUS, CAN bus, multi-isolated RS232/422/485 serial ports
• Safety Compliance: Single unit SIL1; Dual redundant configuration meets SIL2/SIL3 marine safety standards
• Power Supply: 24VDC ±20% dual redundant power input, max power consumption 20W
• Mechanical: DIN rail mount, dimension 355×158×87mm, weight approx 1.35kg, IP20 cabinet grade
• Environment: Operating -10℃ ~ +60℃, storage -40℃ ~ +70℃, anti-vibration marine industrial standard
• Certifications: Ex Zone 2 hazardous area, CE, marine DNV/ABS ship automation certification

Core Functions

• Real-time signal acquisition of ship position, heading, thruster pressure and temperature sensors for dynamic positioning calculation.
• Dual redundant Ethernet and RedundancyNet automatically switch communication links to avoid DP system positioning failure caused by single network breakdown.
• Multi-protocol bus gateway integrates third-party inverters, navigation instruments and fire & gas monitoring equipment into unified control network.
• Execute safety interlock logic for offshore emergency shutdown, over-speed protection and marine hazardous gas alarm output.
• RBUS remote I/O bus realizes long-distance distributed signal collection, reducing cable layout workload on large vessels and platforms.
• Comprehensive hardware & channel self-diagnosis locates communication disconnection, sensor wire break and module power faults via front panel indicators.

Application Scenarios

• Master controller spare replacement for Kongsberg DP3/DP4 dynamic positioning systems on offshore drilling and construction vessels.
• Propulsion control spare parts for ship thruster, steering gear and marine main engine auxiliary automation cabinets.
• Maintenance backup inventory for FPSO floating production platforms, subsea pipeline monitoring and marine safety alarm systems.
• Matching control unit paired with Kongsberg remote I/O modules, marine temperature transmitters and shipboard frequency converters.
• Retrofit replacement components for aging ship automation systems suffering positioning drift, bus communication loss and sensor signal acquisition failure.

• Global aftermarket spare stock for marine automation maintenance teams managing legacy Kongsberg offshore control equipment worldwide.
