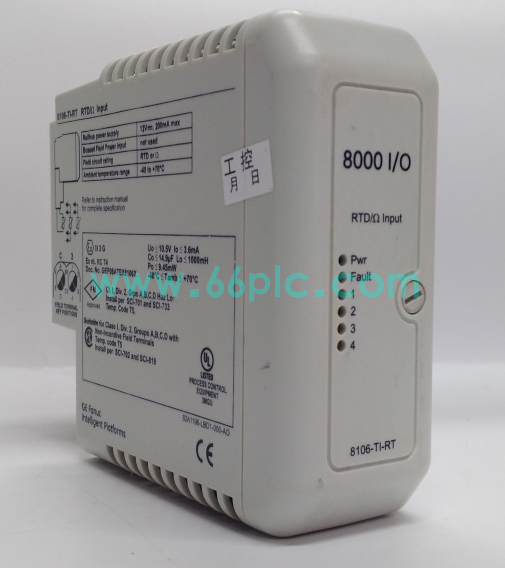

ICS TRIPLEX 8106-TI-RT 4-Channel RTD Input Module

8106-TI-RT is a 4-channel RTD temperature acquisition module for ICS TRIPLEX PAC8000 / 8000 I/O control system. It supports 2/3/4-wire Pt100, Ni120 and other thermal resistance sensors, converting resistance signals into standardized digital data uploaded to the main controller via Railbus backplane. Built-in 250VAC isolation suppresses industrial electromagnetic interference and ground loop drift, ensuring stable temperature measurement in chemical, power and oil & gas sites.

This discontinued temperature I/O module is a mainstream maintenance spare for legacy process control systems. It adopts conformal-coated PCB for anti-corrosion, supports hot-swap replacement without full system shutdown, and is equipped with front panel LED indicators to quickly detect open-circuit, over-range and power supply faults during field debugging.

Main Specifications

• Brand: ICS TRIPLEX Intelligent Platforms; Model: 8106-TI-RT; Series: PAC8000 8000 I/O RTD Input Module
• Channel Configuration: 4 independent RTD channels, compatible with 2/3/4-wire sensor wiring
• Supported Sensors: Pt100 (IEC/DIN), Ni120, JPt100; resistance range 0–500Ω
• Measurement Performance: 15-bit resolution, typical accuracy ±0.1% span; 200μA constant excitation current
• Isolation & Anti-interference: 250VAC channel-to-backplane isolation, CMRR＞80dB at 50/60Hz
• Power Consumption: 24VDC system power, max 200mA, single standard slot installation
• Environmental Index: Operating 0℃~+60℃, storage -40℃~+85℃, 5%–95% RH non-condensing, IP20 cabinet grade
• Diagnostic Functions: Channel open-circuit detection, high/low temperature alarm, real-time LED status display
• Compatibility: Matches PAC8000 rack backplane, Proficy configuration software, series 8000 I/O base units
• Certifications: CE, UL industrial EMC certification, FM non-incendive field wiring certification

Core Functions

• Collect real-time temperature signals from field RTD sensors, convert resistance variation into digital temperature values for PLC processing and monitoring.
• Multi-stage digital filtering is optional to filter high-frequency noise, avoiding measurement jitter caused by high-power equipment in industrial workshops.
• Independent isolation design for each channel prevents single-channel wire breakage or overload faults from affecting other temperature measurement loops.
• Built-in open-circuit self-diagnosis function automatically triggers alarm signals when sensor cables fall off or break, eliminating blind measurement risks.
• Hot-swappable modular structure allows independent module replacement without shutting down the whole control rack, reducing downtime of continuous production lines.
• Standard Railbus communication bus transmits temperature data to the main controller synchronously, supporting real-time trend recording and over-temperature interlock logic.

Application Scenarios

• Temperature acquisition spare replacement for ICS TRIPLEX PAC8000 control racks in thermal power plants, combined cycle and hydropower auxiliary monitoring cabinets.
• RTD signal collection spare parts for petrochemical refineries, chemical reactors, oil storage tank and pipeline temperature monitoring systems.
• Maintenance backup inventory for pulp & paper mills, metallurgical heating furnaces and food pharmaceutical constant temperature production lines.
• Matching temperature I/O accessory paired with PAC8000 rack, main controller and Pt100 thermal resistance field sensors.
• Retrofit replacement components for aging control systems featuring temperature drift, signal loss and channel open-circuit detection failure faults.

• Global aftermarket spare stock for automation maintenance teams managing obsolete ICS TRIPLEX PAC8000 distributed control hardware worldwide.
