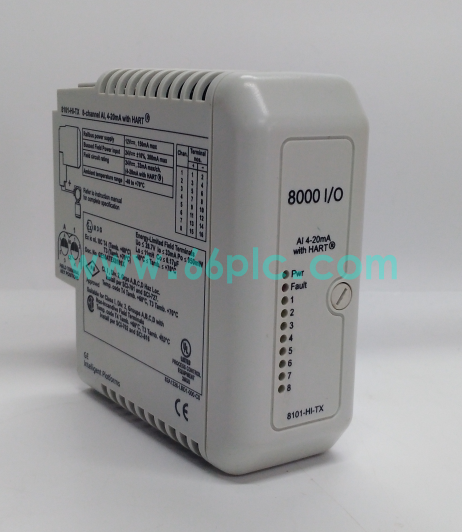

ICS TRIPLEX 8101-HI-TX-02 Analog Transmitter Module

8101-HI-TX-02 is a high-isolation analog signal conditioning transmitter module under ICS TRIPLEX T9000 trusted safety control system. It converts weak field analog signals such as 4-20mA and 0-10V into standardized isolated transmission signals, with reinforced galvanic isolation design to block common-mode interference in heavy industrial sites. It matches T9000 safety rack backplane and transmits processed analog data to triple redundant main controllers for safety interlock and process monitoring.

This safety-grade signal transmitter is a key maintenance spare for legacy petrochemical, power and pipeline safety control systems. It adopts conformal coated PCB to resist damp and corrosive gas, supports hot-swap operation without system shutdown, and carries front panel LED indicators to display power status, signal loop break and overrange faults for quick on-site inspection.

Main Specifications

• Brand: ICS TRIPLEX (Rockwell Automation); Model: 8101-HI-TX-02; Series: T9000 Trusted Safety System Analog Transmitter
• Signal Input: Universal analog input, compatible with 4-20mA current signal and 0-10V voltage signal from field transmitters
• Isolation Performance: High-grade reinforced galvanic isolation, withstands high differential voltage to eliminate ground loop noise
• Backplane Power: 24VDC system power supply, single standard slot installation on T9000 rack backplane
• Safety Standard: SIL2 safety integrity level certification, designed for critical process safety interlock control loops
• Environmental Conditions: Operating temperature 0℃ ~ +60℃, storage -40℃ ~ +85℃, 5%–95% RH non-condensing, IP20 cabinet rating
• Diagnostic Functions: Multi-color LED alarms for power loss, open circuit, signal overrange and module hardware failure
• Compatibility: Fully matched with T9000 triple redundant CPU, analog input base boards and safety rack chassis
• Certifications: CE, IEC 61508 SIL2, anti-surge and EMC industrial electromagnetic compatibility certification

Core Functions

• Condition and isolate analog measurement signals from field pressure, temperature and flow transmitters to suppress industrial electromagnetic interference.
• Transmit standardized isolated analog data to T9000 triple redundant safety controllers to support high-reliability safety interlock and process parameter monitoring.
• Built-in open-loop and overrange self-diagnosis logic automatically triggers fault alarms once field signal lines break or exceed measurement range.
• High isolation barrier thoroughly isolates field hazardous area circuits and control room safety circuits to prevent high voltage surges from damaging safety rack core hardware.
• Hot-swappable single-slot modular design allows independent replacement without powering down the entire safety control system, reducing production halt risk.
• SIL2 safety architecture ensures stable signal transmission under abnormal industrial conditions, complying with strict safety control requirements of hazardous process industries.

Application Scenarios

• Isolation signal transmitter spare replacement for ICS TRIPLEX T9000 safety control racks in thermal power plants and natural gas pipeline safety interlock systems.
• Safety-grade analog signal conditioning spare parts for petrochemical refineries, chemical reactors and oil storage tank area monitoring control cabinets.
• Maintenance backup inventory for coal chemical plants, metallurgical hazardous production lines and municipal gas pipeline safety automation systems.
• Matching signal processing accessory paired with T9000 triple redundant CPU, safety analog input modules and field smart transmitters.
• Retrofit replacement components for aging safety control systems featuring signal distortion, ground loop drift and channel isolation failure faults.

• Global aftermarket spare stock for safety automation maintenance teams managing ICS TRIPLEX trusted safety control equipment worldwide.
