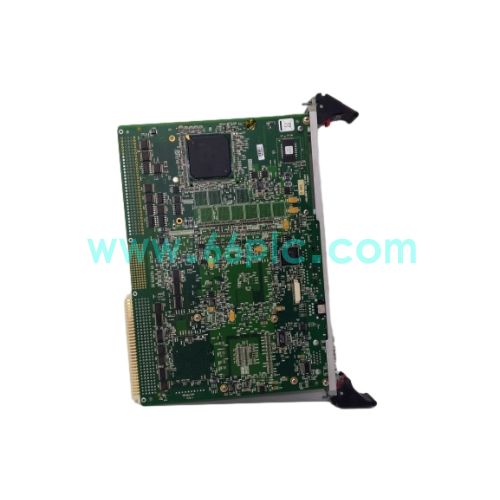

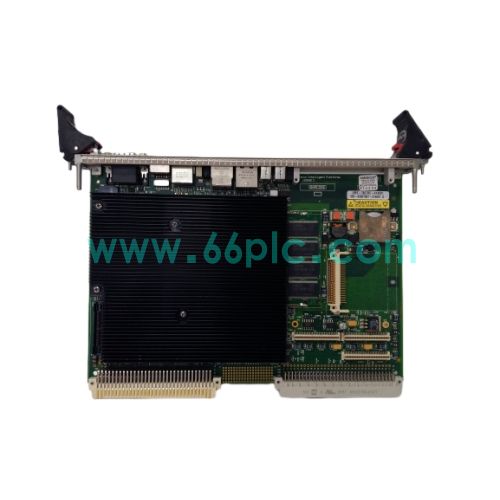

GE FANUC VME‑7807RC‑414001 VMEbus Single Board Computer

The GE FANUC VME‑7807RC‑414001 is a high‑performance 6U VMEbus single‑board computer, originally developed by VMIC under GE Fanuc Embedded Systems division. Equipped with Intel Pentium‑M processor, it delivers fan‑less embedded computing power for VME‑based turbine control, industrial automation and real‑time data acquisition systems. It acts as main processing unit to run application software and communicate with other VME peripheral modules via backplane bus.

This 6U Eurocard SBC supports bootable CompactFlash storage, dual gigabit Ethernet, multiple serial ports and PMC mezzanine expansion slot. On‑board hardware watchdog timer and battery‑backed NVRAM ensure reliable continuous operation under harsh industrial conditions. It plugs into standard VME chassis backplane for power and bus interconnection. As obsolete aftermarket spare parts, it is widely used for maintenance, replacement and retrofit of GE turbine and legacy VME industrial control equipment.

Main Specifications

1. Brand: GE FANUC(GE Intelligent Platforms / VMIC); Model: VME‑7807RC‑414001; Type: 6U VMEbus Single Board Computer
2. Compatible System: Standard 6U VME chassis, VME64x backplane, PMC expansion modules, GE legacy turbine control systems
3. Core Functions: Embedded real‑time computing, VMEbus master/slave communication, high‑speed data processing, PMC expansion, watchdog supervision, CompactFlash system boot, NVRAM configuration storage
4. Port Resource: Dual Gigabit Ethernet, multiple serial ports, USB interfaces, SVGA video, PMC expansion slot, VME backplane golden finger connector
5. Supported Feature: VME64x compliance, fan‑less passive cooling, bootable CompactFlash, hardware watchdog timer, non‑volatile RAM, industrial wide‑temperature adaption
6. Hardware Feature: Standard 6U Eurocard VME form factor, industrial‑grade embedded components, single‑slot rack‑mount installation
7. Supply Status: Aftermarket spare part for legacy GE turbine and VME‑bus industrial system maintenance and component replacement

Core Functions

1. Run embedded operating systems such as VxWorks and Linux for real‑time turbine control and industrial data processing tasks.
2. Operate as VMEbus master or slave to exchange high‑speed process data with other VME I/O and peripheral modules via chassis backplane bus.
3. Support PMC mezzanine card expansion to extend additional communication and I/O functions according to project requirements.
4. Adopt on‑board hardware watchdog timer to detect software crash and trigger automatic reset to improve whole‑system reliability.
5. Boot operating system from onboard CompactFlash storage to replace mechanical hard disk for vibration‑prone industrial cabinet environments.
6. NVRAM preserves critical configuration and parameter data after power‑off to avoid parameter loss during unexpected power cycle events.

Application Scenarios

1. Main embedded computing unit for gas turbine control, industrial automation and test systems adopting VME‑bus architecture.
2. Fault single‑board‑computer replacement and routine maintenance of existing GE Fanuc VME‑chassis‑based control cabinets.
3. Computing‑hardware upgrading and technical transformation for aging legacy VME embedded industrial control systems.
4. Emergency swap for SBC hardware failure of continuously‑running critical turbine and industrial production facilities.
5. Spare‑parts stocking for equipment maintenance teams supporting legacy GE Fanuc VMIC VME series hardware.
6. Aftermarket spare supply for VME‑system overhaul and technical‑service projects of power generation and industrial process facilities.

FAQ

1. Q: Can GE FANUC VME‑7807RC‑414001 work independently without matching VME chassis and backplane?
   A: It must be installed in standard 6U VME chassis and cooperate with VME backplane bus, cannot operate as standalone hardware.
2. Q: What are typical module failure symptoms?
   A: System boot failure, VME‑bus communication abort, Ethernet port offline, watchdog frequent reset, CompactFlash boot error.
3. Q: How to complete commissioning and diagnosis?
   A: Inspect VME chassis power supply and backplane contact; check boot log, network status and hardware registers through system console interface.
