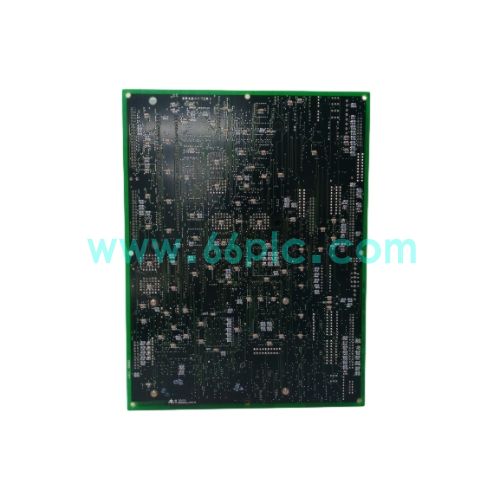

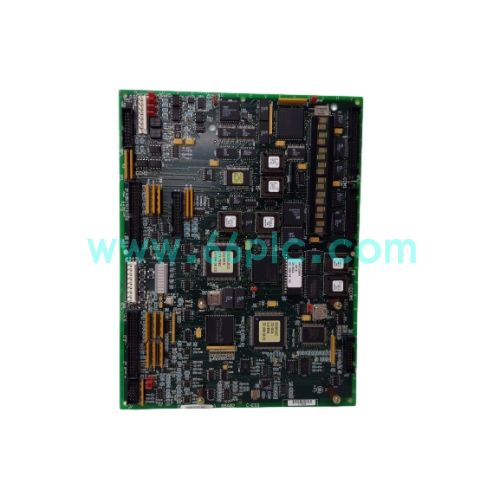

GE DS200LDCCH1ALA DC Drive Control Board

The GE DS200LDCCH1ALA is a DC drive control board for the GE Speedtronic Mark V turbine control system. It handles DC‑loop signal processing and power‑drive control functions for turbine auxiliary equipment. It receives set‑point commands from the main controller and outputs control signals to regulate DC‑type actuators, valves and auxiliary drive units within the turbine cabinet.

This plug‑in rack board communicates with other system components through the Mark V backplane bus. It supports real‑time signal feedback collection and built‑in hardware fault detection, with status indicators for fast field troubleshooting. As an end‑of‑life legacy component, it is widely used as aftermarket spare parts for power‑plant turbine‑control‑system maintenance and retrofit projects.

Main Specifications

• Brand: General Electric(GE); Model: DS200LDCCH1ALA; Type: DC Drive Control Board
• Compatible System: GE Speedtronic Mark V turbine control rack, Mark V backplane bus, turbine DC actuators
• Core Functions: DC drive signal processing, actuator control output, feedback‑signal acquisition, backplane data exchange, hardware fault diagnosis
• Port Resource: Mark V backplane connector, field signal terminal block, status LED indicators
• Supported Feature: Closed‑loop signal regulation, over‑current protection, fault‑code storage, noise suppression for power‑plant environment
• Hardware Feature: Standard Mark V rack plug‑in form factor, 5VDC logic power supply, wide‑temperature industrial grade
• Supply Status: Aftermarket spare part for legacy power‑plant turbine‑control‑system maintenance and component replacement

Core Functions

• Receive control commands and set‑point values from Mark V main controller via chassis backplane bus.
• Generate drive control signals for turbine‑related DC actuators, auxiliary valves and DC‑type drive devices.
• Collect real‑time voltage and current feedback signals from field DC loops to realize closed‑loop regulation control.
• Monitor drive‑loop operating status, detect over‑current, open‑circuit and short‑circuit faults, store fault diagnostic information.
• Transmit field‑side operating data back to the main turbine controller for logic judgment and system monitoring display.
• Provide reliable drive control for important auxiliary equipment, ensuring stable and safe operation of gas‑turbine and steam‑turbine units.

Application Scenarios

• DC‑actuator drive control for gas‑turbine and steam‑turbine power‑generation units adopting GE Mark V Speedtronic platform.
• Fault drive‑control‑board replacement and routine maintenance of existing power‑plant turbine control cabinets.
• Drive‑hardware upgrading and technical transformation for aging legacy turbine automation control systems.
• Emergency swap for control‑board failure of continuously‑running key power‑generation turbine equipment.
• Spare‑parts stocking for power‑plant electrical‑instrument maintenance teams supporting GE Mark V legacy turbine products.
• Aftermarket spare supply for power‑plant unit overhaul and technical‑service projects of power‑generation industrial facilities.

FAQ

• Q: Can DS200LDCCH1ALA work without Mark V rack and main controller?
  A: It must be installed into GE Mark V control rack and communicate via backplane bus, cannot complete DC drive control as standalone hardware.
• Q: What are typical module failure symptoms?
  A: DC actuator no‑action, output current abnormal, feedback signal loss, drive fault alarm, data communication abnormal with main controller.

• Q: How to complete commissioning and diagnosis?
  A: Inspect rack power supply and terminal wiring; read fault codes, check drive output and feedback status via Mark V configuration software.
