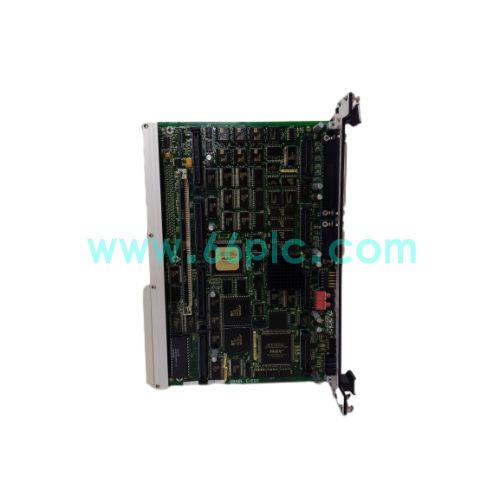

GE DS200DSPCH1ADA DSP Control Board

The GE DS200DSPCH1ADA is a high‑performance digital signal processor control board belonging to GE Speedtronic Mark V turbine control system. It serves as the core drive signal processing unit, dedicated to auxiliary drive control for gas and steam turbine units, executing high‑speed motor control algorithms for lube oil pumps, hydraulic pumps and cooling fans. It receives operation commands from the main TMR turbine controller and outputs precise drive control signals for auxiliary equipment.

This rack‑mount plug‑in board is equipped with on‑board DSP chip, dual‑port memory and multiple industrial communication interfaces, supporting real‑time data calculation and fault diagnosis. It exchanges data with other system boards via Mark V backplane bus. As an obsolete legacy component, it is widely used as aftermarket spare parts for power‑plant turbine control‑system maintenance and retrofitting projects.

Main Specifications

• Brand: General Electric(GE); Model: DS200DSPCH1ADA; Type: DSP Drive Control Board
• Compatible System: GE Speedtronic Mark V turbine control rack, Mark V backplane bus, turbine auxiliary drive units
• Core Functions: High‑speed DSP algorithm computation, auxiliary motor speed‑torque control, drive signal processing, backplane data exchange, hardware self‑diagnosis
• Port Resource: Mark V backplane connector, multi‑channel signal terminals, serial communication ports, status indicator LEDs
• Supported Feature: Real‑time closed‑loop control, fault code recording, high‑speed data acquisition, anti‑interference for power‑plant environment
• Hardware Feature: Standard Mark V rack plug‑in structure, 5VDC logic power supply, wide operating temperature range
• Supply Status: Aftermarket spare part for legacy power‑plant turbine‑control‑system maintenance and component replacement

Core Functions

• Receive speed, torque and sequence control commands from Mark V triple‑redundant main controller via backplane bus.
• Run high‑speed DSP control algorithms to generate drive control signals for turbine auxiliary motors such as oil pumps and cooling fans.
• Collect real‑time feedback signals of motor current, speed and equipment status, complete closed‑loop adjustment to guarantee stable auxiliary‑equipment operation.
• Detect hardware faults and drive‑loop abnormalities, store fault records and output status indication for on‑site troubleshooting.
• Complete high‑speed data interaction with other control boards, upload auxiliary‑drive operating data to main turbine control system.
• Guarantee reliable startup and safe operation of critical auxiliary equipment, providing essential protection foundation for main gas/steam turbine unit.

Application Scenarios

• Auxiliary drive control for gas‑turbine and steam‑turbine power‑generation units adopting GE Mark V Speedtronic platform.
• Fault DSP‑control‑board replacement and routine maintenance of existing power‑plant turbine control cabinets.
• Drive‑control hardware upgrading and technical transformation for aging legacy turbine automation control systems.
• Emergency swap for control‑board failure of continuously‑running key power‑generation turbine equipment.
• Spare‑parts stocking for power‑plant electrical‑instrument maintenance teams supporting GE Mark V legacy turbine products.
• Aftermarket spare supply for power‑plant unit overhaul and technical‑service projects of power‑generation industrial facilities.

FAQ

• Q: Can DS200DSPCH1ADA work without Mark V rack and main controller?
  A: It must be installed into GE Mark V control rack and communicate via backplane bus, cannot complete drive control as standalone hardware.
• Q: What are typical module failure symptoms?
  A: Auxiliary motor cannot start, speed unstable, drive fault alarm, abnormal feedback data, communication failure with main turbine controller.

• Q: How to complete commissioning and diagnosis?
  A: Inspect rack power supply and backplane connection; read fault codes, check drive status and parameter settings via Mark V configuration software.
