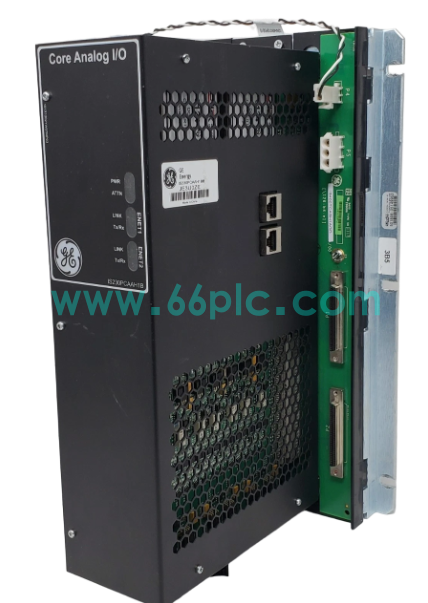

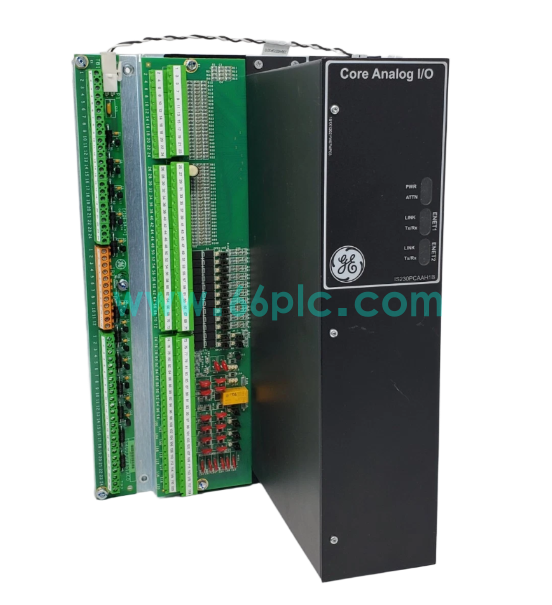

GE IS230PCAAH1B Core Analog I/O Module

The GE IS230PCAAH1B is a core analog I/O module for GE Mark VIe turbine distributed control systems. It serves as the front‑end signal processing unit for gas and steam turbine units, collecting multiple field analog signals and converting them into digital data for the main controller. It also outputs servo drive signals to regulate valve actuators for turbine speed, load and temperature closed‑loop control.

This rack‑mount module must work with TCAT/TCAS terminal boards, supporting simplex, dual redundant and TMR triple‑modular‑redundant architectures. Equipped with dual redundant IONet Ethernet interfaces and comprehensive hardware self‑diagnosis, it supports hot‑swap replacement. Widely used as aftermarket spare hardware for thermal power plants, oil‑gas power generation facilities for legacy turbine‑control‑system maintenance and equipment retrofitting projects.

Main Specifications

1. Brand: GE; Model: IS230PCAAH1B; Type: Core Analog I/O Module
2. Compatible System: GE Mark VIe turbine DCS system, matched with TCAT / TCAS terminal boards
3. Core Function: Multi‑type analog signal acquisition, A/D‑D/A conversion, servo valve drive output, IONet redundant communication
4. Port Resource: Dual IONet Ethernet ports, multi‑channel analog signal interfaces, status LED indicators, high‑density connector for terminal board
5. Supported Feature: Simplex / dual / TMR redundant configuration, hot‑swap, channel self‑diagnosis, multi‑signal conditioning and isolation
6. Hardware Feature: Industrial rack‑mount structure, 28VDC operating power supply, wide operating temperature for power‑plant environment, channel isolation protection
7. Supply Status: Aftermarket spare part for legacy Mark VIe turbine control‑system maintenance and component replacement

Core Functions

1. Collect field signals including thermocouple temperature, 4‑20mA current, LVDT displacement, seismic vibration and pulse frequency from turbine site via matched terminal boards.
2. Complete high‑precision analog‑to‑digital conversion, transmit real‑time process data to Mark VIe main controller through redundant IONet industrial Ethernet bus.
3. Receive control commands from main controller, output servo drive signals to control turbine hydraulic valve actuators, realize closed‑loop regulation of rotating‑machinery speed and load.
4. Carry out continuous self‑diagnosis for hardware and each signal channel, detect sensor disconnection, loop fault and module abnormality, upload fault alarms to DCS system.
5. Support hot‑swap operation, technicians can ｒｅｐｌａｃｅ faulty module without shutting down turbine control rack, reducing unit downtime risk during maintenance.
6. Support multiple redundancy modes, satisfy high‑reliability safety requirements of gas‑steam turbine units in power‑generation industry.

Application Scenarios

1. Signal acquisition and valve control for gas turbine and steam‑turbine units adopting GE Mark VIe DCS control platform.
2. Fault core‑analog‑I/O‑module replacement and routine maintenance of existing turbine‑control cabinet racks in power plants.
3. I/O hardware upgrading and technical transformation for aging legacy power‑generation turbine control systems.
4. Emergency swap for analog‑I/O channel failure of continuously‑running turbine generating units on‑site.
5. Spare‑parts stocking for power‑plant maintenance teams and system integrators supporting GE Mark VIe legacy platforms.
6. Aftermarket spare supply for unit overhaul and technical‑service projects of thermal power and oil‑gas power‑generation facilities.

FAQ

1. Q: Can IS230PCAAH1B operate independently without Mark VIe rack and TCAT terminal board?
   A: It must be installed into Mark VIe rack and cooperate with TCAT/TCAS terminal board, cannot complete turbine signal processing as standalone hardware.
2. Q: What are typical module failure symptoms?
   A: Loss of field analog measurement data, servo valve no response, IONet communication interruption, channel fault alarm, abnormal turbine parameter feedback.

3. Q: How to complete commissioning and diagnosis?
   A: Inspect 28VDC power supply and terminal‑board wiring; configure channel parameters via Mark VIe configuration software, observe LED indicators and read module diagnostic event logs.
