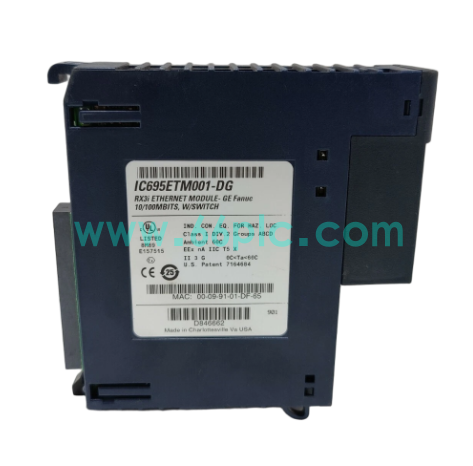

GE FANUC IC695ETM001‑DG PACSystems RX3i Ethernet Transmitter Module

The GE FANUC IC695ETM001‑DG is a high‑performance Ethernet transmitter communication module for PACSystems RX3i PLC control systems. Equipped with independent 200 MHz communication processor, it provides dual 10/100 Mbps auto‑sensing Ethernet ports with embedded switch, realizing reliable network connection for RX3i CPU, HMI, upper monitoring host and third‑party automation devices. It supports multiple industrial protocols for real‑time industrial data transmission and network management tasks.

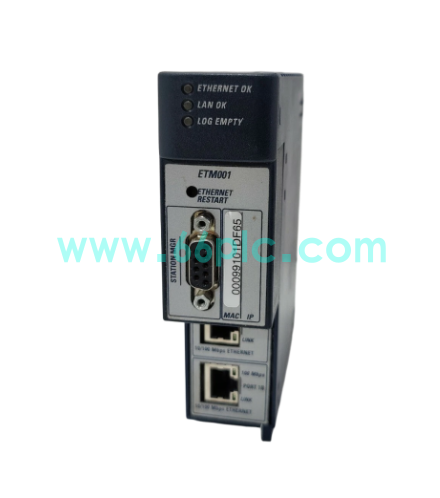

This single‑slot rack‑mount module features RS‑232 station manager diagnostic port and multi‑channel LED status indicators for convenient on‑site status inspection and troubleshooting. It supports hot‑swap operation and connects to RX3i universal backplane for power and bus data interaction. As aftermarket spare parts, it is widely used for maintenance, replacement and retrofit of manufacturing, power and petrochemical RX3i automation control systems.

Main Specifications

1. Brand: GE FANUC(Emerson); Model: IC695ETM001‑DG; Type: RX3i Ethernet Transmitter Communication Module
2. Compatible System: PACSystems RX3i PLC series, RX3i universal backplane IC695CHS series, RX3i CPU controllers
3. Core Functions: Industrial Ethernet communication processing, multi‑protocol data transmission, backplane bus data exchange, station‑manager diagnosis, link status monitoring, fault self‑diagnosis, hot‑swap support, LED status indication
4. Port Resource: Dual RJ‑45 10/100Mbps Ethernet ports, RS‑232 D‑sub station‑manager serial port, RX3i backplane connector, front‑panel diagnostic LED indicators
5. Supported Feature: Built‑in network switch, SRTP / Modbus‑TCP / EGD protocol support, SNTP time synchronization, auto‑negotiation, industrial anti‑interference, hot‑swap replacement
6. Hardware Feature: Single‑slot RX3i rack module, 200MHz independent communication processor, industrial‑grade wide‑temperature design
7. Supply Status: Aftermarket spare part for legacy PACSystems RX3i automation system maintenance and component replacement

Core Functions

1. Establish high‑speed Ethernet communication channel between RX3i PLC controller and HMI, SCADA host and field network devices.
2. Support SRTP, Modbus‑TCP client/server and EGD Ethernet global data for periodic inter‑controller data exchange.
3. Realize parameter configuration, firmware upgrade and online diagnosis via RS‑232 station‑manager serial interface.
4. Adopt embedded network switch to support daisy‑chain network wiring to simplify industrial cabinet network layout.
5. Monitor Ethernet link state in real‑time, feed back communication fault information and display working status through front‑panel LED indicators.
6. Support hot‑swap online replacement to shorten equipment downtime during module maintenance operations.

Application Scenarios

1. Industrial network communication unit for manufacturing, power and petrochemical plants adopting GE PACSystems RX3i PLC platform.
2. Fault communication‑module replacement and routine maintenance of existing RX3i automation control cabinets.
3. Network‑interface hardware upgrading and technical transformation for aging legacy RX3i industrial control systems.
4. Emergency swap for Ethernet‑module failure of continuously‑running critical automated production facilities.
5. Spare‑parts stocking for plant automation‑maintenance teams supporting GE Fanuc RX3i series control products.
6. Aftermarket spare supply for PLC‑system overhaul and technical‑service projects of industrial process facilities.

FAQ

1. Q: Can IC695ETM001‑DG work independently without RX3i backplane and CPU controller?
   A: It must be installed in matching RX3i backplane and cooperate with RX3i main CPU, cannot operate as standalone hardware.
2. Q: What are typical module failure symptoms?
   A: Ethernet link disconnection, network data transmission interruption, LED fault alarm, PLC cannot communicate with upper computer and field network devices.
3. Q: How to complete commissioning and diagnosis?
   A: Inspect rack power supply, backplane contact and network cable connection; check link status and fault information through station‑manager tool or PAC Machine Edition software.
