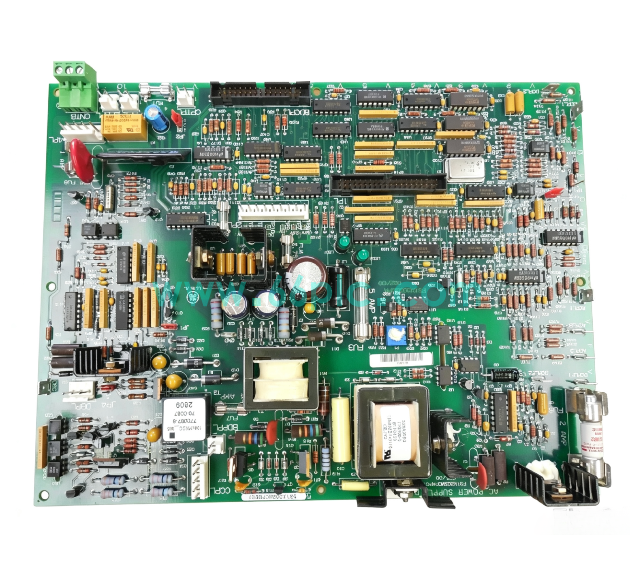

GE 531X303MCPBBG1 Motor Control Processor Auxiliary Board

The GE 531X303MCPBBG1 is a motor control processor auxiliary board for GE Series‑3 turbine control systems. It performs signal conditioning and pre‑processing for motor protection and auxiliary drive loop signals. Installed within the Series‑3 control cabinet, it connects to the MCP main processor board to expand input channels for power‑generation gas and steam turbine auxiliary‑equipment control.

This auxiliary board is equipped with signal filter circuits, field wiring terminals, inter‑board connectors and hardware status LED indicators. It continuously monitors channel integrity including open‑circuit and short‑circuit conditions, and transmits fault status to the main MCP processor. On‑board noise filtering enhances signal stability in high‑electromagnetic‑interference turbine‑hall environments. Original production has been discontinued. It is widely supplied as aftermarket spare parts for Series‑3 cabinet maintenance and legacy power‑plant control‑system retrofit projects.

Main Specifications

1. Brand:GE; Model:531X303MCPBBG1; Type:Motor Control Processor Auxiliary Board
2. Compatible Platform:GE Series‑3 gas / steam turbine control system cabinet
3. Core Function:Motor‑loop signal conditioning, field signal pre‑processing and input‑channel expansion for MCP main board
4. Interface Resource:External field wiring terminals and dedicated inter‑board connectors for communication with main processor
5. Status Indicator:On‑board LED indicators for channel running status and hardware fault feedback
6. Hardware Feature:Built‑in filter circuits for electromagnetic interference suppression in industrial field environments
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Acquire raw analog and discrete signals from field motor‑related equipment, complete signal filtering and conditioning processing.
2. Deliver pre‑processed field data to the matched MCP main processor board through inter‑board connectors for motor‑control‑logic calculation.
3. Expand available input channels of the motor‑control subsystem without modifying main processor hardware resources.
4. Detect channel‑level faults such as open‑circuit and short‑circuit, upload fault events and display real‑time status via on‑board LED indicators for on‑site maintenance inspection.
5. Suppress field electromagnetic noise to ensure stable and reliable signal transmission for motor protection and auxiliary drive control loops.
6. Serve as important auxiliary signal‑processing hardware for GE Series‑3 turbine motor‑control and auxiliary‑equipment subsystems in power‑generation facilities.

Application Scenarios

1. Power‑plant gas‑turbine and steam‑turbine generator sets adopting GE Series‑3 turbine control and motor‑protection systems.
2. Spare auxiliary‑board replacement and routine maintenance of existing Series‑3 MCP motor‑control subsystems inside turbine control cabinets.
3. Technical renovation and motor‑control‑channel expansion upgrade of aging legacy Series‑3 turbine automation control installations.
4. On‑site troubleshooting and replacement of faulty motor‑control auxiliary boards on continuously running turbine generation units.
5. Spare‑parts stocking for system integrators and power‑plant maintenance contractors supporting legacy GE Series‑3 hardware platforms.
6. Global aftermarket spare supply for technical teams maintaining obsolete GE Series‑3 turbine‑control hardware.

FAQ

1. Q:Can 531X303MCPBBG1 work as standalone unit?
   A:It is an auxiliary daughter board, must cooperate with Series‑3 MCP main processor board, standalone operation cannot perform motor‑control functions.
2. Q:What symptoms appear upon board failure?
   A:Loss of partial motor‑loop signals, abnormal measurement readings, Series‑3 MCP subsystem fault alarm may occur.

3. Q:How to complete configuration and diagnosis?
   A:Check local hardware status via on‑board LED indicators; fault query and parameter debugging are performed through Series‑3 HMI and supporting configuration software.
