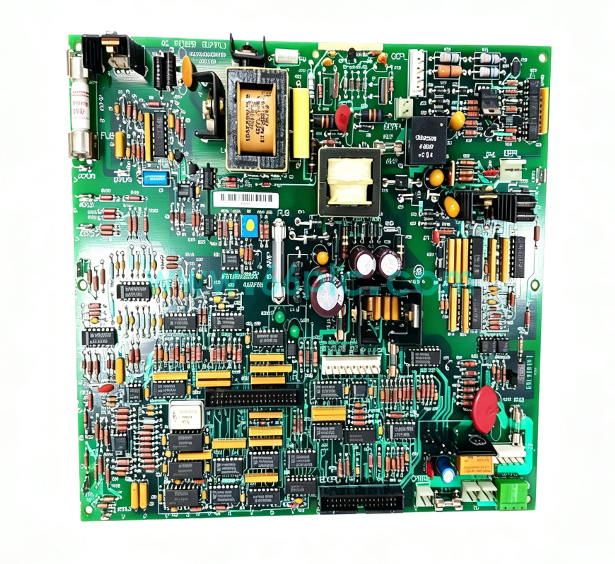

GE 531X303MCPARG1 Motor Control Processor Auxiliary Board

The GE 531X303MCPARG1 is a motor control processor auxiliary board for GE Series‑3 turbine control systems. It undertakes signal conditioning and data pre‑processing for motor‑related control loops, transferring filtered field signals to the main MCP processor board. Installed in Series‑3 control cabinet, it expands channel capacity for motor protection and auxiliary drive control of power‑generation gas‑steam turbine units.

This auxiliary board is equipped with signal conditioning circuits, inter‑board connectors, field wiring terminals and hardware status LED indicators. It continuously monitors input channel status and hardware health, and reports anomaly signals to the main processor board. Built‑in noise suppression circuits improve signal stability in high‑interference turbine‑hall environment. Original production has been discontinued. It is widely supplied as aftermarket spare parts for Series‑3 cabinet maintenance and legacy power‑plant control‑system retrofit projects.

Main Specifications

1. Brand:GE; Model:531X303MCPARG1; Type:Motor Control Processor Auxiliary Board
2. Compatible Platform:GE Series‑3 gas / steam turbine control system cabinet
3. Core Function:Motor‑loop signal conditioning, field data pre‑processing and channel expansion for main MCP board
4. Interface Resource:Field signal wiring terminals and dedicated inter‑board connectors for data exchange with main processor
5. Status Indicator:On‑board LED lights for channel working state and hardware fault condition feedback
6. Anti‑interference Design:On‑board filtering circuits to suppress electromagnetic interference from industrial site environment
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Receive raw analog and discrete signals from field motor‑related equipment, complete filtering and signal conditioning processing.
2. Transmit pre‑processed measurement data to the matched MCP main processor board via inter‑board connectors for further motor‑control‑logic calculation.
3. Expand effective input‑channel quantity of the motor‑control subsystem without replacing the main MCP processor hardware.
4. Detect channel anomalies such as open‑circuit and short‑circuit, report hardware fault events and display running state via on‑board LED indicators for on‑site inspection.
5. Isolate field interference signals to guarantee reliable data transmission of motor protection and drive‑control loops inside turbine control rack.
6. Serve as key auxiliary signal‑processing hardware for GE Series‑3 turbine motor‑control and auxiliary‑drive subsystems in power‑generation facilities.

Application Scenarios

1. Power‑plant gas‑turbine and steam‑turbine generator sets equipped with GE Series‑3 turbine control and motor‑protection systems.
2. Spare auxiliary‑board replacement and routine maintenance of existing Series‑3 MCP motor‑control subsystems inside turbine control cabinets.
3. Technical renovation and motor‑control‑channel expansion upgrade of aging legacy Series‑3 turbine automation control installations.
4. On‑site troubleshooting and replacement of faulty motor‑control auxiliary boards on continuously running turbine generation units.
5. Spare‑parts stocking for system integrators and power‑plant maintenance contractors supporting legacy GE Series‑3 hardware platforms.
6. Global aftermarket spare supply for technical teams maintaining obsolete GE Series‑3 series turbine‑control hardware.

FAQ

1. Q:Can 531X303MCPARG1 work as standalone unit?
   A:It is a dedicated auxiliary daughter board, must cooperate with matched MCP main processor board under Series‑3 system, standalone operation cannot realize motor‑control functions.
2. Q:What symptoms appear upon board failure?
   A:Partial motor‑loop signal loss, abnormal measurement values, Series‑3 MCP subsystem fault alarm may occur.

3. Q:How to complete configuration and diagnosis?
   A:Check local hardware status via on‑board LED indicators; fault‑query and parameter debugging are completed through Series‑3 HMI and supporting configuration software.
