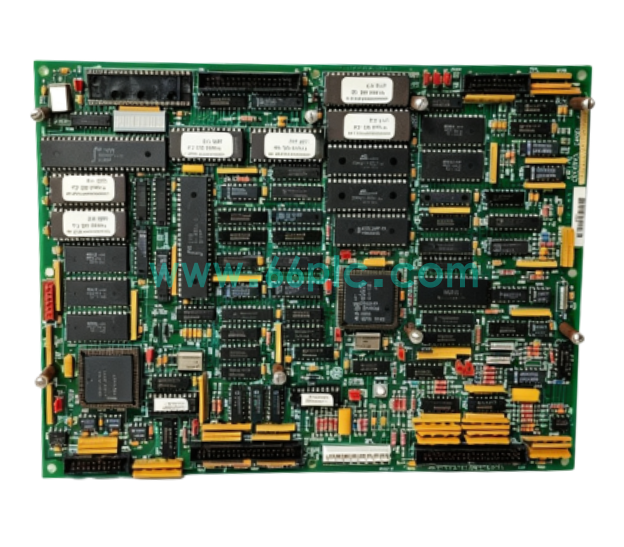

GE 531X301DCCAFG2 DC Control Auxiliary Board

The GE 531X301DCCAFG2 is a DC control auxiliary circuit board designed for GE Series‑3 turbine control systems. It handles DC‑related analog signal conditioning, feedback processing and drive auxiliary signals for turbine excitation and auxiliary control loops. Installed within the Series‑3 control cabinet, it cooperates with main control boards to realize stable regulation for power‑generation gas and steam turbine units.

This auxiliary board integrates signal filter circuits, connector terminals, hardware status LED indicators and built‑in diagnostic circuits. It receives command signals from main controller boards and returns processed feedback data for closed‑loop adjustment. Continuous hardware self‑check monitors board operating conditions. Original production has been discontinued. It is widely supplied as aftermarket spare parts for Series‑3 turbine cabinet maintenance and legacy power‑plant control‑system retrofit projects.

Main Specifications

1. Brand:GE; Model:531X301DCCAFG2; Type:DC Control Auxiliary Circuit Board
2. Compatible Platform:GE Series‑3 gas / steam turbine control system cabinet
3. Core Processing:DC analog signal conditioning, feedback signal acquisition and auxiliary drive signal processing
4. Signal Interface:Multi‑point wiring terminals for field signal access and inter‑board connectors for main‑board data interaction
5. Status Feedback:On‑board LED indicators for power status, signal channel condition and hardware fault alarm
6. Diagnostic Feature:Built‑in hardware self‑test circuit for real‑time board‑health monitoring
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Receive DC feedback signals from field equipment, complete filtering and conditioning, and transmit processed signals to the Series‑3 main control boards.
2. Process auxiliary control drive signals to support closed‑loop regulation of turbine excitation and related auxiliary control loops.
3. Isolate and suppress electrical noise interference inside turbine‑hall environment to improve stability of DC measurement and control signals.
4. Monitor hardware working state of circuit board and signal channels, report fault information and display status via on‑board LED indicators for on‑site inspection.
5. Provide reliable signal interconnection between external field devices and main controller boards inside the Series‑3 turbine control rack.
6. Serve as important auxiliary signal‑processing hardware for GE Series‑3 turbine control systems in power‑generation facilities.

Application Scenarios

1. Power‑plant gas‑turbine and steam‑turbine generator sets equipped with GE Series‑3 turbine control systems.
2. Spare auxiliary‑board replacement and routine maintenance of existing Series‑3 turbine control cabinets.
3. Technical renovation and control‑loop‑stability upgrade of aging legacy Series‑3 turbine automation control installations.
4. On‑site troubleshooting and replacement of faulty DC control auxiliary boards on continuously running turbine generation units.
5. Spare‑parts stocking for system integrators and power‑plant maintenance contractors supporting legacy GE Series‑3 hardware platforms.
6. Global aftermarket spare supply for technical teams maintaining obsolete GE Series‑3 series turbine‑control hardware.

FAQ

1. Q:Can 531X301DCCAFG2 work as standalone unit?
   A:It is an auxiliary circuit board, must cooperate with matched Series‑3 main control boards, standalone operation cannot complete control‑loop functions.
2. Q:What symptoms appear upon board failure?
   A:Abnormal DC feedback readings, auxiliary control‑loop instability, Series‑3 system hardware‑subsystem fault alarm may occur.

3. Q:How to complete configuration and diagnosis?
   A:Local status check via on‑board LED lights; fault‑information reading and system debugging are completed through Series‑3 system HMI and supporting configuration tools.
