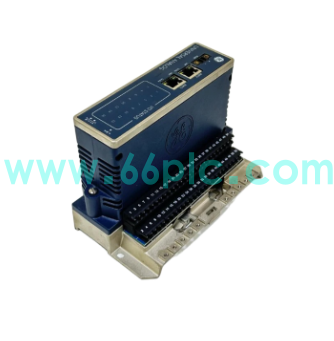

GE IS420PUAAH1A Process Unit Analog Adapter Module

The GE IS420PUAAH1A is a process unit analog adapter module for GE Speedtronic Mark VIe distributed control systems. It serves as signal interface adapter, converting and conditioning analog field signals for process‑unit controller processing. Installed within Mark VIe system rack, this module establishes reliable signal transmission link between field transmitters and main process‑unit controller for gas‑steam turbine and auxiliary‑process control in power‑generation plants.

This analog adapter module provides multi‑channel analog signal conditioning, surge suppression, hardware isolation and built‑in self‑diagnosis function. Front‑panel LED indicators reflect channel operating status and hardware fault conditions. It supports hot‑swap replacement under permitted operating conditions to reduce system maintenance downtime. Original production has been discontinued. It is widely supplied as aftermarket spare parts for Mark VIe cabinet maintenance and legacy power‑plant process‑control‑system retrofit projects.

Main Specifications

1. Brand:GE; Model:IS420PUAAH1A; Type:Process Unit Analog Adapter Module
2. Compatible Platform:GE Speedtronic Mark VIe distributed gas / steam turbine control system rack
3. Signal Type:Multi‑channel analog input signal conditioning for standard 4‑20mA field transmitter signals
4. Isolation Feature:Channel‑level electrical isolation and surge suppression for anti‑interference in high‑noise turbine‑hall environment
5. Hot‑Swap Support:Module supports hot‑swap replacement under allowable operating conditions for convenient maintenance
6. Diagnostic & Indicator:Front‑panel multi‑LED status indicators, integrated hardware self‑test and channel fault detection
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Receive analog measurement signals from field process transmitters, complete signal filtering, isolation and conditioning before sending data to process‑unit controller.
2. Suppress electromagnetic interference and surge noise from field equipment, improving stability and accuracy of analog acquisition data for process‑control calculation.
3. Detect channel‑level faults including signal over‑range, open‑circuit, short‑circuit and module hardware anomalies, and upload fault information to Mark VIe controller.
4. Support hot‑swap maintenance operation, realizing module replacement without full‑system shutdown and shortening equipment maintenance downtime.
5. Display real‑time channel running status and fault prompts via front‑panel LED indicators for fast on‑site inspection by maintenance technicians.
6. Serve as important analog signal‑interface hardware for GE Mark VIe turbine auxiliary‑process distributed‑control systems in power‑generation facilities.

Application Scenarios

1. Power‑plant gas‑turbine, steam‑turbine and combined‑cycle units adopting GE Speedtronic Mark VIe distributed process‑control systems.
2. Spare analog‑adapter‑module replacement and routine maintenance of existing Mark VIe process‑unit control racks inside power‑generation control cabinets.
3. Technical renovation and analog‑signal‑acquisition‑performance upgrade of aging legacy Mark VIe turbine automation control installations.
4. On‑site troubleshooting and replacement of faulty analog adapter modules on continuously running power‑generation equipment.
5. Spare‑parts stocking for system integrators and power‑plant maintenance contractors supporting legacy GE Mark VIe hardware platforms.
6. Global aftermarket spare supply for technical teams maintaining obsolete GE Mark VIe series turbine‑control hardware.

FAQ

1. Q:Can IS420PUAAH1A work as standalone unit?
   A:It must cooperate with matched Mark VIe process‑unit controller and field transmitters, standalone operation cannot complete analog‑acquisition functions.
2. Q:What symptoms appear upon module failure?
   A:Abnormal or lost analog measurement readings, channel open/short‑circuit alarms, Mark VIe process‑subsystem fault alarm may occur.

3. Q:How to complete configuration and diagnosis?
   A:Local status observation via front‑panel LED lights; parameter setup and fault‑log reading are completed through Mark VIe HMI and GE official configuration software.
