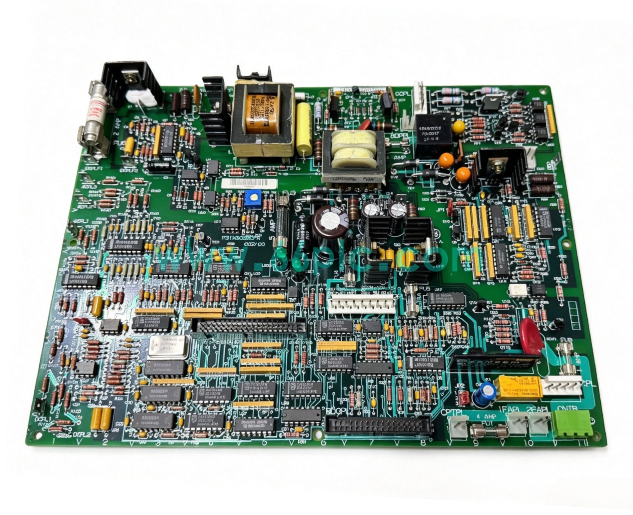

GE 531X303MCPBDG1 Motor Control Processor Auxiliary Board

The GE 531X303MCPBDG1 is a motor control processor auxiliary board used within GE Series‑3 turbine control systems. It undertakes signal conditioning and pre‑processing work for motor protection and auxiliary drive loop signals. Installed in Series‑3 control cabinet, it connects to MCP main processor board to expand signal input channels for gas‑steam turbine auxiliary‑equipment control in power‑generation plants.

This auxiliary board is equipped with signal filtering circuits, external field wiring terminals, inter‑board connectors and on‑board LED status indicators. It continuously detects channel faults such as open‑circuit and short‑circuit, and feeds fault information back to MCP main processor. Built‑in filter circuits reduce electromagnetic interference from turbine‑hall environment. Original production has been discontinued. It is widely supplied as aftermarket spare parts for Series‑3 cabinet maintenance and legacy power‑plant control‑system retrofit projects.

Main Specifications

1. Brand:GE; Model:531X303MCPBDG1; Type:Motor Control Processor Auxiliary Board
2. Compatible Platform:GE Series‑3 gas / steam turbine control system cabinet
3. Core Function:Motor‑related loop signal conditioning, field data pre‑processing and input‑channel expansion for MCP main board
4. Interface Resource:Field wiring terminals and dedicated inter‑board connectors for data interaction with main processor
5. Status Indicator:On‑board LED indicators for channel running status and hardware fault alarm feedback
6. Hardware Feature:On‑board filtering circuits for suppressing industrial electromagnetic interference signals
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Receive raw analog and discrete signals from field motor‑related equipment, complete signal filtering and conditioning processing.
2. Transmit pre‑processed field measurement data to matched MCP main processor board through inter‑board connectors for motor‑control‑logic calculation.
3. Expand input channel capacity of motor‑control subsystem without replacing main MCP processor hardware.
4. Detect channel‑level faults including open‑circuit and short‑circuit, upload fault events and display real‑time status via on‑board LED indicators for on‑site maintenance inspection.
5. Isolate and filter field interference noise to guarantee stable signal transmission for motor protection and auxiliary‑drive control loops.
6. Serve as key auxiliary signal‑processing hardware for GE Series‑3 turbine motor‑control and auxiliary‑equipment subsystems in power‑generation facilities.

Application Scenarios

1. Power‑plant gas‑turbine and steam‑turbine generator sets equipped with GE Series‑3 turbine control and motor‑protection systems.
2. Spare auxiliary‑board replacement and routine maintenance of existing Series‑3 MCP motor‑control subsystems inside turbine control cabinets.
3. Technical renovation and motor‑control‑channel expansion upgrade of aging legacy Series‑3 turbine automation control installations.
4. On‑site troubleshooting and replacement of faulty motor‑control auxiliary boards on continuously running turbine generation units.
5. Spare‑parts stocking for system integrators and power‑plant maintenance contractors supporting legacy GE Series‑3 hardware platforms.
6. Global aftermarket spare supply for technical teams maintaining obsolete GE Series‑3 turbine‑control hardware.

FAQ

1. Q:Can 531X303MCPBDG1 work as standalone unit?
   A:It is an auxiliary daughter board, must cooperate with Series‑3 MCP main processor board, standalone operation cannot realize motor‑control related functions.
2. Q:What symptoms appear upon board failure?
   A:Partial motor‑loop signal loss, abnormal measurement values, Series‑3 MCP subsystem fault alarm may occur.

3. Q:How to complete configuration and diagnosis?
   A:Check local hardware status via on‑board LED indicators; fault query and parameter debugging are completed through Series‑3 HMI and supporting configuration software.
