GE D20 EME210BASE‑T Ethernet Expansion Module

The GE D20 EME210BASE‑T is an energy‑management expansion module with integrated 10BASE‑T Ethernet interface for GE D20 substation automation controller systems. It combines power‑parameter measurement, energy accumulation and Ethernet communication functions, delivering electrical‑quantity data and metering records to remote SCADA host via 10Mbps twisted‑pair Ethernet for utility substation monitoring and data acquisition applications.

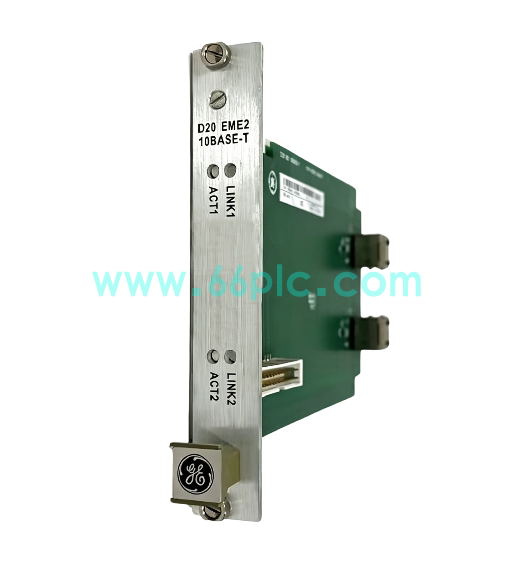

This plug‑in board mounts to D20 chassis backplane bus and works in coordination with D20 main CPU. The built‑in 10BASE‑T port enables direct Ethernet connection without additional external communication adapters. On‑board LEDs display network link status and module fault conditions. Original production has been discontinued. It is widely supplied as aftermarket spare parts for substation cabinet maintenance and legacy power‑automation system retrofit projects.

Main Specifications

1. Brand:GE; Model:D20 EME210BASE‑T; Type:Energy Management 10BASE‑T Ethernet Expansion Module
2. Compatible Platform:GE D20 substation controller chassis and internal backplane bus
3. Ethernet Interface:10BASE‑T 10Mbps twisted‑pair RJ45 port for substation LAN connection
4. Measurement Functions:Active/reactive power, apparent power, energy accumulation, power‑factor calculation
5. Internal Communication:Data exchange with D20 main CPU via chassis backplane bus
6. Diagnostic Feature:LED indicators for module status, Ethernet link activity and fault alarm feedback
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Calculate active power, reactive power, apparent power and power‑factor from voltage‑current sampling signals collected in substation field environment.
2. Perform energy accumulation and metering statistics, providing power‑consumption data for substation operation management and record‑keeping.
3. Transmit measured energy‑related data directly to upper‑level SCADA system through integrated 10BASE‑T Ethernet interface.
4. Detect module hardware health and Ethernet communication status, report fault events to D20 main CPU and trigger local LED alarm indication.
5. Integrate energy‑measurement and Ethernet communication into one single board, reducing requirement for extra external communication hardware inside control cabinet.
6. Serve as integrated energy‑measurement and network‑interface hardware for GE D20 substation automation systems in power‑utility facilities.

Application Scenarios

1. Power‑grid substations, industrial power houses and utility sites deployed with GE D20 substation automation controller hardware.
2. Spare module replacement and routine maintenance of existing D20 substation control cabinets requiring energy‑measurement over Ethernet.
3. Technical renovation and network‑function upgrade of aging legacy power‑substation automation control systems.
4. On‑site troubleshooting and replacement of faulty expansion modules on continuously running power‑utility substation equipment.
5. Spare‑parts stocking for system integrators and power‑utility maintenance contractors supporting legacy GE D20 hardware platforms.
6. Global aftermarket spare supply for technical teams maintaining obsolete GE D20 series substation control hardware.

FAQ

1. Q:Can GE D20 EME210BASE‑T run as standalone unit?
   A:It is an expansion daughter module, must be inserted into D20 chassis and cooperate with D20 main CPU controller; standalone operation is not supported.
2. Q:What are typical failure symptoms?
   A:Missing energy‑measurement data, abnormal computed power values, Ethernet link ｄｒｏｐ‑out and D20 system module fault alarm may appear.

3. Q:Which software is used for configuration?
   A:Parameter setup, network setting and data monitoring are completed with GE official D20 configuration tool together with main controller hardware.
