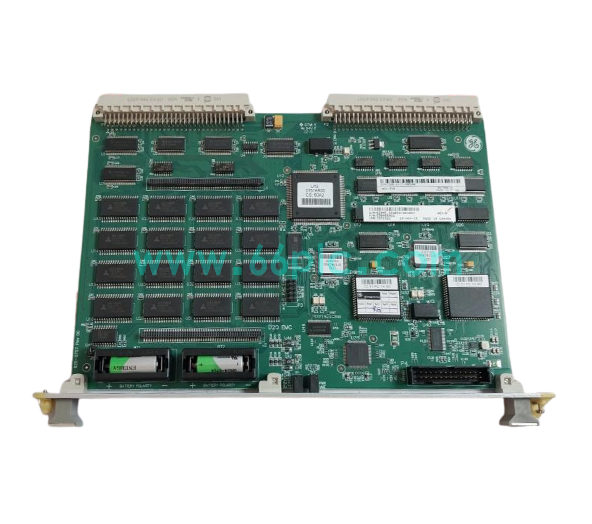

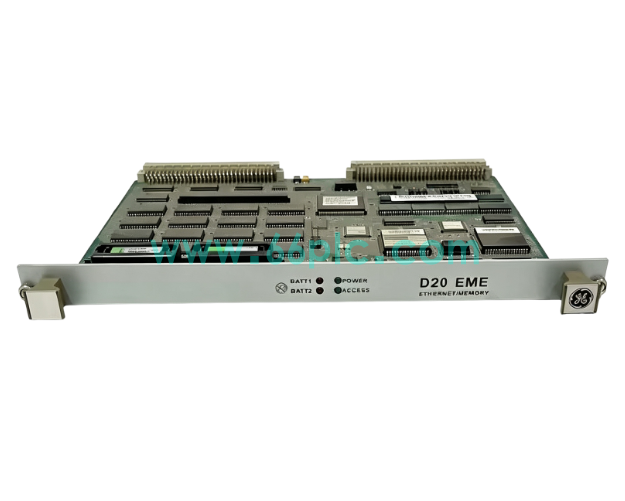

GE D20 EME 2400‑21004 Energy Management Expansion Module

The GE D20 EME 2400‑21004 is an energy management expansion module designed for GE D20 substation control and data acquisition systems. It undertakes high‑precision power parameter calculation and energy metering functions, processing voltage and current sampling data to compute active power, reactive power and accumulated energy values for power utility substation automation applications. The part number 2400‑21004 is the hardware reference identifier of this EME module.

This plug‑in module is mounted on the D20 chassis backplane bus and operates in coordination with the D20 main CPU. It uploads processed electrical measurement data to upper‑level SCADA systems for substation monitoring, energy statistics and power quality analysis. Original production has been discontinued. It is widely supplied as aftermarket spare parts for substation control cabinet maintenance and legacy power‑automation system retrofit projects.

Main Specifications

1. Brand:GE; Model:D20 EME, Part No:2400‑21004; Type:Energy Management Expansion Module
2. Compatible Platform:GE D20 substation controller chassis and internal backplane bus
3. Core Measurement:Active power, reactive power, apparent power, energy accumulation, power‑factor calculation
4. Internal Communication:Data interaction with D20 main CPU through chassis backplane bus
5. Power Supply:Module operating power is provided by D20 rack backplane
6. Diagnostic Feature:On‑board LED indicators for module running status and fault alarm feedback
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Calculate active power, reactive power, apparent power and power‑factor based on the voltage‑current sampling signals collected from substation field devices.
2. Complete energy accumulation and metering statistics, providing reliable energy consumption records for power‑substation operation management.
3. Transmit computed energy‑related measurement data to D20 main CPU, and upload to remote SCADA monitoring host through system communication channels.
4. Detect hardware operating status in real‑time, report fault information to main controller, and display working state via onboard LED indicators for on‑site maintenance.
5. Expand energy‑measurement processing capacity for D20 controller without modifying existing main‑controller hardware configuration.
6. Serve as dedicated energy‑measurement expansion hardware for GE D20 substation automation control systems in power‑utility sites.

Application Scenarios

1. Power‑grid substations, industrial power houses and utility facilities adopting GE D20 substation automation controller systems.
2. Spare energy‑management module replacement and routine maintenance of existing D20 substation control cabinets.
3. Technical renovation and energy‑measurement‑function upgrade of aging legacy power‑substation automation control systems.
4. On‑site troubleshooting and replacement of faulty expansion modules on continuously running power‑utility substation equipment.
5. Spare‑parts stocking for system integrators and power‑utility maintenance contractors supporting legacy GE D20 hardware platforms.
6. Global aftermarket spare supply for technical teams maintaining obsolete GE D20 series substation control hardware.

FAQ

1. Q:Can GE D20 EME 2400‑21004 work as standalone unit?
   A:It is an expansion daughter module, must be inserted into D20 chassis and cooperate with D20 main CPU controller, independent operation is not supported.
2. Q:What symptoms appear when module fails?
   A:Loss of energy‑measurement data, abnormal power‑quantity calculation values, D20 system module fault alarm may occur.

3. Q:What software is used for parameter configuration?
   A:Parameter setting and data monitoring need to cooperate with GE D20 official configuration tool together with main controller hardware.
