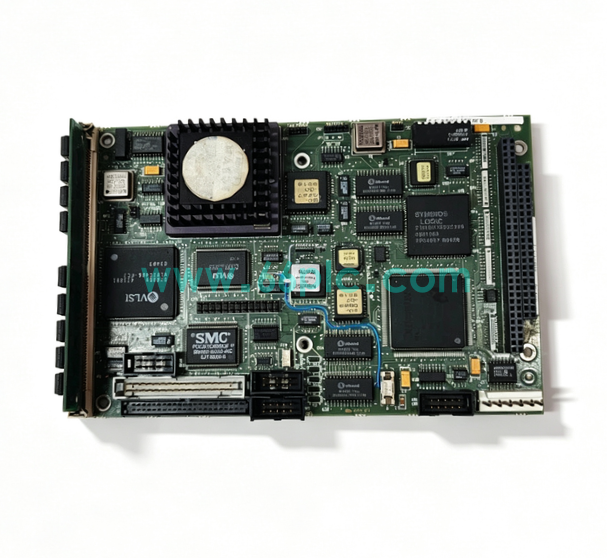

GE DS200UCPBG6AFB Universal Control Processor Board

The GE DS200UCPBG6AFB is a universal control processor (UCPB) I/O engine CPU board for GE Speedtronic Mark V turbine control systems. It serves as core processing unit for real‑time turbine control logic, executing governing algorithms, sequence control and interlock protection functions. Installed inside Mark V control rack, it exchanges high‑speed I/O data with other system boards via COREBUS backplane bus for gas‑steam turbine generator‑set control in power‑generation plants.

This processor board is equipped with onboard memory modules, PROM firmware storage, multiple communication interfaces and configurable DIP‑switch hardware settings. It supports ARCNET, RS‑232 serial communication for local HMI and remote SCADA connection. Built‑in self‑diagnostic circuits and LED indicators monitor hardware operating status. Original production has been discontinued. It is widely supplied as aftermarket spare parts for Mark V turbine cabinet maintenance and legacy power‑plant control‑system retrofit projects.

Main Specifications

1. Brand:GE; Model:DS200UCPBG6AFB; Type:Universal Control Processor I/O Engine CPU Board
2. Compatible Platform:GE Speedtronic Mark V gas / steam turbine control rack system
3. Processor:32‑bit real‑time processor optimized for turbine closed‑loop control tasks
4. Memory:SIMM DRAM expansion socket, PROM / EPROM for firmware and logic program storage
5. Communication Interfaces:Dual RS‑232 serial ports, ARCNET field‑bus interface, COREBUS backplane interface
6. Configuration & Diagnostic:DIP‑switch and jumper settings, multi‑LED status indicators, onboard hardware self‑test
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Execute real‑time turbine governing algorithms, startup‑shutdown sequence logic and safety interlock protection for gas‑steam turbine generator units.
2. Collect and process analog‑digital field I/O data, broadcast time‑critical control packets to other functional boards through COREBUS backplane bus.
3. Provide ARCNET and RS‑232 communication channels for data exchange with local operator HMI and remote plant SCADA monitoring host systems.
4. Support hardware‑level configuration via DIP switches and jumpers to set bus address, communication speed and operating mode parameters.
5. Carry out continuous onboard self‑diagnosis, record hardware fault events and display operating status via front‑panel LED indicators for maintenance inspection.
6. Serve as central computing core hardware for GE Mark V Speedtronic turbine control cabinets deployed in power‑generation facilities.

Application Scenarios

1. Power‑plant gas‑turbine and steam‑turbine generator sets equipped with GE Speedtronic Mark V turbine control systems.
2. Spare CPU‑processor‑board replacement and routine maintenance of existing Mark V turbine control cabinets.
3. Technical renovation and control‑hardware reliability upgrade of aging legacy Mark V turbine automation control systems.
4. On‑site troubleshooting and replacement of faulty processor boards on continuously running turbine generation units.
5. Spare‑parts stocking for system integrators and power‑plant maintenance contractors supporting GE Mark V hardware platforms.
6. Global aftermarket spare supply for technical teams maintaining obsolete GE Mark V series turbine‑control hardware.

FAQ

1. Q:Can DS200UCPBG6AFB run as standalone controller?
   A:It must be installed inside Mark V rack and cooperate with matched I/O and communication boards, standalone operation is not supported.
2. Q:What symptoms occur upon processor‑board failure?
   A:Turbine control‑logic abnormality, loss of I/O data, ARCNET / serial communication breakdown, system CPU‑fault alarm may appear.

3. Q:How to complete configuration and diagnosis?
   A:Hardware DIP‑switch setup on board, and logic download, fault log reading are completed through GE Mark V official configuration software.
