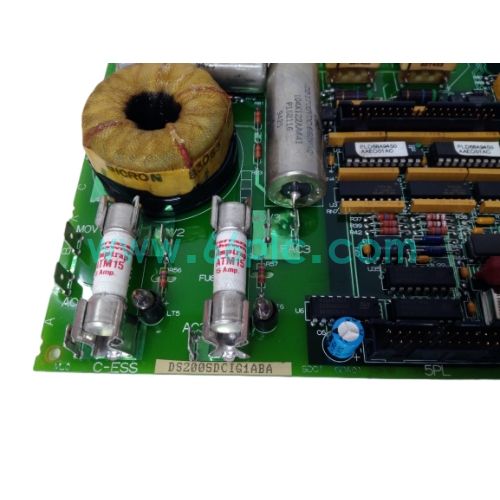

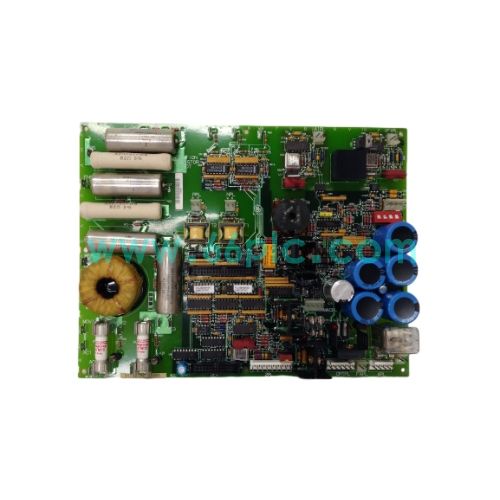

GE DS200SDCIG1ABA Instrumentation Board

The GE DS200SDCIG1ABA, known as the SDCI board, is a power supply and instrumentation board belonging to the DS200 series for GE Mark V Speedtronic turbine control racks. It supplies stable multi‑voltage control power and collects field instrument signals for turbine monitoring and protection logic.

This plug‑in rack‑mounted PCB is fitted with fuses, test points, configurable jumpers and LED diagnostic indicators. Original production has been discontinued. It is widely stocked as aftermarket spare parts for power plant gas and steam turbine cabinet maintenance and technical retrofitting.

Main Specifications

1. Brand: General Electric; Model:DS200SDCIG1ABA; Type:SDCI Power Supply and Instrumentation Board
2. Applicable System:GE Mark V Speedtronic turbine control system, DS200 series rack backplane
3. Power Function:Converts AC input into multiple regulated DC voltages for rack control circuits
4. On‑board Components:Protective fuses, test points, jumpers and status LED diagnostic lights
5. Installation:Plug‑in design, directly inserted into dedicated slots of GE DS200 control rack
6. Operating Temperature:‑40℃ ~ +70℃, adaptable to harsh power‑plant environments
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Provide stable multi‑channel DC power for the turbine main control and signal acquisition boards.
2. Receive instrument analog and discrete signals and transmit conditioned data to the main processor.
3. Built‑in fuse and overvoltage protection to prevent cascading damage to rack hardware.
4. LED indicators and test points support rapid on‑site inspection and fault location.
5. Realize signal conditioning for field transmitters, valves and safety interlock equipment.
6. Act as the power and signal front‑end unit of GE Mark V turbine control cabinet.

Application Scenarios

1. Power supply and instrument signal processing for gas/steam turbine control systems in power stations.
2. Spare board replacement and routine maintenance of GE Mark V and DS200 series control racks.
3. Automation renovation and reliability upgrade of legacy power plant turbine control cabinets.
4. On‑site troubleshooting and replacement of faulty SDCI boards on running turbine units.
5. Spare‑parts stocking for system integrators and power plant automation maintenance contractors.
6. Global aftermarket spare supply for technicians maintaining obsolete GE Speedtronic hardware.

FAQ

1. Q:What does SDCI stand for?
   A:SDCI means power supply and instrumentation board, integrating power generation and signal conditioning functions.
2. Q:Which control rack is this board compatible with?
   A:It is specially designed for GE Mark V Speedtronic and DS200 series turbine control racks.

3. Q:Is this board still in original production?
   A:GE has stopped manufacturing this model, only tested surplus and refurbished spare units are available.
