GE DS200DMCBG1AED DMCB Digital Motor Control Board

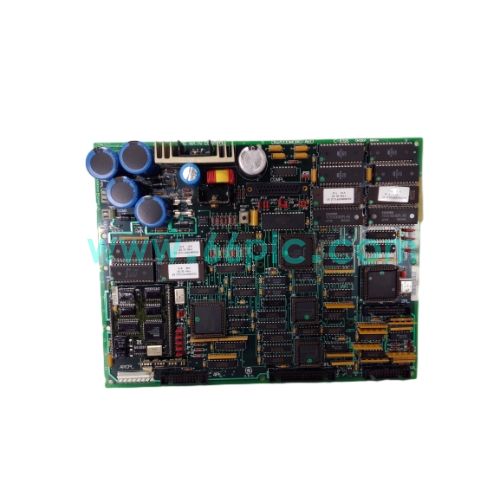

The GE DS200DMCBG1AED (DMCB board) is a digital motor control board of the DS200 series, applied to GE Mark V Speedtronic turbine control racks. It executes digital control algorithms, processes feedback signals and outputs control commands for turbine and drive regulation.

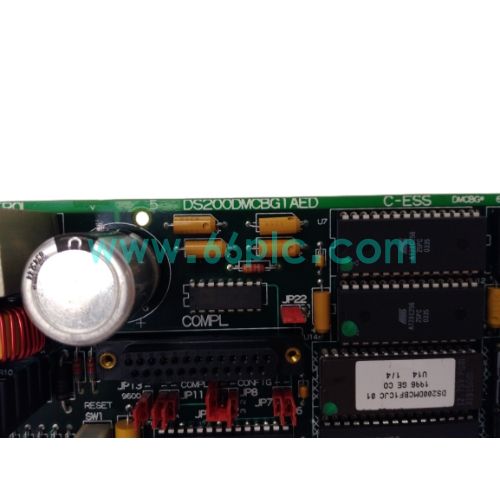

This plug‑in rack PCB is equipped with multiple signal connectors, on‑board diagnostic LEDs and configurable jumpers. Original production has been discontinued. It serves as aftermarket spare parts for overhaul and retrofitting of power station gas and steam turbine control cabinets.

Main Specifications

1. Brand: General Electric; Model:DS200DMCBG1AED; Type:DMCB Digital Motor Control Board
2. Applicable System:GE Mark V Speedtronic turbine control system, DS200 rack backplane
3. Signal Interface:Analog feedback channels, digital input/output and serial communication ports
4. On‑board Parts:Status LED indicators, configurable jumpers and multi‑pin terminal connectors
5. Installation:Plug‑in structure, installed in dedicated slots of GE DS200 control rack
6. Operating Temperature:‑40℃ ~ +70℃, suitable for harsh power‑plant working environments
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Run closed‑loop speed and load control algorithms for gas and steam turbine units.
2. Receive analog and digital feedback signals and calculate real‑time control outputs.
3. Communicate with power boards and signal conditioning boards to coordinate rack operation.
4. Onboard self‑diagnosis and LED alarm indication for rapid fault identification.
5. Output drive control signals to actuators, valves and auxiliary field equipment.
6. Work as the core digital processing unit of GE Mark V turbine control system.

Application Scenarios

1. Core control hardware for gas/steam turbine control systems in thermal power plants.
2. Spare board replacement and routine maintenance of GE Mark V and DS200 series racks.
3. Technical renovation and reliability upgrade of legacy power plant turbine control cabinets.
4. On‑site troubleshooting and replacement of faulty DMCB boards on running turbine units.
5. Spare‑parts stocking for system integrators and power plant automation maintenance contractors.
6. Global aftermarket spare supply for technicians maintaining obsolete GE Speedtronic hardware.

FAQ

1. Q:What does DMCB stand for?
   A:DMCB refers to Digital Motor Control Board, the main processing board for turbine regulation.
2. Q:Which control rack does this board fit?
   A:It is designed for GE Mark V Speedtronic and DS200 series turbine control racks.

3. Q:Is this board still in original production?
   A:GE has stopped manufacturing this model, only tested surplus and refurbished spare units are available.
