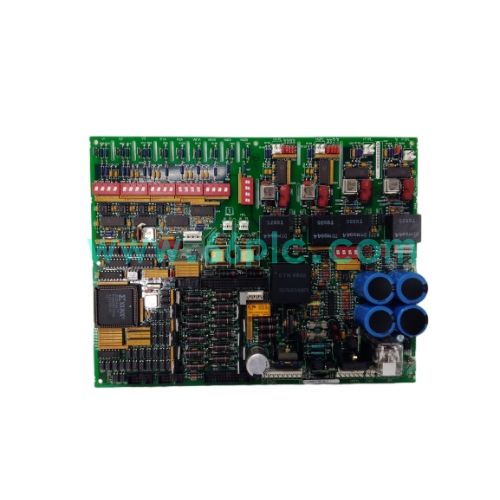

GE DS200DCFBG1BLC DC Feedback Power Supply Board

The GE DS200DCFBG1BLC is a DC feedback power supply board (DCFB board) for GE Mark V Speedtronic turbine control systems and DS200 series drive racks. It converts alternating current into multiple groups of stable direct‑current power and collects voltage and current feedback signals for closed‑loop regulation.

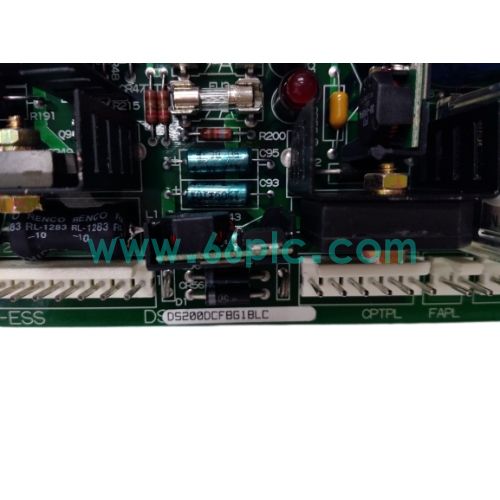

This plug‑in printed circuit board is fitted with protective fuses, jumpers, test points and LED diagnostic lamps. Original production has been discontinued. It is widely supplied as aftermarket spare parts for overhaul and technical upgrading of power plant turbine control cabinets.

Main Specifications

1. Brand: General Electric; Model:DS200DCFBG1BLC; Type:DC Feedback Power Supply Board(DCFB)
2. Applicable System:GE Mark V Speedtronic, DS200 series turbine and drive control racks
3. Power Conversion:AC input converted to +5V, ±15V, 24VDC stabilized control power
4. On‑board Parts:Protective fuses, configurable jumpers, test points and status LED indicators
5. Installation:Plug‑in structure, installed in dedicated slots of GE DS200 rack
6. Operating Temperature:‑40℃ ~ +70℃, suitable for harsh power‑plant working conditions
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Provide multi‑channel regulated DC power for main control boards and signal acquisition boards.
2. Real‑time collect power voltage and current feedback and transmit data to the main processor.
3. Integrate over‑voltage and over‑current protection to prevent secondary damage to rack hardware.
4. LED indicators and test points support quick on‑site inspection and fault location.
5. Distribute auxiliary power for cabinet fans and local auxiliary field components.
6. Work as the power distribution and feedback monitoring unit of GE turbine control system.

Application Scenarios

1. Power supply and feedback monitoring for gas and steam turbine control systems in power stations.
2. Spare board replacement and daily maintenance of GE Mark V and DS200 series racks.
3. Automation renovation and reliability improvement of old‑generation turbine control cabinets.
4. On‑site troubleshooting and replacement of faulty DCFB boards on running turbine units.
5. Spare‑parts stocking for system integrators and power plant maintenance contractors.
6. Global aftermarket spare supply for technicians maintaining obsolete GE Speedtronic hardware.

FAQ

1. Q:What does DCFB stand for?
   A:DCFB is short for DC Feedback Board, integrating power supply and feedback signal acquisition.
2. Q:Which control racks is this board compatible with?
   A:It is designed for GE Mark V Speedtronic and DS200 series turbine control racks.

3. Q:Is this board still in original production?
   A:GE has stopped manufacturing this model, only tested surplus and refurbished spare units are available.
