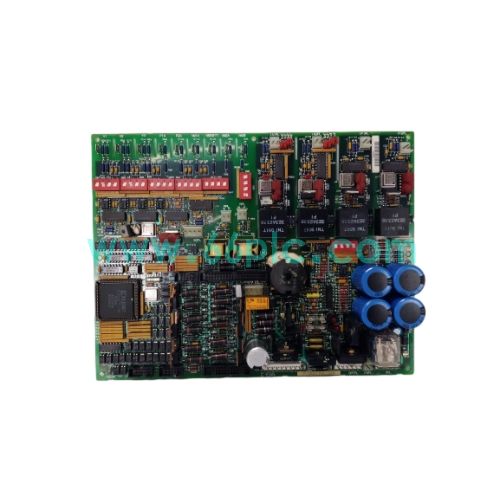

GE DS200DCFBG1BJB DC Feedback Power Supply Board

The GE DS200DCFBG1BJB, also known as DCFB board, is a DC feedback power supply board designed for GE Mark V Speedtronic turbine control and 2000‑series drive systems. It converts AC input into multiple regulated DC voltages and collects power feedback signals for drive closed‑loop control.

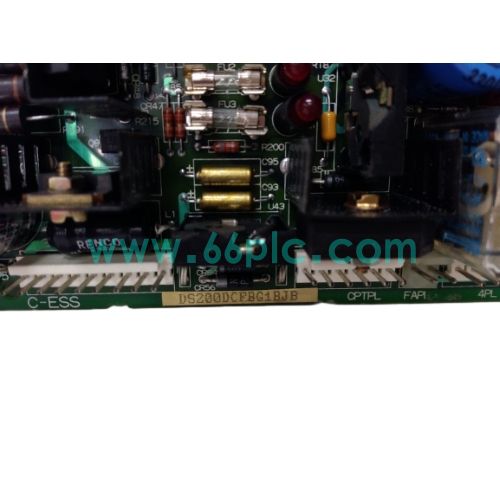

This plug‑in rack PCB is equipped with DIP switches, fuses, LED indicators and multiple connectors. Original production has been discontinued. It is widely stocked as aftermarket spare parts for power plant turbine and heavy‑duty drive cabinet maintenance and retrofitting.

Main Specifications

1. Brand: General Electric; Model:DS200DCFBG1BJB; Type:DC Feedback Power Supply Board(DCFB)
2. Applicable System:Mark V Speedtronic,AC2000,DC2000,EX2000 series drive racks
3. Input:38VAC /115VAC from control power transformer; Output:+5V,±15V,24VDC control power
4. On‑board Components:DIP switches,configurable jumpers,protective fuses and status LED indicators
5. Installation:Plug‑in design,directly fitted into standard GE DS200 rack slots
6. Operating Temperature:‑40℃ ~ +70℃,adaptable to harsh power‑plant environments
7. Supply Status:Original production discontinued,supplied as tested surplus or refurbished spare parts

Core Functions

1. Generate stable multi‑channel regulated DC power for the drive main control and signal boards.
2. Monitor power voltage and current feedback and transmit data to main processor boards.
3. Built‑in fuse and overvoltage/overcurrent protection to avoid damage to downstream hardware.
4. LED diagnostic indicators and test points simplify on‑site inspection and fault troubleshooting.
5. Provide 115VAC power for cabinet cooling fans and auxiliary field equipment.
6. Act as the power distribution and feedback monitoring core of GE turbine and large drive systems.

Application Scenarios

1. Power supply and feedback control for gas/steam turbine control systems in power stations.
2. Spare board replacement and routine maintenance of GE Mark V and 2000 series drive racks.
3. Technical renovation and reliability upgrade of legacy large‑capacity DC and AC drive cabinets.
4. On‑site troubleshooting and replacement of faulty power feedback boards on running turbine units.
5. Spare‑parts stocking for system integrators and power plant automation maintenance contractors.
6. Global aftermarket spare supply for technicians maintaining obsolete GE Speedtronic and drive hardware.

FAQ

1. Q:What does DCFB stand for?
   A:DCFB means DC Feedback Board,it combines power supply and feedback signal monitoring functions.
2. Q:Which systems can this board work with?
   A:It matches GE Mark V Speedtronic,AC2000,DC2000 and EX2000 series control racks.

3. Q:Is this board still in original production?
   A:GE has stopped manufacturing this model,only tested surplus and refurbished spare units are available.
