GE 531X304IBDASG1 F31X304IBDAMG1‑00609 Isolated Digital Input Board

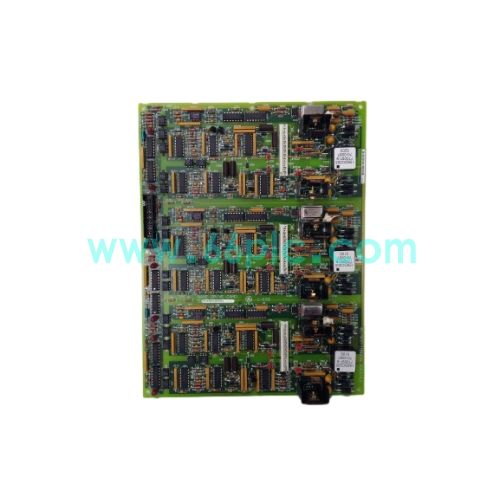

The GE 531X304IBDASG1 with spare part number F31X304IBDAMG1‑00609 is an isolated digital input board in the GE 531X series, designed for GE DC‑300 variable‑speed drive racks. It gathers field discrete switching signals and transfers isolated digital data to the main processor for interlock and logic control.

This plug‑in printed circuit board adopts galvanic isolation to filter field interference and is fitted with channel LED status indicators for easy inspection. Original production has been discontinued, and it is widely used as aftermarket spare parts for maintenance and technical retrofitting of legacy drive cabinets in metallurgy, papermaking and textile industries.

Main Specifications

1. Brand: General Electric; Model:531X304IBDASG1, spare No.F31X304IBDAMG1‑00609; Type:Isolated Digital Input Board
2. Applicable System:GE DC‑300 series DC variable speed drive rack,531X chassis system
3. Anti‑interference Design:Galvanic isolation between field wiring and internal control circuit
4. Status Indication:Independent LED lamps showing real‑time signal status of each channel
5. Installation:Plug‑in structure, installed in dedicated slots of GE drive rack
6. Cooling Mode:Natural convection cooling
7. Operating Temperature:‑20℃ ~ +55℃, suitable for industrial control cabinet environment
8. Supply Status:Discontinued original production, available as tested surplus or refurbished spare parts

Core Functions

1. Collect discrete digital switch signals from field sensors, limit switches and safety interlock devices.
2. Provide electrical isolation to block surge noise and ground‑loop interference and protect the main control board.
3. Convert on‑site raw switch signals into standard digital data and send them to the motor control processor board.
4. Display channel working status through onboard LEDs to simplify daily inspection and fault diagnosis.
5. Transmit safety interlock and fault feedback signals to realize the whole drive’s protection logic.
6. Work as the front‑end digital signal acquisition unit of GE DC‑300 drive control system.

Application Scenarios

1. Digital signal acquisition and safety interlock control for DC‑300 drives on rolling mills and paper machines.
2. Spare board replacement and routine maintenance of GE 531X series variable‑speed drive racks.
3. Automation upgrading and anti‑interference reconstruction of old GE DC speed regulation cabinets.
4. On‑site troubleshooting and faulty isolated input board replacement projects.
5. Spare‑parts stocking for system integrators and industrial drive maintenance contractors.
6. Global aftermarket spare supply for technicians maintaining obsolete GE DC drive hardware.

FAQ

1. Q: What is the relation between 531X304IBDASG1 and F31X304IBDAMG1‑00609?
   A: F31X304IBDAMG1‑00609 is the spare replacement part number for 531X304IBDASG1.
2. Q: What is the outstanding advantage of this board?
   A: Galvanic isolation design effectively eliminates common‑mode interference brought by long‑distance field cables.

3. Q: Is the original board still in production?
   A: Original manufacturing has been stopped, only tested surplus and refurbished spare units are available on the aftermarket.
