GE 531X303MCPBDG1 F31X303MCPA00300 Motor Control Processor Board

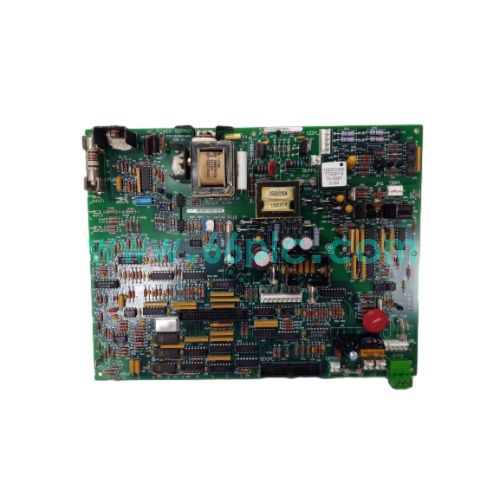

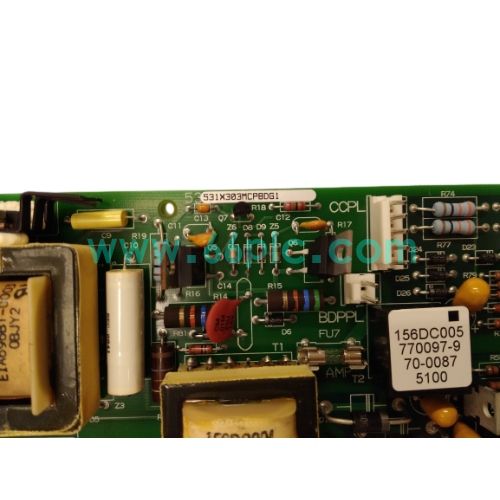

The GE 531X303MCPBDG1 with spare part number F31X303MCPA00300 is a motor control processor board of GE 531X series, specially developed for GE DC‑300 DC variable‑speed drive racks. It serves as the main control core to process motor feedback signals and implement closed‑loop speed and torque regulation.

This plug‑in printed circuit board is equipped with multiple analog and digital interfaces and onboard LED diagnostic indicators. Original production has been discontinued. It is widely used as aftermarket spare parts for overhaul and technical transformation of old drive equipment in metallurgy, papermaking and printing industries.

Main Specifications

1. Brand: General Electric; Model:531X303MCPBDG1, spare No.F31X303MCPA00300; Type:Motor Control Processor Board
2. Applicable System:GE DC‑300 series DC variable speed drive rack,531X chassis system
3. Signal Ports:Analog speed/current feedback channels, digital input and output control interfaces
4. On‑board Indicators:LED lights for power status, running state and fault alarm prompt
5. Installation:Plug‑in design, directly inserted into the dedicated slot of GE drive rack
6. Cooling Method:Natural convection cooling with built‑in heat dissipation devices
7. Operating Temperature:‑20℃ ~ +55℃, suitable for industrial control cabinet environment
8. Supply Status:Discontinued original production, available as tested surplus or refurbished spare parts

Core Functions

1. Execute closed‑loop speed and torque control algorithms for DC motors of DC‑300 drives.
2. Real‑time acquisition of motor current and speed feedback signals to calculate control outputs.
3. Complete data interaction with power boards and signal boards to coordinate overall drive operation.
4. Monitor operating anomalies and output fault alarm signals for quick maintenance troubleshooting.
5. Save motor operating parameters to maintain stable driving performance after replacement.
6. Work as the central processing control unit of the traditional GE DC speed regulating system.

Application Scenarios

1. Core control unit for DC‑300 drives in metallurgical rolling, paper and printing production lines.
2. Spare board replacement and daily maintenance of GE 531X series variable‑speed drive racks.
3. Automation upgrading and reliability reconstruction of legacy GE DC speed regulation control cabinets.
4. On‑site troubleshooting and faulty processor board replacement projects.
5. Spare‑parts stocking for system integrators and industrial drive maintenance contractors.
6. Global aftermarket spare supply for technicians maintaining obsolete GE DC drive hardware.

FAQ

1. Q: What is the relationship between 531X303MCPBDG1 and F31X303MCPA00300?
   A: F31X303MCPA00300 is the spare replacement part number of 531X303MCPBDG1.
2. Q: Which drive equipment does this board match?
   A: It is specially designed for GE DC‑300 series DC variable‑speed drive racks.

3. Q: Is this original board still produced?
   A: Original manufacturing has been stopped, only tested surplus and refurbished spare units are available on the aftermarket.
