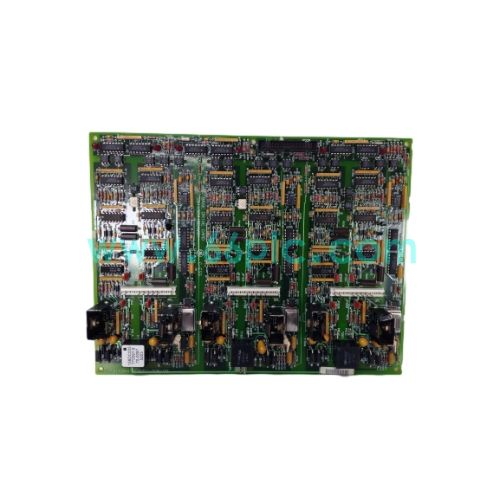

GE 531X304IBDAMG1 F31X304IBDAMG1‑00609 Isolated Input/Digital Board

The GE 531X304IBDAMG1 with spare part number F31X304IBDAMG1‑00609 belongs to GE 531X series isolated digital input board, used for GE DC‑300 variable‑speed drive systems. It receives external discrete switching signals and transmits isolated digital data to the main processor board.

This plug‑in PCB adopts galvanic isolation design to suppress field electrical interference, and it is fitted with LED status indicators for each channel. Original production has been discontinued, and it serves as aftermarket spare parts for maintenance and retrofitting of legacy drive cabinets in metallurgy and papermaking plants.

Main Specifications

1. Brand: General Electric; Model:531X304IBDAMG1, spare No.F31X304IBDAMG1‑00609; Type:Isolated Digital Input Board
2. Applicable System:GE DC‑300 series DC variable speed drive rack,531X chassis
3. Design Feature:Galvanic isolation between field side and control circuit for noise rejection
4. Channel Indication:Individual LED lamps to display channel signal status
5. Installation:Plug‑in type, installed on dedicated slots of GE drive rack
6. Cooling Mode:Natural convection cooling
7. Operating Temperature:‑20℃ ~ +55℃, industrial cabinet environment
8. Supply Status:Discontinued original production, supplied as tested surplus or refurbished spare parts

Core Functions

1. Collect discrete digital switch signals from field sensors, relays and interlock devices.
2. Provide electrical isolation to prevent field surge and common‑mode interference from damaging mainboard.
3. Convert raw field signals into standard digital data for the motor control processor board.
4. Real‑time channel status visualization via onboard LED indicators for quick inspection.
5. Transmit interlock and fault status signals to implement drive safety logic control.
6. Act as the digital signal front‑end acquisition unit of GE DC‑300 drive control system.

Application Scenarios

1. Digital signal acquisition and interlock control for DC‑300 drives on rolling mills and paper machines.
2. Spare board replacement and routine maintenance of GE 531X series variable‑speed drive racks.
3. Automation upgrade and anti‑interference reconstruction of old GE DC speed regulation cabinets.
4. On‑site troubleshooting and faulty isolated input board replacement projects.
5. Spare‑parts stocking for system integrators and industrial drive maintenance contractors.
6. Global aftermarket spare supply for technicians maintaining obsolete GE DC drive hardware.

FAQ

1. Q: What is the relation between 531X304IBDAMG1 and F31X304IBDAMG1‑00609?
   A: F31X304IBDAMG1‑00609 is the spare replacement part number for 531X304IBDAMG1.
2. Q: What is the main advantage of this board?
   A: It adopts isolation circuit to effectively eliminate ground loop and electromagnetic interference from field wiring.

3. Q: Is the original board still in production?
   A: Original manufacturing has been stopped, only tested surplus and refurbished spare units are available on the aftermarket.
