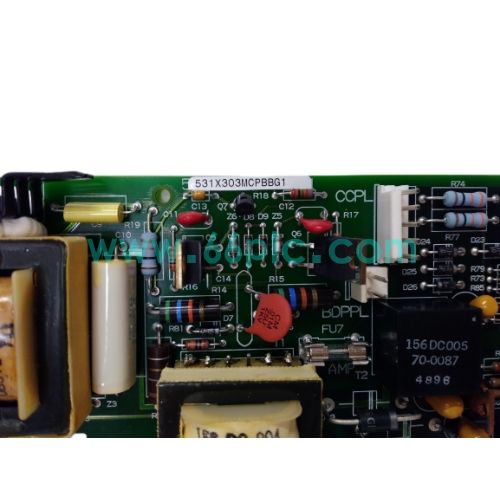

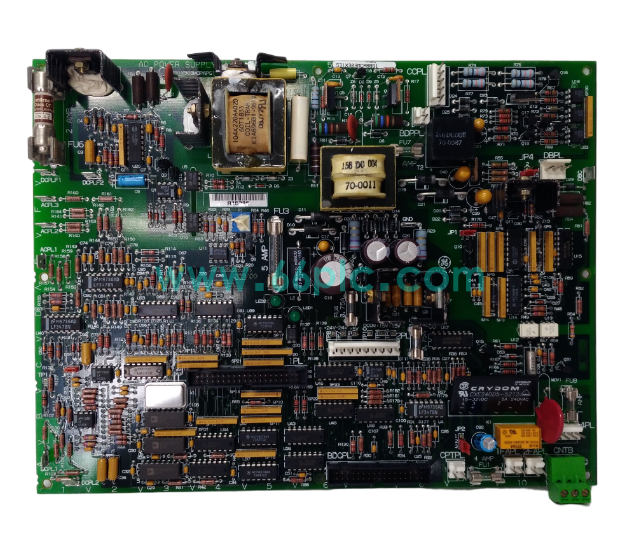

GE 531X303MCPBBG1 F31X303MCPAPG100600 Processor Board

The GE 531X303MCPBBG1 with spare part number F31X303MCPAPG100600 is a motor control processor board belonging to GE 531X series, designed for GE DC‑300 variable‑speed drive systems. It executes core motor control algorithms and processes feedback signals to realize stable speed and torque regulation.

This plug‑in PCB board is equipped with multiple interfaces and status LED indicators. The original production has been discontinued. It is widely supplied as aftermarket spare parts for maintenance, repair and technical renovation of legacy DC drive cabinets in metallurgy, paper‑making and textile plants.

Main Specifications

1. Brand: General Electric; Model:531X303MCPBBG1, spare No.F31X303MCPAPG100600; Type:Motor Control Processor Board
2. Applicable System:GE DC‑300 series DC variable speed drive rack,531X chassis
3. Signal Interface:Analog speed feedback, current feedback and digital I/O control ports
4. On‑board Indicators:LED status lamps for power, running and fault alarm display
5. Installation Method:Plug‑in type, installed in dedicated GE drive rack slots
6. Cooling Mode:Natural convection cooling with on‑board heat dissipation components
7. Operating Temperature:‑20℃ ~ +55℃, suitable for industrial control cabinet environment
8. Feature:Discontinued original production, supplied as tested surplus or refurbished spare parts

Core Functions

1. Run closed‑loop speed and torque control algorithms for DC motors in DC‑300 drives.
2. Collect current and speed feedback signals and calculate control output in real time.
3. Communicate with power and auxiliary boards to coordinate the whole drive operation.
4. Detect drive abnormal states and output fault alarm signals for maintenance diagnosis.
5. Store basic motor parameters to ensure consistent performance after spare board replacement.
6. Act as the core control unit of the legacy GE DC variable‑speed drive system.

Application Scenarios

1. Core control for DC‑300 drives on metallurgical rolling, paper and textile production lines.
2. Spare board replacement and routine maintenance of GE 531X series drive racks.
3. Automation upgrade and reliability reconstruction of old GE DC speed regulation cabinets.
4. On‑site troubleshooting and faulty processor board replacement projects.
5. Spare‑parts stocking for system integrators and industrial drive maintenance contractors.
6. Global aftermarket spare supply for technicians maintaining obsolete GE DC drive hardware.

FAQ

1. Q: What is the relationship between 531X303MCPBBG1 and F31X303MCPAPG100600?
   A: F31X303MCPAPG100600 is the spare replacement part number for 531X303MCPBBG1.
2. Q: Which drive system is this board used for?
   A: It is designed exclusively for GE DC‑300 series DC variable‑speed drive racks.

3. Q: Is the original board still in production?
   A: Original manufacturing has been stopped, only tested surplus and refurbished spare units are available on the aftermarket.
