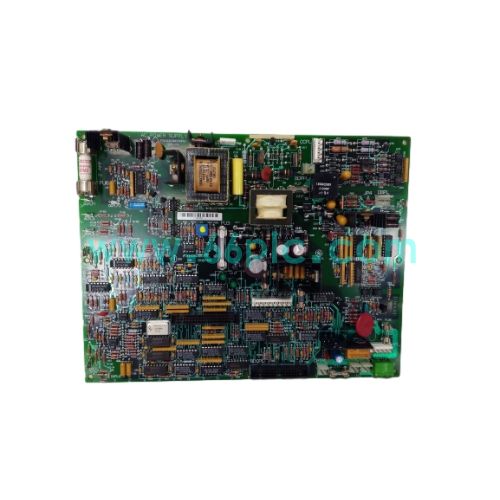

GE 531X303MCPARG1 F31X303MCPAPG100600 Power Supply Control Board

The GE 531X303MCPARG1, spare part code F31X303MCPAPG100600, is an AC power supply and control board of GE 531X series, designed for GE DC‑300 variable speed drive racks. It supplies stable regulated power to drive control circuits and realizes drive power monitoring and fault detection.

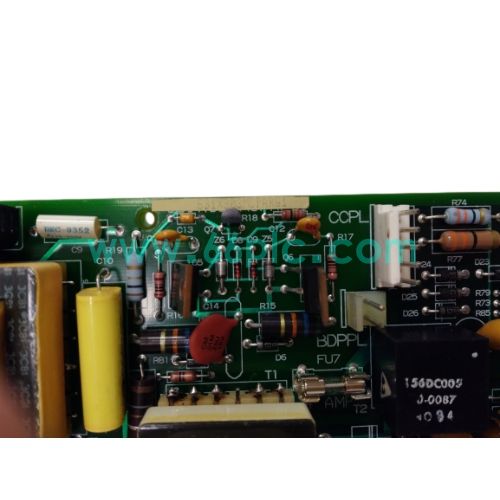

This legacy plug‑in printed circuit board is fitted with multiple connectors, fuses, heat sinks and status LED indicators. Original production has been discontinued, and it is widely available as aftermarket spare parts for maintenance and renovation of old metallurgy and paper‑making drive systems.

Main Specifications

1. Brand: General Electric; Model:531X303MCPARG1, spare No.F31X303MCPAPG100600; Type:AC Power Control Board
2. Applicable System:GE DC‑300 series DC variable speed drive rack, 531X series chassis
3. Input Voltage:85‑264VAC wide input range, 47‑63Hz industrial frequency
4. Protection Components:2A and 5A fuses, MOV over‑voltage surge protection circuit
5. Connectors:Multiple plug‑in terminal connectors, on‑board LED running and fault indicators
6. Cooling Structure:Onboard heat sinks for high‑power device heat dissipation
7. Operating Temperature:‑20℃ ~ +55℃, suitable for industrial cabinet installation
8. Installation:Plug‑in mounting inside GE dedicated drive rack, standard board size

Core Functions

1. Convert alternating current into multiple groups of stable DC power for the drive control motherboard.
2. Real‑time monitoring of power supply voltage and current with overvoltage and overcurrent protection.
3. Provide hardware fault alarm signals and LED status indication for drive maintenance diagnosis.
4. Coordinate with main control boards to realize stable operation of DC speed regulating units.
5. Suppress industrial surge interference and improve anti‑interference ability of the whole drive system.
6. Act as an indispensable power source for the whole control loop of legacy GE DC drives.

Application Scenarios

1. Power supply control for DC‑300 drives used in metallurgical rolling, paper and textile production lines.
2. Spare board replacement and routine maintenance of GE 531X series variable speed drive racks.
3. Automation upgrading and reliability reconstruction of old GE DC speed regulation control cabinets.
4. On‑site troubleshooting and faulty power control board replacement projects.
5. Spare‑parts stocking for system integrators and industrial drive maintenance contractors.
6. Global aftermarket spare supply for technicians maintaining obsolete GE DC drive hardware.

FAQ

1. Q: What does F31X303MCPAPG100600 stand for?
   A: It is the spare replacement part number of 531X303MCPARG1, they belong to the same board.
2. Q: Which drive equipment is this board compatible with?
   A: It is specially matched with GE DC‑300 series DC variable speed drive systems.

3. Q: Is this board still in original production?
   A: The original production has been discontinued, only tested surplus and refurbished spare units are available.
