Product Description

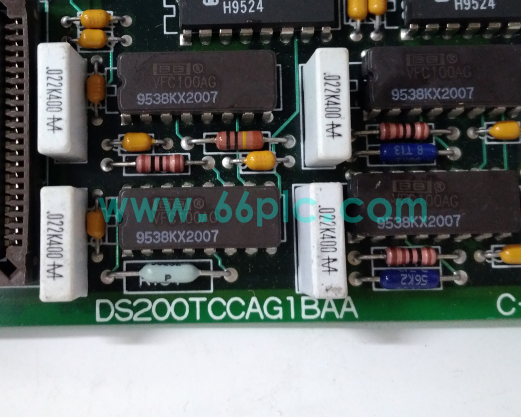

The GE DS200TCCAG1BAA is a high-performance common analog I/O control board exclusively designed for GE Speedtronic Mark V turbine control systems. As a core analog signal processing unit, it undertakes high-precision acquisition, conversion and output control of on-site temperature, pressure, flow and vibration analog signals, realizing stable signal docking and closed-loop regulation between field transmitters and the main control system.

Adopting industrial 80196 microprocessor architecture and 10kHz high-speed sampling technology, this module is equipped with 1MB flash memory and 64KB RAM for efficient data processing. It integrates signal filtering, analog-to-digital conversion and fault self-diagnosis functions, with built-in electromagnetic shielding and surge protection circuits. Featuring outstanding environmental adaptability, it ensures low-noise and high-stability analog data operation for long-term turbine system full-load working conditions.

Main Specifications

1. Full Model: DS200TCCAG1BAA; Product Type: Industrial common analog I/O signal processing control board
2. Applicable System: GE Speedtronic Mark V turbine control system and TC2000 drive control platform
3. Core Function: Analog signal high-speed sampling, AD conversion, data processing and analog output control
4. Processing Chip: Built-in 80196 dedicated industrial microprocessor for fast logic operation
5. Sampling Performance: Up to 10kHz high-speed sampling rate to ensure real-time signal capture
6. Memory Configuration: 1MB Flash storage and 64KB RAM for stable data caching and program operation
7. Communication Interface: Equipped with standard RS-232 communication port and 50-pin docking connector
8. Power Specification: 12V DC stable power supply design with low power consumption and high anti-fluctuation capability
9. Circuit Design: Full-channel signal filtering and surge protection to suppress industrial electromagnetic interference
10. Reliability: Industrial power grade certification, supporting 24/7 uninterrupted turbine control system operation

Core Functions

1. Serves as the universal analog signal processing core for GE Speedtronic Mark V turbine systems.
2. Performs high-speed sampling and accurate conversion of various field analog process signals.
3. Collects real-time operating parameters such as turbine temperature, pressure, flow and vibration.
4. Converts analog field signals into digital data for main controller logic calculation and judgment.
5. Outputs standard analog control signals to drive field actuators and regulating components.
6. Filters and purifies messy industrial signals to eliminate noise interference and data distortion.
7. Supports RS-232 local debugging and data uploading for convenient system maintenance.
8. Implements real-time fault self-diagnosis to quickly locate analog loop abnormal conditions.
9. Maintains high-precision signal processing stability under harsh turbine hall environments.
10. Guarantees closed-loop control accuracy and operational stability of turbine process parameters.

Application Scenarios

1. Thermal power plant GE Mark V steam turbine analog parameter acquisition and control platforms
2. Industrial gas turbine unit high-speed analog signal sampling and data processing systems
3. Power plant TC2000 drive system signal docking and analog regulation supporting projects
4. Petrochemical waste heat power generation turbine process parameter monitoring control scenarios
5. Large generating set vibration and temperature real-time monitoring and feedback systems
6. Turbine hall strong electromagnetic interference environment high-precision signal processing scenarios
7. Old GE Speedtronic Mark V system analog control board replacement and performance upgrading
8. Industrial turbine closed-loop regulation system analog signal stable transmission guarantee platforms
9. Power generation automation multi-parameter synchronous acquisition and intelligent control systems
10. Energy industry Mark V turbine core analog control loop high-reliability operation scenarios
