Product Description

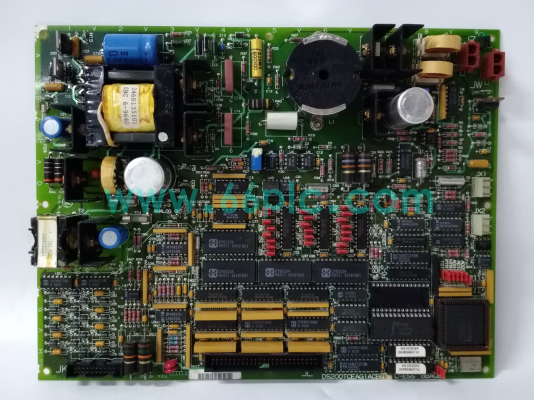

The GE DS200TCEAG1ACB is a dedicated emergency overspeed protection board designed for GE Speedtronic Mark V turbine control systems. As a core safety protection component, it undertakes real-time turbine speed monitoring, overspeed judgment and emergency trip control, providing redundant safety interlock protection for gas and steam turbine units to prevent mechanical damage caused by abnormal overspeed operation.

Equipped with independent microprocessor and dedicated PROM firmware modules, this board features high-response speed signal detection and instant trip execution capability. It integrates hardware fuse protection, jumper parameter configuration and real-time fault diagnosis functions. Adopting industrial ruggedized circuit design with strong electromagnetic interference resistance, it maintains ultra-high operational reliability, ensuring effective emergency protection under extreme and harsh turbine hall operating conditions.

Main Specifications

1. Full Model: DS200TCEAG1ACB; Product Type: Turbine emergency overspeed safety protection control board
2. Applicable System: GE Speedtronic Mark V gas and steam turbine safety control systems
3. Core Function: Real-time speed monitoring, overspeed threshold judgment, emergency trip and fault self-diagnosis
4. Processing Configuration: Independent dedicated microprocessor and matched PROM firmware storage modules
5. Hardware Design: Built-in 3 safety fuses, 30 configurable jumpers and dual bayonet docking interfaces
6. Response Performance: Ultra-fast overspeed detection and trip response to ensure timely safety interlock
7. Configuration Mode: Supports hardware jumper adjustment for overspeed threshold parameter calibration
8. Protection Mechanism: Multi-level hardware safety protection to avoid false trip and missing trip faults
9. Environmental Adaptability: Anti-vibration, anti-interference and high-temperature resistant industrial structure
10. Reliability: Power safety grade certification, supporting 24/7 long-term safe operation of turbine units

Core Functions

1. Serves as the key emergency overspeed safety protection unit for GE Mark V turbine systems.
2. Continuously monitors real-time turbine rotor speed signals with high-precision sampling.
3. Accurately judges overspeed faults once the speed exceeds the preset safety threshold.
4. Triggers instantaneous emergency trip interlock to cut off turbine operating conditions rapidly.
5. Prevents turbine mechanical failure and equipment damage caused by overspeed operation.
6. Supports flexible overspeed parameter calibration via on-board jumper configuration.
7. Implements real-time self-diagnosis to monitor board operating status and circuit faults.
8. Provides redundant safety protection to complement conventional turbine control loops.
9. Resists complex industrial electromagnetic interference to guarantee stable protection logic.
10. Ensures overall operational safety and fault tolerance of power generation turbine units.

Application Scenarios

1. Thermal power plant GE Mark V steam turbine overspeed safety protection control systems
2. Industrial gas turbine unit emergency trip protection and speed monitoring platforms
3. Large power generation unit rotor overspeed fault early warning and interlock scenarios
4. Petrochemical waste heat power generation turbine safety protection supporting projects
5. Industrial self-provided power plant turbine full-process safety monitoring systems
6. Harsh turbine hall environment high-reliability safety protection application scenarios
7. Old GE Speedtronic Mark V system overspeed protection board replacement and upgrading
8. Turbine unit heavy-load operation anti-overspeed safety guarantee systems
9. Power generation equipment safety interlock system redundant protection construction projects
10. Energy industry Mark V turbine core safety control loop high-stability operation scenarios
