Product Description

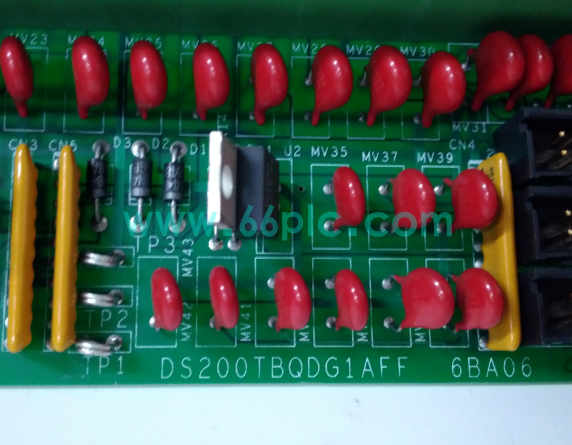

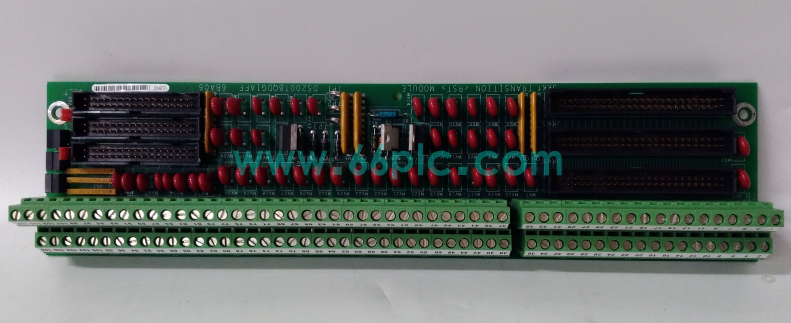

The GE DS200TBQDG1AFF is a high-capacity RST extension analog termination board developed for GE Speedtronic Mark V turbine control systems. It serves as an extended physical wiring and signal conversion interface, specially designed for centralized termination and distribution of multi-channel field analog signals, vibration signals and DC voltage signals for turbine R, S, T core control units.

Equipped with dual high-density terminal blocks and multi-specification pin connectors, this board supports large-capacity signal access and precise signal shunting. It integrates test point detection and jumper configuration functions, with built-in anti-crosstalk and surge protection circuits. Adopting industrial ruggedized design, it delivers stable signal transmission and flexible parameter configuration, adapting to long-term high-load operation of power generation turbine control loops.

Main Specifications

1. Full Model: DS200TBQDG1AFF; Product Type: RST extended high-density analog signal termination board
2. Applicable System: GE Speedtronic Mark V gas and steam turbine RST core control systems
3. Core Function: Multi-channel analog signal termination, signal shunting, test detection and parameter configuration
4. Terminal Configuration: Dual terminal blocks with 107 signal terminals each for large-capacity wiring access
5. Connector Specification: Equipped with 3×34-pin and 3×50-pin standard system docking connectors
6. Adaptable Signals: Compatible with 0-10V pulse signals, DC voltage and turbine vibration transducer signals
7. Configuration Mode: Supports hardware jumper adjustment for ±10V DC signal adaptation and calibration
8. Detection Design: Reserved multiple test points for on-site signal debugging and status verification
9. Circuit Performance: Built-in anti-interference and surge protection to suppress industrial electromagnetic noise
10. Reliability: Power industry certification, supporting 24/7 continuous operation of turbine core control units

Core Functions

1. Acts as the extended high-density analog wiring hub for GE Mark V turbine RST core systems.
2. Realizes centralized termination and sorting of field vibration, voltage and pulse analog signals.
3. Supports large-capacity multi-channel signal access to meet complex turbine control wiring demands.
4. Provides reserved test points for convenient on-site signal detection and equipment debugging.
5. Adopts jumper configuration to flexibly adapt different DC signal input specifications.
6. Shields circuit crosstalk and electromagnetic interference to ensure signal transmission accuracy.
7. Stably transmits field analog data to RST core control modules for system logic judgment.
8. Standardizes internal cabinet wiring to simplify circuit layout and improve maintenance efficiency.
9. Resists harsh turbine hall vibration and temperature changes to maintain long-term stable performance.
10. Guarantees precise monitoring and stable closed-loop control of turbine operating parameters.

Application Scenarios

1. Thermal power plant GE Mark V turbine RST core control system signal termination platforms
2. Industrial gas turbine unit vibration transducer and DC voltage signal acquisition scenarios
3. Power generation unit 0-10V pulse signal transmission and parameter calibration supporting projects
4. Petrochemical waste heat power generation turbine multi-channel analog signal convergence systems
5. Large steam turbine core control unit extended wiring and signal expansion application scenarios
6. Turbine hall strong electromagnetic environment high-density signal stable transmission projects
7. Old GE Speedtronic Mark V system analog termination board replacement and upgrading transformation
8. Power turbine operating parameter real-time monitoring and signal feedback guarantee systems
9. Industrial turbine multi-specification analog signal adaptation and centralized processing platforms
10. Energy industry Mark V turbine core control loop high-reliability wiring supporting scenarios
