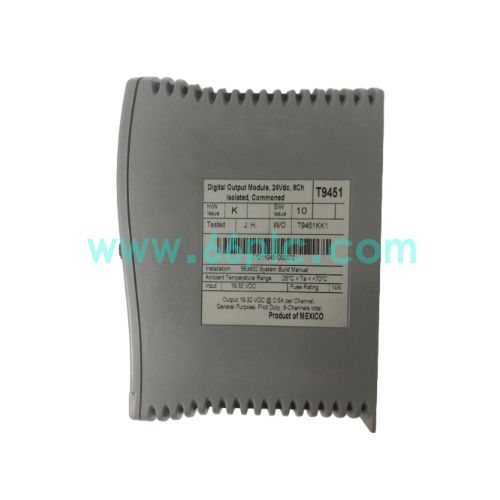

ICS TRIPLEX T9451 Trusted 8 Channel Isolated Digital Output Module

ICS TRIPLEX T9451 is an 8-channel isolated digital output module for the Trusted safety instrumented system. It receives safety control commands from the processor and outputs 24VDC switching signals to drive field actuators, solenoid valves and trip relays, with continuous built-in channel fault diagnosis.

This module supports simplex, dual and TMR triple modular redundant configurations to meet IEC61508 SIL3 safety requirements. It features hot-swap capability on Trusted backplane without system shutdown, widely used as spare parts replacement for ESD and safety interlock systems in oil, gas and chemical industries.

Main Specifications

1. Brand: ICS TRIPLEX (Rockwell Automation); Model: T9451; Series: Trusted; Type: Digital Output Module
2. Channels: 8 isolated digital output channels; Nominal output voltage: 24VDC
3. Per channel rated current: 1A; Backplane power:18~32VDC; Power consumption: approx 4.8W
4. Safety standard: IEC61508 SIL3; Redundancy: Simplex, dual, TMR triple modular redundancy
5. Operating Temp: -20℃ ~ +60℃; Protection class: IP20 for cabinet internal installation
6. Feature: Hot swappable, continuous channel diagnostic for open/short circuit detection
7. Supply Status: Industrial spare module for maintenance of existing Trusted SIS safety systems

Core Functions

1. Convert safety logic commands from Trusted processor into 24VDC field switching output signals.
2. Individual channel galvanic isolation to suppress field interference and prevent cross-channel fault propagation.
3. Continuous on-board diagnostics, detect wire break, short circuit and report channel fault status to CPU.
4. Compatible with simplex, dual and TMR redundant architecture to achieve SIL3 safety integrity level.
5. Hot swap function, replace faulty module while the safety instrumented system keeps running.
6. Standard Trusted rack mounting, convenient disassembly and maintenance for safety control cabinets.

Application Scenarios

1. Safety instrumented system output control for chemical and petrochemical plants.
2. Emergency shutdown system (ESD) valve and trip relay drive control.
3. Power plant boiler and turbine safety interlock actuator triggering.
4. Replacement of damaged digital output modules for running Trusted safety platforms.
5. Spare parts inventory for factory maintenance teams of SIL3 safety automation systems.
6. Retrofit and upgrade of legacy oil & gas process safety control cabinets.

FAQ

1. Q: What is ICS TRIPLEX T9451 used for?
   A: It is an 8-channel isolated digital output module for Trusted SIS system, outputting 24VDC signals to drive solenoid valves and trip relays for safety interlock.
2. Q: Does T9451 support hot swap?
   A: Yes, it supports hot swap on Trusted backplane without system shutdown during module replacement.
3. Q: What safety level can T9451 achieve?
   A: When configured in TMR architecture, it can meet IEC61508 SIL3 safety integrity level requirements.
