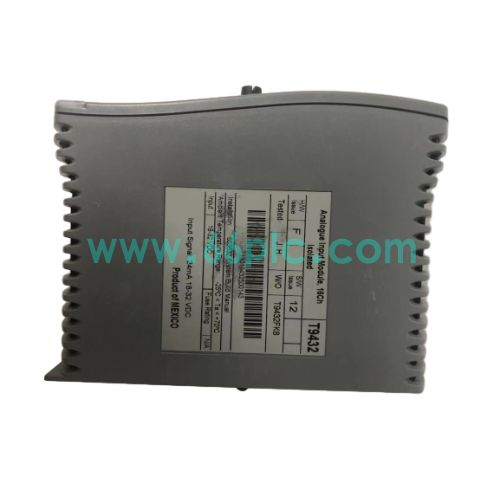

ICS TRIPLEX T9432 Trusted 8 Channel Isolated Analog Input Module

ICS TRIPLEX T9432 is an 8-channel isolated analog input module for the Trusted safety instrumented system. It collects 4-20mA analog signals from field transmitters and converts them into digital data for the safety processor, with per-channel galvanic isolation and continuous on-board fault diagnostics.

This module supports simplex, dual and TMR triple modular redundant configurations to meet SIL3 safety requirements. It supports hot swap on the Trusted backplane without system shutdown, widely supplied as spare parts for maintenance and replacement of ESD and fire & gas safety control systems.

Main Specifications

1. Brand: ICS TRIPLEX (Rockwell Automation); Model: T9432; Series: Trusted; Type: Analog Input Module
2. Channels: 8 isolated analog input channels; Signal type: 4-20mA current input
3. Backplane supply:18~32VDC; Power consumption: approx 4.5W
4. Resolution: 16-bit A/D conversion; Channel isolation: galvanic isolation per channel
5. Operating Temp: -20℃ ~ +60℃; Protection: IP20, cabinet mounting
6. Redundancy: Simplex, dual, TMR triple redundant; Hot swappable
7. Supply Status: Industrial spare module for existing Trusted SIS system overhaul

Core Functions

1. Acquire 4-20mA analog signals from pressure, temperature and flow field transmitters.
2. Individual channel galvanic isolation to suppress field interference and prevent cross-channel faults.
3. Built-in continuous self-diagnosis to detect wire break, short circuit and module hardware failure.
4. Compatible with simplex, dual and TMR configurations to achieve IEC61508 SIL3 safety integrity level.
5. Hot swap function, replace defective module while the safety control system remains running.
6. Standard Trusted rack installation for easy maintenance in safety instrumented cabinets.

Application Scenarios

1. Safety instrumented system analog signal acquisition for chemical and petrochemical plants.
2. Emergency shutdown system and fire & gas monitoring analog signal collection.
3. Power plant boiler and turbine safety protection process variable monitoring.
4. Replacement of faulty analog input modules for running Trusted safety platforms.
5. Spare parts stocking for factory maintenance teams of SIL3 safety automation systems.
6. Retrofit and upgrade of legacy oil & gas process safety control cabinets.

FAQ

1. Q: What is ICS TRIPLEX T9432 used for?
   A: It is an 8-channel isolated analog input module for Trusted SIS system, collecting 4-20mA field transmitter signals for safety logic control.
2. Q: Does T9432 support hot swap?
   A: Yes, it supports hot swap on Trusted backplane without system shutdown during module replacement.
3. Q: What safety level can T9432 achieve?
   A: When configured in TMR architecture, it can meet IEC61508 SIL3 safety integrity level requirements.
