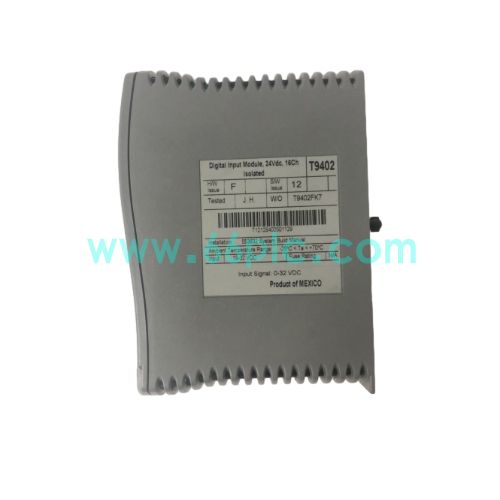

ICS TRIPLEX T9402 Trusted 16 Channel Isolated Digital Input Module

ICS TRIPLEX T9402 is a 16-channel isolated digital input module belonging to the Trusted safety system series. It collects 24VDC field digital signals and transmits data to the safety processor, with full channel isolation and continuous built-in self-diagnosis for circuit fault detection.

This module supports simplex, dual and triple modular redundant configurations for SIL3 safety applications. It can be hot-swapped on the Trusted backplane without shutting down the safety system, widely used as spare parts replacement for ESD and safety interlock control systems in heavy process industries.

Main Specifications

1. Brand: ICS TRIPLEX (Rockwell Automation); Model: T9402; Series: Trusted; Type: Digital Input Module
2. Channels: 16 isolated digital input channels; Nominal input voltage: 24VDC
3. Backplane power:18~32VDC; Power consumption: 4W; Per channel input current:6.5mA
4. Scan time: 0.924ms(simplex),1.676ms(dual),2.453ms(triple)
5. Operating Temp: -20℃ ~ +60℃; Protection class: IP20, cabinet installation
6. Redundancy: Support simplex, dual, TMR triple redundant architecture; Hot swap capable
7. Supply Status: Industrial spare module for maintenance of existing Trusted SIS safety systems

Core Functions

1. Acquire on-site 24VDC digital status signals and send valid data to the Trusted safety processor.
2. Full electrical isolation between each channel to suppress interference and prevent cross-channel short circuit faults.
3. Built-in continuous self-diagnosis, report channel open circuit, short circuit and module hardware faults.
4. Compatible with simplex, dual and triple modular redundant configurations to meet SIL3 safety requirements.
5. Hot-swap function, replace faulty module while the safety control system remains running.
6. Standard Trusted rack mounting, easy installation and maintenance for safety instrumented cabinets.

Application Scenarios

1. Safety instrumented system (SIS) digital signal acquisition for chemical and petrochemical plants.
2. Emergency shutdown system (ESD) and burner management safety interlock signal collection.
3. Power plant boiler and turbine safety protection status input monitoring.
4. Replacement of damaged digital input modules for running Trusted safety control platforms.
5. Spare parts inventory for factory maintenance teams of SIL3 safety automation systems.
6. Retrofit and upgrade of legacy oil & gas process safety control cabinets.

FAQ

1. Q: What is ICS TRIPLEX T9402 used for?
   A: It is a 16-channel isolated digital input module for Trusted SIS system, collecting field 24VDC switch status signals for safety logic control.
2. Q: Does T9402 support hot swap?
   A: Yes, it supports hot swap on Trusted backplane without system shutdown during module replacement.
3. Q: What safety level can T9402 achieve?
   A: When configured in TMR architecture, it can meet IEC61508 SIL3 safety integrity level requirements.
