Bently Nevada 3500/94M 184826‑01B Display Interface Module in stock

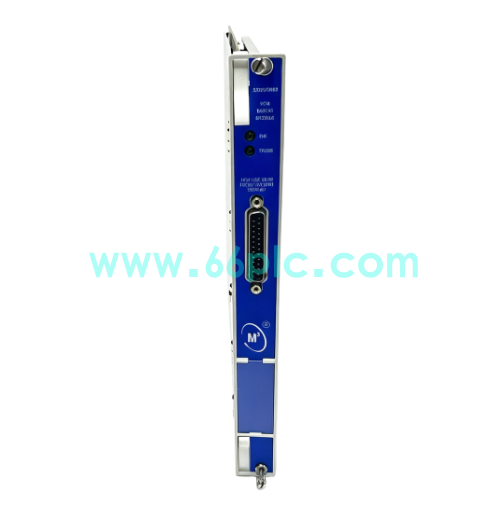

The Bently Nevada 3500/94M 184826‑01B is a display interface module for the Bently Nevada 3500 machinery monitoring system. It provides local human‑machine interface for the 3500 rack, enabling on‑site reading of vibration, displacement, speed and machinery alarm status. Installed on the front slot of 3500 rack, it communicates with rack main controller to realize local parameter viewing and simple operation for turbine and compressor TSI protection systems.

This module integrates LCD display screen, operation keys, backplane bus connector and status LED indicators. It supports real‑time channel data browsing, alarm event checking and local module status diagnosis. It complies with API 670 machinery‑protection standard requirements. Original production has been discontinued. It is widely supplied as aftermarket spare parts for 3500 rack maintenance and legacy rotating‑equipment‑monitoring retrofit projects.

Main Specifications

1. Brand:Bently Nevada (Baker Hughes); Model:3500/94M 184826‑01B; Type:Local Display Interface Module
2. Compatible Platform:Bently Nevada 3500 series machinery monitoring rack system
3. Core Function:Local data display, alarm event query, on‑site status diagnosis and man‑machine interaction for 3500 rack
4. Interface Resource:3500 rack back‑plane bus connector, LCD screen and physical operation keypad
5. Status Indicator:On‑board LED indicators for module running state and system alarm prompt
6. Hardware Feature:Plug‑in rack front‑slot design, support hot‑swap replacement without system shutdown
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Obtain real‑time measurement data, channel status and alarm event information from 3500 rack controller via internal back‑plane bus.
2. Display vibration, shaft displacement, speed and other process values on local LCD screen for field‑operator direct viewing.
3. Support manual keypad operation to browse historical alarm records and check hardware fault status of each I/O module inside rack.
4. Indicate system abnormal and alarm state through LED indicators, assisting on‑site staff to quickly locate machinery‑monitoring faults.
5. Support hot‑swap maintenance, module replacement will not interrupt normal monitoring function of 3500 machinery‑protection system.
6. Serve as essential local human‑machine interaction hardware for Bently Nevada 3500 turbine supervisory instrumentation systems.

Application Scenarios

1. Machinery‑protection monitoring systems built on Bently Nevada 3500 platform for power‑plant turbines, gas turbines, compressors and large rotating units.
2. Spare‑parts replacement and routine maintenance of existing 3500 local‑display subsystems inside monitoring cabinets.
3. Technical renovation and HMI‑component upgrade of aging legacy 3500 machinery‑monitoring installations.
4. On‑site troubleshooting and replacement of faulty display interface modules for continuously running critical rotating‑machinery protection systems.
5. Spare‑parts stocking for system integrators and plant maintenance contractors supporting legacy Bently Nevada 3500 hardware platforms.
6. Global aftermarket spare supply for technical teams maintaining obsolete Bently Nevada 3500 machinery‑monitoring hardware.

FAQ

1. Q:Can 3500/94M 184826‑01B work as standalone unit?
   A:It must be installed in matched Bently Nevada 3500 rack system, standalone module cannot collect and display machinery‑monitoring data.
2. Q:What symptoms appear upon module failure?
   A:Blank screen or no data display, unable to check local alarm records, remote monitoring function of 3500 rack remains unaffected.

3. Q:How to complete configuration and diagnosis?
   A:Check screen and LED status locally; system configuration and deep fault diagnosis are completed through 3500 System 1 supporting monitoring software.
