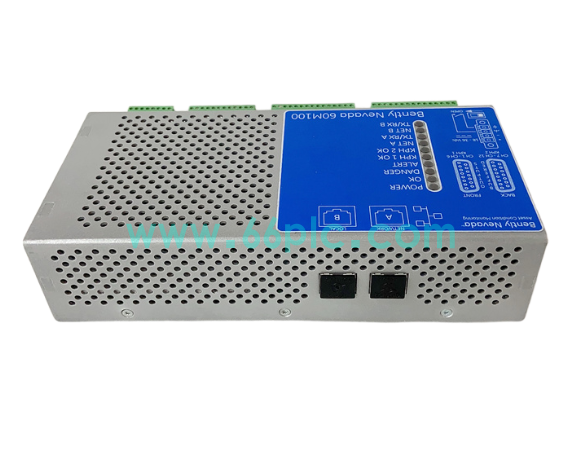

Bently Nevada 60M100‑00 Proximitor Sensor Module

The Bently Nevada 60M100‑00 is a proximitor sensor module used for non‑contact displacement measurement. It works cooperatively with eddy‑current proximity probes to convert gap variation between probe and target metal surface into standard voltage output signals. It is widely applied in turbine supervisory instrumentation systems to monitor shaft vibration, shaft position and thrust clearance of large rotating machinery.

This module integrates internal oscillation, signal demodulation and signal conditioning circuits. It provides excitation power for the matched proximity probe and outputs linear analog signals reflecting gap changes. It follows API 670 industry standard for machinery protection. Original production has been discontinued. It is widely supplied as aftermarket spare parts for TSI system maintenance and legacy rotating‑equipment‑monitoring retrofit projects.

Main Specifications

1. Brand:Bently Nevada (Baker Hughes); Model:60M100‑00; Type:Proximitor Sensor Module
2. Compatible Device:Matched eddy‑current proximity probe and extension cable assembly
3. Core Function:Eddy‑current signal excitation, demodulation and conversion for shaft gap and displacement measurement
4. Output Signal:Linear analog voltage output corresponding to probe‑target gap distance
5. Hardware Feature:Built‑in temperature compensation circuit, stable signal output for industrial field environment
6. Installation Mode:Field‑mount or rack‑mount layout according to site engineering requirements
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Provide high‑frequency oscillation excitation signal for the paired eddy‑current proximity probe.
2. Detect eddy‑current variation caused by gap change between probe tip and rotating shaft target surface.
3. Complete signal demodulation and conditioning, output linear analog signal reflecting actual displacement value.
4. Transmit processed measurement signals to monitoring rack modules for vibration, position and thrust‑position logic judgment.
5. Realize non‑contact measurement to avoid mechanical wear on high‑speed rotating shaft components.
6. Serve as key signal conversion hardware for Bently Nevada TSI systems applied on turbines, compressors and large rotating units.

Application Scenarios

1. Turbine supervisory instrumentation systems for power‑plant steam turbines, gas turbines, compressors and other critical rotating equipment.
2. Spare‑parts replacement and routine maintenance of existing proximitor measurement subsystems inside machinery‑monitoring cabinets.
3. Technical renovation and sensor‑loop upgrade of aging legacy Bently Nevada TSI monitoring installations.
4. On‑site troubleshooting and replacement of faulty proximitor modules for continuously running critical rotating‑machinery protection systems.
5. Spare‑parts stocking for system integrators and plant maintenance contractors supporting legacy Bently Nevada monitoring hardware platforms.
6. Global aftermarket spare supply for technical teams maintaining obsolete Bently Nevada machinery‑monitoring hardware.

FAQ

1. Q:Can 60M100‑00 work as standalone unit?
   A:It must work with matched proximity probe and extension cable, standalone module cannot complete displacement measurement.
2. Q:What symptoms appear upon module failure?
   A:Zero‑drift displacement reading, loss of vibration signal, abnormal gap measurement value, TSI system sensor‑channel fault alarm may occur.

3. Q:How to complete configuration and diagnosis?
   A:Carry out gap voltage calibration on site; fault inspection and signal verification can be completed through multimeter measurement and supporting TSI system diagnostic tools.
