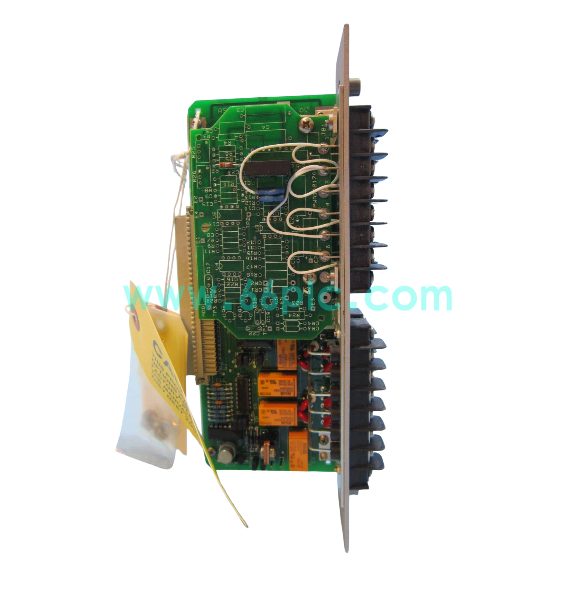

Bently Nevada 84152‑01 Xducer I/O Record Terminals Module in stock

The Bently Nevada 84152‑01 is a transducer I/O record terminal module designed for Bently Nevada 3300 machinery monitoring rack system. It serves as signal interface terminal assembly for proximity probes and vibration sensors, providing field wiring terminals for transducer signal routing between field sensors and internal monitor boards. Installed in 3300 rack slot, it guarantees stable signal transmission for turbine, compressor and rotating‑machinery TSI protection loops.

This module integrates multi‑point field terminal blocks, rack back‑plane connector and hardware status indicators. It provides shielding and signal filtering for transducer input signals, reduces external electromagnetic interference on weak sensor signals. It complies with API 670 machinery‑protection specification requirements. Original production has been discontinued. It is widely supplied as aftermarket spare parts for 3300 rack maintenance and legacy machinery‑protection‑system retrofit projects.

Main Specifications

1. Brand:Bently Nevada (Baker Hughes); Model:84152‑01; Type:Transducer I/O Record Terminals Module
2. Compatible Platform:Bently Nevada 3300 series machinery monitoring rack system
3. Core Function:Transducer signal wiring interface, signal shunting, shielding and noise suppression for proximity sensor inputs
4. Interface Resource:Multi‑channel field terminal blocks, dedicated 3300 rack back‑plane connector
5. Hardware Feature:Built‑in signal shielding circuit, anti‑interference design for weak transducer signal transmission
6. Mechanical Feature:Rack plug‑in modular structure, convenient for replacement and field wiring maintenance
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Provide standardized field wiring terminals for 3300 series proximity probes and vibration transducer field cables.
2. Route weak sensor signals from field side through internal circuit to 3300 monitor boards via rack back‑plane connector.
3. Implement signal shielding and filtering processing, restrain external electromagnetic noise interference on low‑level transducer signals.
4. Realize convenient field wiring, inspection and troubleshooting without modifying internal monitor board wiring.
5. Maintain signal integrity of displacement and vibration measurement loops to guarantee accuracy of machinery‑monitoring data.
6. Serve as essential transducer signal front‑end terminal hardware for Bently Nevada 3300 turbine supervisory instrumentation systems.

Application Scenarios

1. Machinery‑protection monitoring systems built on Bently Nevada 3300 platform for power‑plant turbines, compressors and large rotating equipment.
2. Spare‑parts replacement and routine maintenance of existing 3300 transducer‑interface subsystems inside monitoring cabinets.
3. Technical renovation and signal‑wiring‑path upgrade of aging legacy 3300 machinery‑monitoring installations.
4. On‑site troubleshooting and replacement of faulty transducer terminal modules for continuously running critical rotating‑machinery protection systems.
5. Spare‑parts stocking for system integrators and plant maintenance contractors supporting legacy Bently Nevada 3300 hardware platforms.
6. Global aftermarket spare supply for technical teams maintaining obsolete Bently Nevada 3300 machinery‑monitoring hardware.

FAQ

1. Q:Can 84152‑01 work as standalone unit?
   A:It is a dedicated transducer terminal interface module, must be installed inside matched Bently Nevada 3300 rack system, standalone module cannot complete signal acquisition functions.
2. Q:What symptoms appear upon module failure?
   A:Abnormal or loss of transducer measurement signals, unstable vibration / position readings, 3300 system sensor‑channel fault alarm may occur.

3. Q:How to complete configuration and diagnosis?
   A:Check terminal wiring status on module front side; fault checking and system diagnosis are completed through 3300 supporting configuration software and system display unit.
