Bently Nevada 3500/94 147663‑01 Display Module in stock

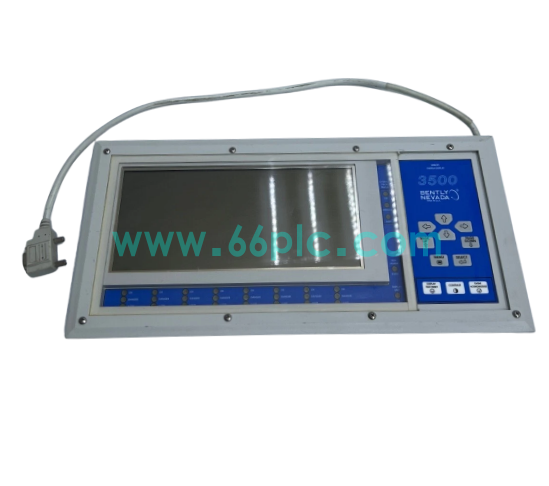

The Bently Nevada 3500/94 147663‑01 is a local display module for Bently Nevada 3500 machinery monitoring rack system. It delivers on‑site human‑machine interface function, allowing field operators to view real‑time vibration, shaft displacement, speed values and system alarm events directly on rack front panel. Mounted in designated front slot of 3500 rack, it communicates with rack controller via internal backplane bus for turbine and compressor TSI monitoring applications.

This unit equips with LCD display, tactile operation keypad, backplane connector and status LED indicators. It supports channel data browsing, alarm history review and module status diagnosis. Hot‑swap capability permits online replacement without stopping machinery monitoring function. It complies with API 670 machinery‑protection requirements. Original production has been discontinued. It is widely supplied as aftermarket spare parts for 3500 rack maintenance and legacy rotating‑equipment‑monitoring retrofit projects.

Main Specifications

1. Brand:Bently Nevada (Baker Hughes); Model:3500/94 147663‑01; Type:Rack Local Display Module
2. Compatible Platform:Bently Nevada 3500 series machinery monitoring rack system
3. Core Function:Local process‑value display, alarm event query, on‑site hardware status diagnosis and keypad operation
4. Interface Resource:3500 internal back‑plane bus connector, LCD screen and physical navigation keypad
5. Status Indicator:On‑board LED indicators for module operation state and system alarm notification
6. Hardware Feature:Front‑slot plug‑in structure, hot‑swap support without interrupting rack monitoring service
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Acquire real‑time measurement data, channel diagnostics and alarm event data from 3500 rack controller through back‑plane bus communication.
2. Visualize vibration, thrust position, rotational speed and other machinery‑monitoring parameters on local LCD screen for field‑side observation.
3. Enable keypad navigation to check historical alarm logs and fault information of each I/O module installed inside the rack cabinet.
4. Use LED indicators to highlight system abnormal status, helping maintenance personnel quickly locate machinery‑monitoring related faults.
5. Support hot‑swap maintenance, module removal and replacement will not affect normal monitoring output of the whole 3500 protection system.
6. Serve as indispensable local human‑machine interaction hardware for Bently Nevada 3500 turbine supervisory instrumentation systems.

Application Scenarios

1. Machinery‑protection monitoring systems based on Bently Nevada 3500 platform for power‑plant turbines, gas turbines, compressors and large rotating machinery.
2. Spare‑parts replacement and routine maintenance of existing 3500 local‑display subsystems within machinery‑monitoring cabinets.
3. Technical renovation and local‑HMI hardware upgrade of aging legacy 3500 machinery‑monitoring installations.
4. On‑site troubleshooting and replacement of defective display modules for continuously running critical rotating‑machinery protection systems.
5. Spare‑parts stocking for system integrators and plant maintenance contractors supporting legacy Bently Nevada 3500 hardware platforms.
6. Global aftermarket spare supply for technical teams maintaining obsolete Bently Nevada 3500 machinery‑monitoring hardware.

FAQ

1. Q:Can 3500/94 147663‑01 work as standalone unit?
   A:It must be fitted into compatible Bently Nevada 3500 rack system, standalone module cannot collect or display machinery‑monitoring data.
2. Q:What symptoms appear upon module failure?
   A:Screen blackout or blank display, failure to access local alarm records, remote monitoring function of 3500 rack keeps working normally.

3. Q:How to complete configuration and diagnosis?
   A:Inspect screen and LED status locally; full configuration and deep fault diagnosis are completed via Bently Nevada System 1 supporting monitoring software.
