Product Description

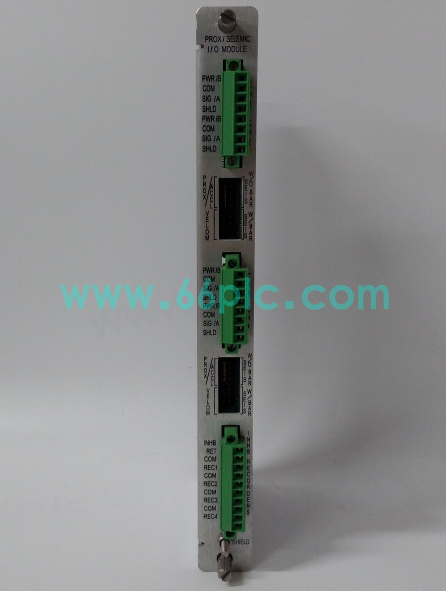

The Bently Nevada 3500/42M 128229-01 is a high-performance four-channel Proximitor and seismic monitoring module for the 3500 machinery protection system. It receives and conditions signals from proximity probes and seismic transducers, accurately measuring shaft vibration, thrust position and mechanical motion parameters for rotating equipment condition monitoring.

Supporting flexible channel programming via dedicated rack software, the module features user-configurable alarm thresholds and multi-parameter monitoring functions. With built-in signal conditioning circuitry and industrial anti-interference design, it delivers precise, stable data acquisition. Hot-swap compatible and ruggedly built, it ensures 24/7 reliable machinery protection and predictive fault diagnosis in harsh industrial environments.

Main Specifications

1. Full Part Number: 3500/42M 128229-01; Product Type: 4-channel Proximitor seismic vibration and position monitoring module
2. Applicable System: Bently Nevada 3500 series machinery condition monitoring and protection systems
3. Core Function: Proximity and seismic signal conditioning, vibration/position measurement and alarm judgment output
4. Channel Configuration: Four independent programmable channels for multi-point mechanical parameter monitoring
5. Supported Transducers: Compatible with proximity probes, seismic and velocity transducer devices
6. Monitoring Parameters: Radial vibration, thrust position, differential expansion and shaft motion status
7. Configuration Mode: Supports professional 3500 rack software for customized alarm threshold setting
8. Signal Performance: High-precision signal conditioning to eliminate noise and improve sampling accuracy
9. Installation Design: Hot-swappable structure for non-stop module replacement and maintenance
10. Reliability: Industrial-grade rugged design, adapting to long-term operation in power and petrochemical sites

Core Functions

1. Serves as the core multi-channel vibration and position monitoring unit for 3500 protection systems.
2. Conditions original sensor signals to achieve accurate mechanical parameter measurement.
3. Monitors key operating indicators such as shaft vibration and thrust position in real time.
4. Compares monitored data with preset thresholds to trigger alarm and protection logic.
5. Supports flexible channel configuration to meet diverse rotating machinery monitoring demands.
6. Provides reliable data support for equipment predictive maintenance and safety interlock protection.

Application Scenarios

1. Power plant steam turbine, gas turbine and generator set vibration monitoring systems
2. Petrochemical large compressors, fans and rotating equipment condition monitoring platforms
3. Industrial key machinery shaft position deviation and abnormal vibration early warning scenarios
4. Mechanical fault diagnosis, predictive maintenance and equipment safety protection systems
5. Functional upgrading and aging monitoring module replacement for 3500 series racks
