Product Description

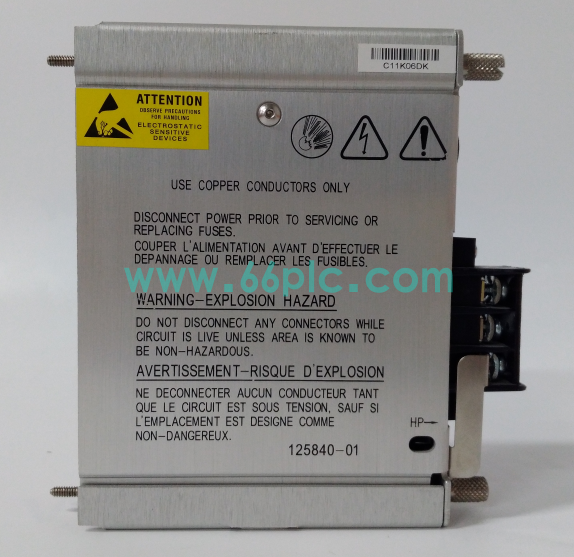

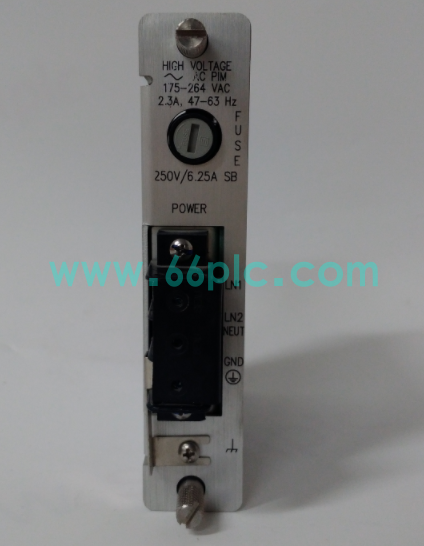

The Bently Nevada 3500/15 125840-01 is a dedicated high-voltage AC power supply module developed for the 3500 series machinery monitoring systems. As a core power distribution unit, it converts high-voltage alternating current into stable 24V DC power to supply power for all monitoring modules and rack components, ensuring continuous power support for the whole system.

This half-height rack-mounted module features wide voltage input adaptability and efficient power conversion performance. It integrates overvoltage, overcurrent and short-circuit protection functions, with real-time power status monitoring. Adopting industrial rugged design and hot-swap support, it delivers high stability and fault tolerance for long-term uninterrupted operation of critical machinery monitoring systems.

Main Specifications

1. Full Part Number: 3500/15 125840-01; Product Type: Industrial high voltage AC power supply module for monitoring rack
2. Applicable System: Bently Nevada 3500 series machinery condition monitoring and protection systems
3. Core Function: High-voltage AC input conversion, 24V DC power output and system power distribution
4. Input Voltage Range: 175–264V AC wide-range industrial high-voltage power input
5. Output Specification: Stable 24V DC standard power supply for internal rack modules
6. Structural Feature: Half-height modular design, installed on the left designated slot of 3500 rack
7. Protection Mechanism: Built-in overvoltage, overcurrent and short-circuit automatic protection functions
8. Monitoring Function: Real-time power operating status detection and fault alarm indication
9. Installation Performance: Hot-swappable design for non-stop maintenance and replacement
10. Reliability: High-efficiency power conversion, industrial-grade durability for 24/7 continuous operation

Core Functions

1. Serves as the core power supply unit for Bently Nevada 3500 monitoring system racks.
2. Converts industrial high-voltage AC power into stable DC power for system modules.
3. Realizes uniform and stable power distribution for the entire monitoring rack equipment.
4. Provides multiple circuit protection to avoid module damage caused by power anomalies.
5. Supports real-time power status monitoring to facilitate rapid fault diagnosis and maintenance.
6. Guarantees continuous and reliable power supply for machinery safety monitoring systems.

Application Scenarios

1. Power plant turbine, generator 3500 series machinery monitoring system power supply
2. Petrochemical large rotating equipment condition monitoring rack power distribution scenarios
3. Industrial critical machinery safety protection system stable power guarantee platforms
4. Harsh industrial environment high-reliability power supply and anti-interference scenarios
5. Aging power module replacement and system power stability upgrading for 3500 racks
