Product Description

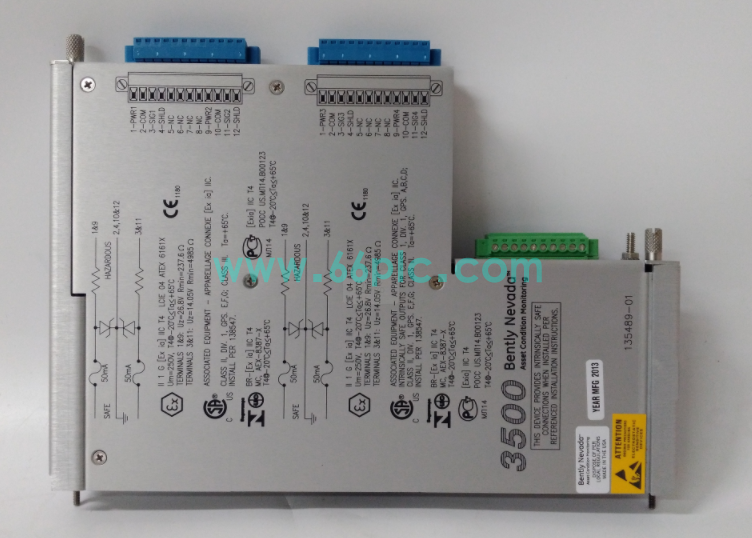

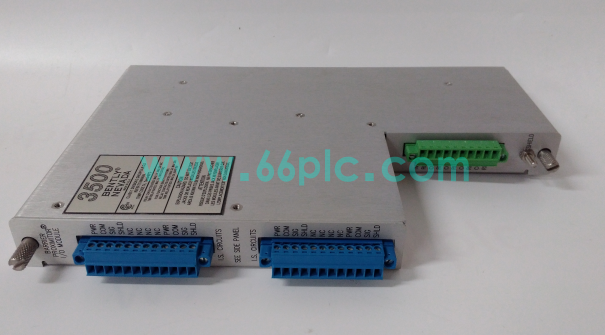

The Bently Nevada 135489-01 is a high-safety 4-channel internal barrier I/O module designed for the 3500 series machinery protection systems. It acts as a safe signal interface between field sensors and the monitoring rack, providing signal isolation, barrier protection and signal conditioning for vibration and motion monitoring signals in hazardous industrial areas.

Each independent channel is equipped with built-in intrinsic safety barriers to prevent transient current and voltage surges from damaging system equipment. Featuring professional electromagnetic anti-interference design and compact modular structure, it supports stable signal transmission and system safety protection. Compatible with hot-swap maintenance, it ensures long-term safe and reliable operation of machinery monitoring systems in harsh and explosive industrial environments.

Main Specifications

1. Full Part Number: 135489-01; Product Type: Industrial 4-channel intrinsic safety barrier signal I/O module
2. Applicable System: Bently Nevada 3500 series machinery condition monitoring and protection systems
3. Core Function: Field sensor signal isolation, safety barrier protection, signal conditioning and transmission
4. Channel Design: Four fully independent isolated channels for multi-point field signal access
5. Safety Performance: Built-in intrinsic safety barrier to suppress surge and abnormal voltage/current
6. Signal Adaptation: Compatible with vibration probes, speed sensors and various motion monitoring transducers
7. Protection Mechanism: Effectively isolates field fault signals to protect internal rack and core modules
8. Anti-Interference Ability: Optimized EMC design for stable signal transmission in complex electromagnetic environments
9. Installation Feature: Standard rack-mounted structure supporting hot-swap non-stop maintenance
10. Reliability: Explosion-proof and industrial rugged design, adapting to hazardous industrial site operation

Core Functions

1. Serves as a safety isolation and signal interface unit for 3500 machinery monitoring systems.
2. Realizes safe docking and conditioning of field sensor monitoring signals.
3. Provides intrinsic safety barrier protection to avoid equipment damage from field circuit faults.
4. Isolates external interference signals to improve monitoring data accuracy and stability.
5. Supports multi-channel parallel signal acquisition to expand system monitoring capacity.
6. Guarantees operational safety and continuous monitoring capability of the whole system.

Application Scenarios

1. Power plant turbine and generator set safety monitoring and signal isolation systems
2. Petrochemical explosive hazardous area rotating machinery monitoring platforms
3. Industrial flammable and explosive environment sensor signal acquisition scenarios
4. Key mechanical equipment safety protection and anti-interference monitoring systems
5. Safety upgrading and replacement of old barrier modules for 3500 series racks
