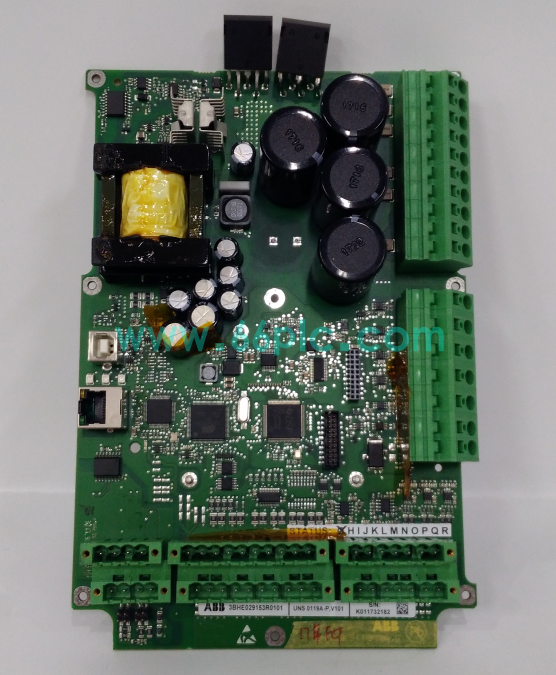

ABB UNS0119A‑P 3BHE029153R0101 Digital Input Submodule

The UNS0119A‑P 3BHE029153R0101 is a rack‑mount digital input submodule for ABB Symphony Plus and UNITROL excitation systems. It collects discrete field switch status signals, converts and transmits isolated digital data to main control boards via internal backplane bus.

This conformal‑coated plug‑in sub‑board supports both dry‑contact and wet‑contact input signals. It offers channel‑level fault diagnostics and robust anti‑interference performance for long‑term continuous operation in power‑plant excitation cabinets and DCS control racks.

Main Specifications

• Brand: ABB; Model: UNS0119A‑P; Part No: 3BHE029153R0101; Type: Digital Input Submodule
• Applicable System: ABB Symphony Plus DCS, UNITROL generator excitation system
• Core Tasks: Discrete digital signal acquisition, signal isolation conversion, status data transmission
• Signal Interface: Field dry/wet contact inputs, internal rack backplane bus interface
• Installation: Standard plug‑in sub‑board for cabinet rack mounting
• Power Supply: Powered by cabinet internal auxiliary DC power supply
• Operating Environment: 0℃ ~ +65℃, 5%‑95% RH non‑condensing, power‑plant anti‑vibration grade
• Diagnostic: On‑board LED indicators for working status and channel‑wise fault alarm
• Certifications: CE, complies with industrial EMC and power‑generation safety standards

Core Functions

• Capture field discrete status signals from limit switches, auxiliary contacts and safety interlock devices.
• Implement electrical isolation for input channels to suppress on‑site electromagnetic interference.
• Transfer processed digital status data to main controller through rack backplane bus communication.
• Carry out per‑channel fault detection and feed channel abnormal information back to system software.
• Support signal parameter checking and channel fault diagnosis via upper‑level configuration software.
• Conformal coated circuit design adapts to long‑term continuous operation in heavy‑duty power‑industry sites.

Application Scenarios

• Spare‑part replacement for DCS and UNITROL excitation cabinets in thermal power plants, hydropower stations and co‑generation facilities.
• Field digital signal acquisition component for generator excitation protection and distributed automation control systems.
• Maintenance backup inventory for renovation and after‑sales maintenance projects of legacy ABB DCS and excitation equipment.
• Matching sub‑board cooperating with main control board, power unit and system HMI operation panel.
• Retrofit replacement for old sub‑boards with channel sampling failure and hardware damage faults.

• Global aftermarket spare supply for automation maintenance teams maintaining ABB power‑generation equipment worldwide.
