ABB GFD212A 3BHE020356R0101 Digital I/O Module

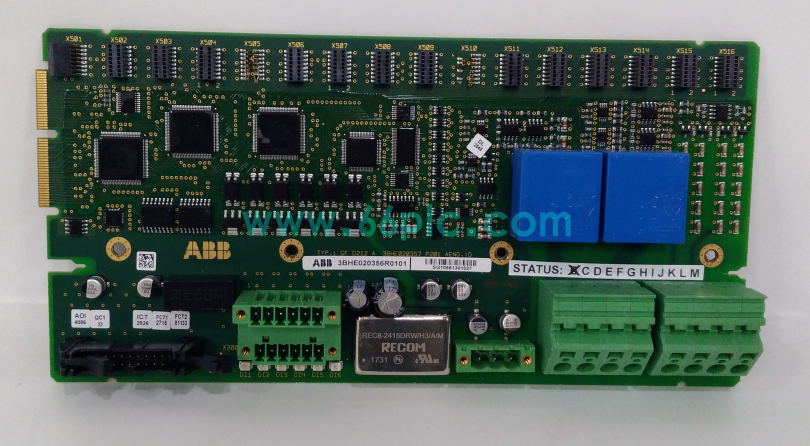

The GFD212A 3BHE020356R0101 is a plug‑in digital I/O module developed for ABB distributed control systems. It collects field digital switching signals and outputs control commands, realizing signal interaction between field devices and DCS controller units.

This conformal‑coated circuit board fits standard rack slots inside control cabinets. It provides channel‑level fault diagnosis and anti‑interference capability, suited for long‑time stable operation in power, petrochemical and heavy‑industry automation sites.

Main Specifications

• Brand: ABB; Model: GFD212A; Part No: 3BHE020356R0101; Type: Digital I/O Module
• Applicable System: ABB DCS distributed control system
• Core Tasks: Digital signal acquisition, on‑site command output, channel status monitoring
• Signal Interface: Field digital I/O terminals, internal rack backplane bus interface
• Installation: Standard plug‑in card for control cabinet rack mounting
• Power Supply: Powered by cabinet internal auxiliary DC power supply
• Operating Environment: 0℃ ~ +65℃, 5%‑95% RH non‑condensing, industrial anti‑vibration grade
• Diagnostic: On‑board LED indicators for working status and channel‑wise fault alarm
• Certifications: CE, complies with industrial EMC and safety standards

Core Functions

• Receive digital switching signals from field sensors, limit switches and auxiliary contact devices.
• Output digital control signals to drive local relays, solenoid valves and other field actuators.
• Transmit I/O status data to the main controller through rack backplane bus communication.
• Carry out channel‑level fault detection and feed back abnormal channel information to system software.
• Support parameter configuration and channel fault diagnosis via upper‑level DCS configuration software.
• Conformal coated circuit design adapts to long‑term continuous operation in heavy‑duty industrial sites.

Application Scenarios

• Spare‑part replacement for DCS control cabinets in thermal power plants, hydropower stations and petrochemical facilities.
• Field signal acquisition and output component for distributed control and automation control systems.
• Maintenance backup inventory for renovation and after‑sales maintenance projects of legacy ABB DCS equipment.
• Matching I/O module cooperating with CPU unit, processing boards and system HMI operation panel.
• Retrofit replacement for old modules with channel failure and hardware damage faults.

• Global aftermarket spare supply for automation maintenance teams maintaining ABB DCS equipment worldwide.
