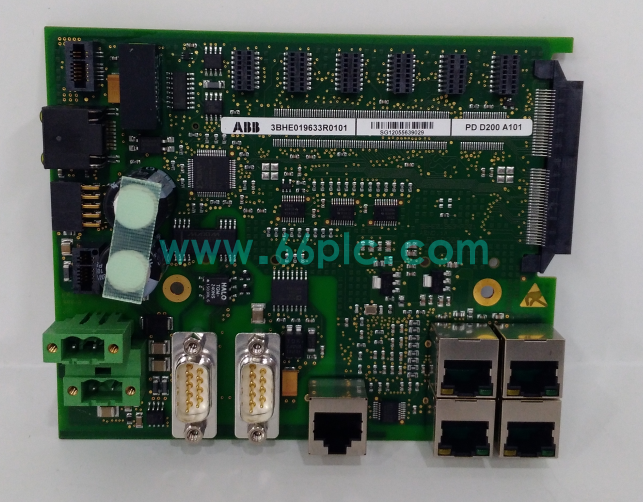

ABB PDD200A101 3BHE019633R0101 Process Control Module

The PDD200A101 3BHE019633R0101 is a rack‑mount processing module for ABB distributed control systems. It performs real‑time signal processing, data calculation and backplane bus communication to implement reliable data exchange between controllers and field I/O modules.

This plug‑in unit supports continuous long‑time running in industrial control racks. It adopts conformal‑coated PCB design and provides built‑in fault diagnosis, widely used in power plant and petrochemical DCS control cabinets.

Main Specifications

• Brand: ABB; Model: PDD200A101; Part No: 3BHE019633R0101; Type: Process Control Module
• Applicable System: ABB DCS distributed control system
• Core Tasks: Real‑time signal processing, data forwarding, backplane bus communication
• Signal Interface: Internal rack backplane bus interface
• Installation: Standard plug‑in card for control cabinet rack mounting
• Power Supply: Powered by cabinet internal auxiliary DC power supply
• Operating Environment: 0℃ ~ +65℃, 5%‑95% RH non‑condensing, industrial anti‑vibration grade
• Diagnostic: On‑board LED indicators for working status and hardware fault alarm
• Certifications: CE, complies with industrial EMC and safety standards

Core Functions

• Process field acquired signals and forward data between controller and I/O modules.
• High‑speed data transmission through rack internal backplane bus for system coordination.
• Real‑time monitoring of module operating status and hardware fault detection.
• Complete system interlock logic processing and status feedback for the whole control rack.
• Support parameter reading‑out and fault diagnosis via upper‑level configuration software.
• Conformal coated circuit design adapts to long‑term continuous operation in heavy‑duty industrial sites.

Application Scenarios

• Spare‑part replacement for DCS control cabinets in thermal power plants, hydropower stations and petrochemical facilities.
• Core processing component for distributed control and automation control systems.
• Maintenance backup inventory for renovation and after‑sales maintenance projects of legacy ABB DCS equipment.
• Matching control module cooperating with CPU unit, I/O cards and system HMI operation panel.
• Retrofit replacement for old modules with communication abnormality and hardware damage faults.

• Global aftermarket spare supply for automation maintenance teams maintaining ABB DCS equipment worldwide.
