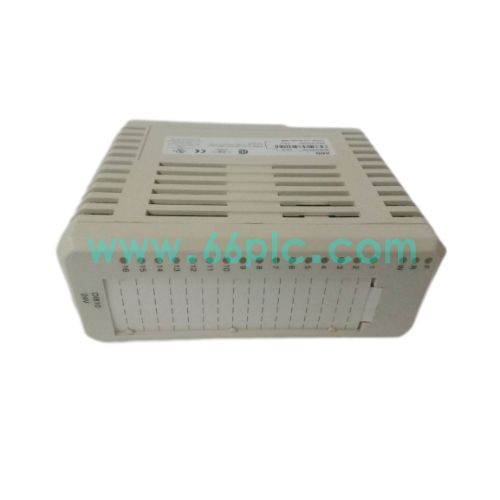

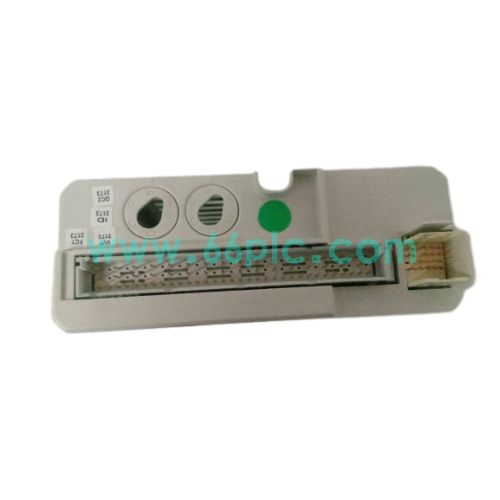

ABB DO810 3BSE008510R1 Digital Output Module

The ABB DO810 with part number 3BSE008510R1 is a 16-channel digital output module of ABB S800 I/O series for AC800M DCS system. It converts digital control commands from the DCS controller into 24VDC discrete on-off signals to drive field solenoid valves, contactors and indicator lights.

This rack plug-in module adopts group isolation design and supports channel fault diagnosis. It communicates with the main controller via Profibus DP fieldbus. Front panel LED indicators show power, communication and each channel status. Hot swap function allows online replacement. As aftermarket spare parts, it is widely used for maintenance, replacement and retrofit of power, chemical and pulp & paper DCS systems.

Main Specifications

1. Brand: ABB; Model: DO810, Part No:3BSE008510R1; Type: 16-Ch Digital Output Module
2. Compatible System: ABB AC800M DCS, S800 I/O rack, Profibus DP communication
3. Core Functions: Digital command output, 24VDC discrete signal driving, circuit isolation, channel self-diagnosis, bus communication, LED status indication, hot swap support
4. Port Resource: 16 digital output terminals, Profibus DP bus connector, power terminals, front panel status LEDs
5. Supported Feature: 24VDC output, group galvanic isolation, channel diagnostics, hot swap, strong industrial anti-interference capability
6. Hardware Feature: S800 I/O rack plug-in module, industrial grade, passive cooling, cabinet installation
7. Supply Status: Aftermarket spare part for S800 I/O DCS system maintenance and component replacement

Core Functions

1. Receive digital control commands sent by AC800M DCS controller through Profibus DP field bus.
2. Output 24VDC discrete switching signals to actuate field solenoid valves, contactors and local status lamps.
3. Provide electrical isolation between control rack and field wiring to reduce electromagnetic interference risk.
4. Run continuous self-diagnosis to detect short circuit, open circuit and module hardware faults and upload fault alarms.
5. Front panel LED lights display power supply, bus communication and individual channel working state for on-site inspection.
6. Support hot swap operation, enabling module replacement without shutting down the whole S800 I/O rack.

Application Scenarios

1. Digital control output unit for ABB AC800M DCS used in chemical, power, metallurgy and pulp & paper industries.
2. Fault digital output module replacement and routine maintenance of existing S800 I/O control racks.
3. I/O hardware upgrading and technical transformation for aging legacy AC800M distributed control systems.
4. Emergency swap for DO module failure of continuously-running process industrial control facilities.
5. Spare-parts stocking for plant instrument maintenance teams supporting ABB S800 I/O series products.
6. Aftermarket spare supply for DCS overhaul and technical-service projects of process industrial facilities.

FAQ

1. Q: Can ABB DO810 3BSE008510R1 work independently without S800 rack and AC800M controller?
   A: It needs to be installed in S800 I/O rack and communicate with AC800M controller, cannot run as standalone hardware.
2. Q: What are typical module failure symptoms?
   A: Communication loss, no switching output, channel output failure, module fault LED on.
3. Q: How to complete commissioning and diagnosis?
   A: Check rack power supply and field load wiring; use DCS software to send output commands and check diagnostic logs and fault alarms.
