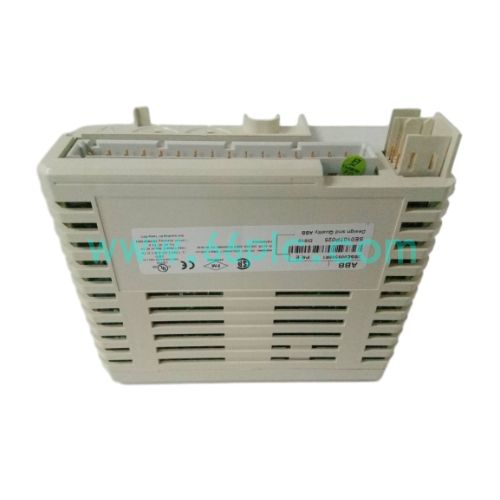

ABB DI810 3BSE008508R1 Digital Input Module

The ABB DI810 with part number 3BSE008508R1 is a 16-channel digital input module belonging to ABB S800 I/O series for AC800M DCS system. It reads discrete 24VDC on-off signals from field equipment and transmits digital status data to the DCS controller for process logic control and status monitoring.

This rack-mounted plug-in module supports channel isolation and self-diagnosis function. It communicates with the controller via Profibus DP fieldbus. Front panel LED indicators display power, communication and each channel status. It supports hot swap. As aftermarket spare parts, it is widely used for maintenance, replacement and retrofit of power, chemical and pulp & paper DCS systems.

Main Specifications

1. Brand: ABB; Model: DI810, Part No:3BSE008508R1; Type: 16-Ch Digital Input Module
2. Compatible System: ABB AC800M DCS, S800 I/O rack, Profibus DP communication
3. Core Functions: Field digital signal acquisition, signal galvanic isolation, channel self-diagnosis, Profibus DP data transmission, LED status indication, hot swap support
4. Port Resource: 16 digital input terminals, Profibus DP bus connector, power terminals, front panel status LEDs
5. Supported Feature: 24VDC input, group isolation, channel diagnostics, hot swap, strong industrial anti-interference ability
6. Hardware Feature: S800 I/O rack plug-in module, industrial grade, passive cooling, cabinet installation
7. Supply Status: Aftermarket spare part for S800 I/O DCS system maintenance and component replacement

Core Functions

1. Capture 24VDC discrete signals from field limit switches, pressure switches and relay contacts.
2. Provide electrical isolation between field wiring and internal control circuit to suppress external electromagnetic interference.
3. Transmit all channel on/off status data to AC800M DCS controller through Profibus DP bus.
4. Execute continuous self-diagnosis, detect wiring faults and module hardware abnormalities, and upload fault alarms.
5. Front panel LED lights show power supply, bus communication and individual channel working status for site inspection.
6. Support hot swap operation, allowing module replacement without shutting down the whole S800 I/O rack.

Application Scenarios

1. Digital signal acquisition unit for ABB AC800M DCS in chemical, power, metallurgy and pulp & paper industries.
2. Fault digital input module replacement and routine maintenance of existing S800 I/O control racks.
3. I/O hardware upgrading and technical transformation for aging legacy AC800M distributed control systems.
4. Emergency swap for DI module failure of continuously-running process industrial control facilities.
5. Spare-parts stocking for plant instrument maintenance teams supporting ABB S800 I/O series products.
6. Aftermarket spare supply for DCS overhaul and technical-service projects of process industrial facilities.

FAQ

1. Q: Can ABB DI810 3BSE008508R1 work independently without S800 rack and AC800M controller?
   A: It needs to be installed in S800 I/O rack and communicate with AC800M controller, cannot run as standalone hardware.
2. Q: What are typical module failure symptoms?
   A: Communication interruption, partial channel signal missing, status reading error, module fault LED lighting up.
3. Q: How to complete commissioning and diagnosis?
   A: Check rack power supply and field wiring; use DCS software to view channel status, diagnostic logs and fault alarms.
