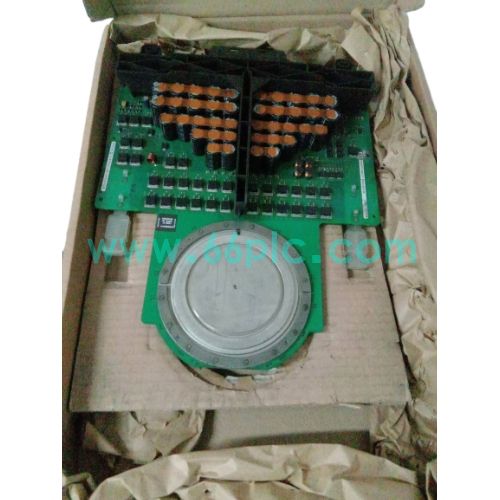

ABB 3BHB003154R0101 IGCT Gate Unit

The ABB 3BHB003154R0101 is an IGCT gate drive unit designed for ABB high-power IGCT power modules. It delivers trigger and protection signals to control the turn-on and turn-off actions of IGCT devices, serving as a critical drive interface inside medium voltage converters and power inverter systems.

This unit integrates gate pulse generation, power supply monitoring and fault detection circuits. It reports device status and fault information back to the main control board in real time. Built with rugged power electronic design, it adapts to high voltage and strong electromagnetic interference environments. As aftermarket spare parts, it is widely used for maintenance, replacement and retrofit of ABB medium voltage drive systems.

Main Specifications

1. Brand: ABB; Model: 3BHB003154R0101; Type: IGCT Gate Drive Unit
2. Compatible System: ABB medium voltage inverter, IGCT power stack, converter control system
3. Core Functions: IGCT gate triggering, device protection, power monitoring, fault signal feedback, status self-diagnosis, pulse signal transmission
4. Port Resource: Optical fiber communication interface, gate output terminals, auxiliary power connector, fault signal terminals
5. Supported Feature: High noise immunity, fast turn-on/off response, overcurrent protection, fiber optical isolation, high power density design
6. Hardware Feature: Power cabinet plug-in unit, power electronic grade, compact structure, forced air cooling
7. Supply Status: Aftermarket spare part for ABB medium voltage converter system maintenance and component replacement

Core Functions

1. Receive optical control pulses from the main control board and convert them into high-current drive signals for IGCT gates.
2. Control the precise turn-on and turn-off timing of IGCT power semiconductor devices in high-power converters.
3. Continuously monitor IGCT operating status and trigger fast protection action when overcurrent or abnormal device conditions occur.
4. Transmit fault and health status back to the converter controller via optical fiber communication.
5. Optical isolation separates low-voltage control circuit from high-power high-voltage side to improve system safety and anti-interference performance.
6. Work together with multiple identical gate units to form multi-level high-power medium voltage inverter stacks.

Application Scenarios

1. IGCT drive unit for ABB medium voltage inverters used in mining, metallurgy, water pump and fan heavy-duty applications.
2. Fault gate drive unit replacement and routine maintenance of existing medium voltage power converter cabinets.
3. Power hardware upgrading and technical transformation for aging legacy high-power IGCT inverter systems.
4. Emergency swap for gate unit failure of continuously-running medium voltage variable frequency drive facilities.
5. Spare-parts stocking for plant power and electrical maintenance teams supporting ABB IGCT series power products.
6. Aftermarket spare supply for medium voltage converter overhaul and technical-service projects of heavy industry facilities.

FAQ

1. Q: Can ABB 3BHB003154R0101 work independently without IGCT device and converter control system?
   A: It must match IGCT power device and main converter controller, cannot operate as standalone hardware.
2. Q: What are typical unit failure symptoms?
   A: Fiber communication loss, IGCT cannot trigger, fault alarm reported, drive pulse missing, converter trip.
3. Q: How to complete commissioning and diagnosis?
   A: Check auxiliary power and optical fiber connections; use converter control software to read drive unit status and fault records.
