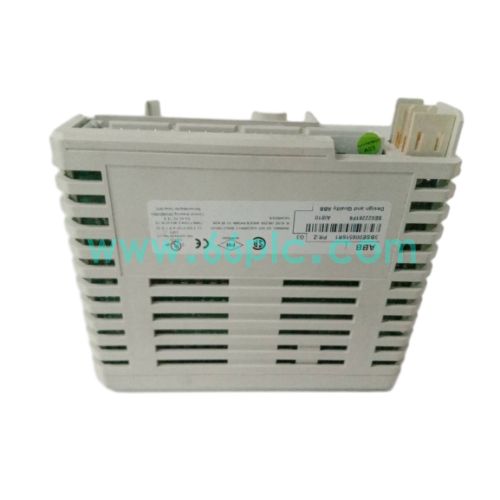

ABB AI810 3BSE008516R1 Analog Input Module

The ABB AI810 with part number 3BSE008516R1 is an 8-channel analog input module belonging to ABB S800 I/O series for AC800M DCS system. It collects standard 4-20mA analog signals from field transmitters and converts analog measurements into digital data for the DCS controller to realize process monitoring.

This rack plug-in module supports channel-level isolation and fault diagnosis. It communicates with the AC800M controller via Profibus DP fieldbus. Front panel LED lights indicate power, communication and channel status. Hot swap is supported for online replacement. As aftermarket spare parts, it is widely used for maintenance, replacement and retrofit of power, chemical and pulp & paper DCS systems.

Main Specifications

1. Brand: ABB; Model: AI810, Part No:3BSE008516R1; Type: 8-Ch Analog Input Module
2. Compatible System: ABB AC800M DCS, S800 I/O rack, Profibus DP communication
3. Core Functions: Field analog signal acquisition, A/D conversion, channel galvanic isolation, self-diagnosis, Profibus DP data transmission, LED status indication, hot swap support
4. Port Resource: 8 analog input terminals, Profibus DP bus connector, power terminals, front panel status LEDs
5. Supported Feature: 4-20mA input, channel isolation, high precision sampling, channel diagnostics, industrial anti-interference capability
6. Hardware Feature: S800 I/O rack plug-in module, industrial grade, passive cooling, cabinet installation
7. Supply Status: Aftermarket spare part for S800 I/O DCS system maintenance and component replacement

Core Functions

1. Receive 4-20mA analog measurement signals from field pressure, temperature and flow transmitters.
2. Convert analog current signals into digital values and send data to AC800M controller through Profibus DP bus.
3. Adopt channel-by-channel galvanic isolation to block interference between field side and control side circuits.
4. Execute continuous self-diagnosis to detect wiring open circuit, short circuit and module hardware faults, and upload alarm information.
5. Front panel LED indicators show power supply, bus communication and each channel working state for convenient site inspection.
6. Support hot swap operation, allowing module replacement without shutting down the whole S800 I/O rack.

Application Scenarios

1. Analog signal acquisition unit for ABB AC800M DCS used in chemical, power, metallurgy and pulp & paper industries.
2. Fault analog input module replacement and routine maintenance of existing S800 I/O control racks.
3. I/O hardware upgrading and technical transformation for aging legacy AC800M distributed control systems.
4. Emergency swap for AI module failure of continuously-running process industrial control facilities.
5. Spare-parts stocking for plant instrument maintenance teams supporting ABB S800 I/O series products.
6. Aftermarket spare supply for DCS overhaul and technical-service projects of process industrial facilities.

FAQ

1. Q: Can ABB AI810 3BSE008516R1 work independently without S800 rack and AC800M controller?
   A: It needs to be installed in S800 I/O rack and communicate with AC800M controller, cannot run as standalone hardware.
2. Q: What are typical module failure symptoms?
   A: Communication loss, partial channel reading deviation or no signal, module fault LED on.
3. Q: How to complete commissioning and diagnosis?
   A: Check rack power supply and field transmitter wiring; use DCS software to view channel values, diagnostic logs and fault alarms.
