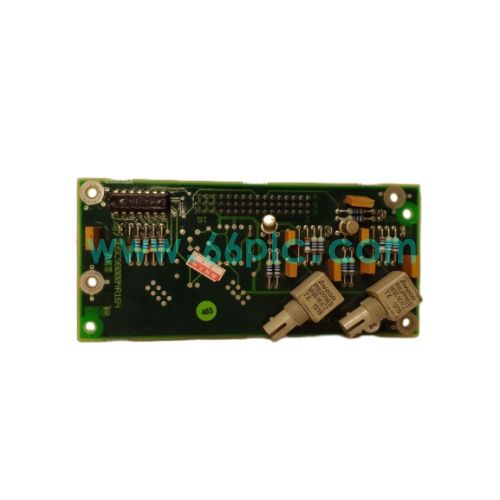

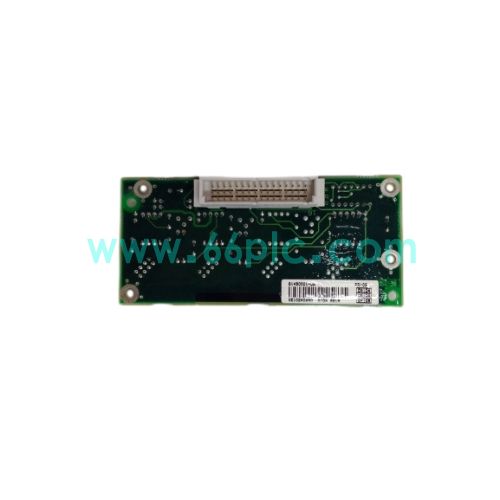

ABB DTDX991A 61430001‑UW Digital Terminal Board

The ABB DTDX991A, part number 61430001‑UW, is a digital signal terminal interface board used for ABB industrial drive and excitation control systems. It serves as signal‑wiring transition hardware between main control boards and field‑side discrete signals, distributing digital input and output signals to terminal blocks for convenient field wiring connection and signal routing.

This board provides signal filtering and transient‑voltage suppression for field loops, improving system anti‑interference capability. It mates with main control cards via internal connectors and leads all field signals out to screw terminals. As a discontinued legacy spare part, it is widely applied in aftermarket maintenance and retrofitting of old drive cabinets and generator‑excitation systems.

Main Specifications

• Brand: ABB; Model: DTDX991A; Part No:61430001‑UW; Type: Digital Signal Terminal Board
• Compatible System: ABB drive system, generator excitation control system, digital I/O main control boards
• Core Functions: Signal wiring transition, digital‑I/O signal distribution, loop surge suppression, signal filtering, internal‑to‑field‑terminal routing
• Port Resource: Internal board‑to‑board connector, multi‑channel field screw terminal block, test‑point interfaces
• Supported Feature: Signal noise filtering, transient‑surge protection, convenient field wiring, easy‑access signal test points
• Hardware Feature: Cabinet‑mount printed circuit board, industrial‑grade anti‑interference design
• Supply Status: Aftermarket spare part for legacy drive‑ and excitation‑system maintenance and component replacement

Core Functions

• Realize physical signal transition between main control circuit boards and field‑side external wiring.
• Distribute multi‑channel digital input and output signals to screw terminals for convenient field cable connection.
• Built‑in filter and suppression components to absorb transient surge and noise interference coming from field wiring.
• Reserve signal test points for on‑site engineers to measure and check signal status during commissioning and troubleshooting.
• Standardize signal routing inside the cabinet, reduce wiring errors and improve maintainability of whole‑control system.
• Protect rear‑end main control boards against abnormal voltage spikes transmitted from field‑side loops.

Application Scenarios

• Signal terminal wiring for ABB industrial drive cabinets and generator‑excitation control cabinets in power plants and heavy‑industry sites.
• Fault terminal‑board replacement and routine maintenance for existing ABB drive and excitation control cabinets.
• Signal‑interface hardware upgrading and technical transformation for aging legacy industrial control systems.
• Emergency swap for terminal‑board damage of continuously‑running key drive‑ and generator‑control equipment.
• Spare‑parts stocking for plant electrical‑maintenance teams supporting ABB legacy drive and excitation products.
• Aftermarket spare supply for equipment overhaul and technical‑service projects of power‑generation and process‑industry facilities.

FAQ

• Q: Can DTDX991A 61430001‑UW work without matching main control board?
  A: It is only a signal transition board, it must cooperate with corresponding main control board, cannot complete signal processing independently.
• Q: What are typical module failure symptoms?
  A: Partial signal channel open circuit, poor contact, signal interference, unstable field‑side I/O signal, terminal‑board burn‑out caused by surge.

• Q: How to complete commissioning and diagnosis?
  A: Inspect internal connector and field‑terminal wiring; measure signal status at test points, compare signals between main‑board side and field‑terminal side.
