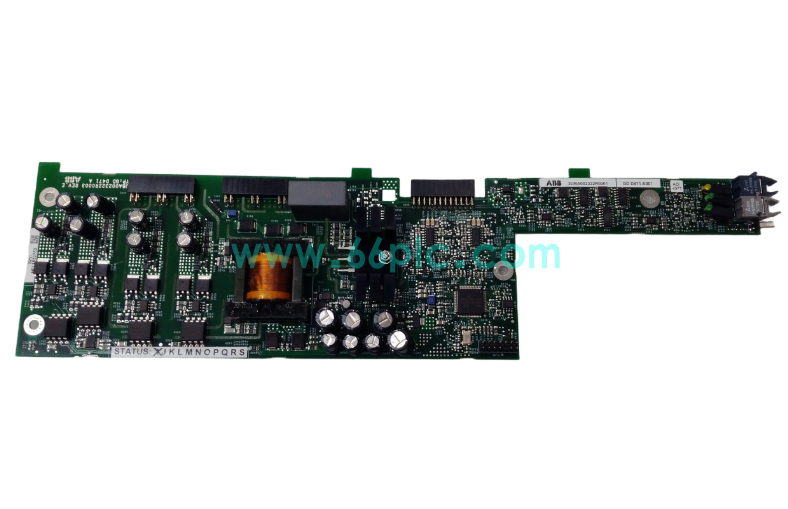

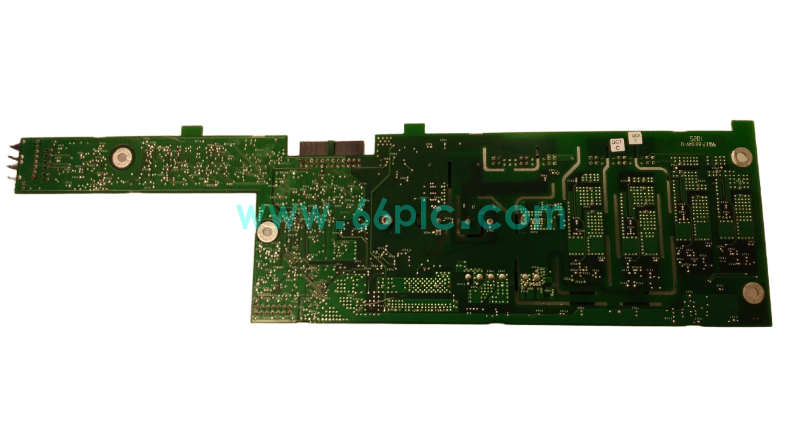

ABB GDD471A001 2UBA002322R0001 Gate Drive Unit

The ABB GDD471A001, part number 2UBA002322R0001, is an advanced IGCT gate drive unit designed for high‑power industrial converter applications. It provides precise trigger and protection signals for IGCT power devices, controlling turn‑on and turn‑off actions under high‑voltage and high‑current operating conditions. It is a critical core driver component for large‑capacity frequency converters and power conversion systems.

This unit integrates driving signal generation, fault detection and status feedback circuits. It delivers fast‑response gate pulses and monitors device working state in real‑time. It features strong anti‑interference performance and reliable short‑circuit protection. It communicates fault status back to main control system. As aftermarket spare parts, it is widely used for maintenance and replacement of ABB large power converter units in metallurgy, power generation and heavy‑industry sites.

Main Specifications

• Brand: ABB; Model: GDD471A001; Part No:2UBA002322R0001; Type: IGCT Gate Drive Unit
• Compatible System: ABB high‑power converter, IGCT power stack assembly
• Core Functions: IGCT gate trigger driving, fast turn‑on/off pulse output, device fault detection, short‑circuit protection, status signal feedback, galvanic isolation
• Port Resource: Power supply terminal, optical fiber communication interface, IGCT gate connection terminal, fault signal output terminal
• Supported Feature: High‑speed drive response, over‑current protection, fault self‑diagnosis, optical fiber signal transmission, high noise immunity
• Hardware Feature: Standard plug‑in board structure, industrial grade, compact layout
• Supply Status: Aftermarket spare part for legacy high‑power converter system maintenance and component replacement

Core Functions

• Receive optical fiber control commands from main control board, generate high‑current gate driving pulses for IGCT.
• Accurately control IGCT turn‑on and turn‑off timing to ensure stable operation of high‑power conversion circuit.
• Real‑time monitor IGCT working condition, detect short‑circuit and abnormal device states.
• Rapidly trigger protection mechanism under fault conditions to avoid damage to power semiconductor devices.
• Transmit fault and working status signals back to upper‑level control system via optical fiber interface.
• Adopt optical fiber isolation to eliminate electromagnetic interference between high‑power power unit and low‑voltage control unit.

Application Scenarios

• High‑power converter drive unit for power generation, metallurgy, mining and heavy‑industry sites.
• Fault gate‑drive‑unit replacement and routine maintenance of existing ABB converter cabinets.
• Power unit hardware upgrading and technical transformation for large‑capacity frequency conversion systems.
• Emergency swap for drive‑board failure of continuously‑running key high‑power equipment.
• Spare‑parts stocking for plant electrical‑maintenance teams supporting ABB power conversion automation products.
• Aftermarket spare supply for converter‑system overhaul and technical‑service projects of industrial facilities.

FAQ

• Q: Can GDD471A001 2UBA002322R0001 work independently without ABB converter main control system?
  A: It must work with matched IGCT and main control unit, cannot operate as standalone hardware.
• Q: What are typical module failure symptoms?
  A: Converter reports drive fault, IGCT cannot trigger, frequent protection tripping, optical signal communication error.

• Q: How to complete commissioning and diagnosis?
  A: Inspect power supply, optical fiber connection and wiring; check drive status and fault code on upper control system.
