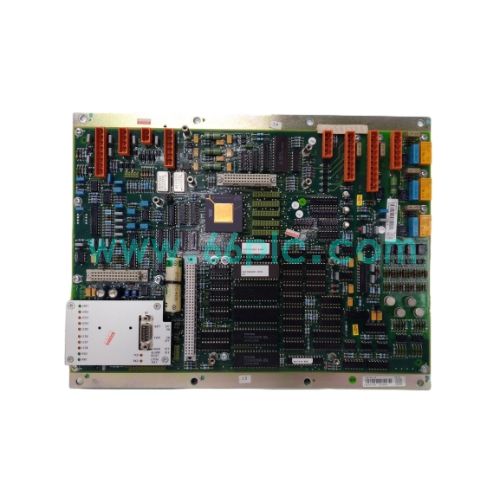

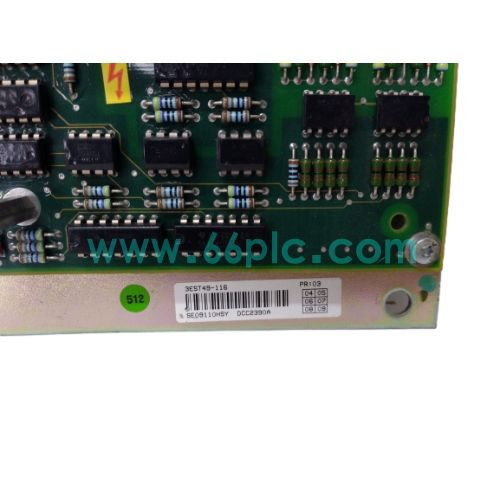

ABB DCC2390A 3EST49‑116 3BSC980006R152 Excitation Control Board

The ABB DCC2390A is an excitation control board with part numbers 3EST49‑116 and 3BSC980006R152, designed for generator excitation systems. It undertakes pulse‑triggering and closed‑loop regulation tasks for thyristor rectifier units, adjusting generator excitation current to stabilize output voltage and reactive power. It serves as a key control component for synchronous generator excitation cabinets.

This board receives set‑point signals from the main excitation controller, generates multi‑phase synchronized firing pulses for SCR power units. It integrates signal conditioning, phase‑lock synchronization and fault monitoring circuits. Equipped with status LED indicators for on‑site fault inspection. It is widely used as aftermarket spare parts for power‑plant generator excitation‑system maintenance and retrofitting projects.

Main Specifications

• Brand: ABB; Model: DCC2390A; Part No:3EST49‑116, 3BSC980006R152; Type: Generator Excitation Control Board
• Compatible System: ABB generator excitation system, SCR thyristor power rectifier unit, excitation master controller
• Core Functions: Phase‑lock synchronization, SCR firing pulse generation, excitation current regulation, loop fault detection, signal‑conditioning processing
• Port Resource: Phase‑sync signal terminals, pulse output terminals, control‑set‑point input, status LED indicators
• Supported Feature: Multi‑phase pulse output, over‑current & phase‑loss monitoring, surge protection, excitation‑loop fault recording
• Hardware Feature: Cabinet‑mount printed circuit board, industrial high‑voltage isolation design, wide operating temperature range
• Supply Status: Aftermarket spare part for legacy power‑plant generator excitation‑system maintenance and component replacement

Core Functions

• Capture AC grid phase‑synchronization reference signal to realize accurate phase‑locked timing for thyristor triggering.
• Receive excitation adjustment set‑point command from main controller, dynamically adjust SCR firing angle to control generator excitation current.
• Output stable multi‑phase trigger pulses to thyristor rectifier bridge, realize continuous adjustment of generator excitation voltage.
• Monitor excitation loop operating conditions, detect pulse loss, phase loss and over‑current faults, output fault status indication.
• Process feedback signals of excitation current and voltage, provide real‑time data for excitation closed‑loop regulation.
• Ensure stable generator terminal‑voltage output and reasonable reactive‑power distribution for grid‑connected power‑generation units.

Application Scenarios

• Excitation pulse control for synchronous generator sets of thermal power, hydropower and industrial self‑power plants adopting ABB excitation platform.
• Fault excitation‑control‑board replacement and routine maintenance of existing generator excitation cabinets.
• Excitation‑system hardware upgrading and technical transformation for aging legacy power‑generation equipment.
• Emergency swap for control‑board failure of continuously‑running key grid‑connected generator units.
• Spare‑parts stocking for power‑plant electrical‑maintenance teams supporting ABB legacy excitation products.
• Aftermarket spare supply for generator‑set overhaul and technical‑service projects of power‑generation industrial facilities.

FAQ

• Q: Can DCC2390A work without SCR power unit and main excitation controller?
  A: It must match excitation master controller and thyristor rectifier unit, cannot complete excitation regulation as standalone circuit board.
• Q: What are typical module failure symptoms?
  A: Generator cannot build‑up voltage, excitation current abnormal, pulse‑loss fault alarm, generator voltage fluctuation, SCR unit over‑heating.

• Q: How to complete commissioning and diagnosis?
  A: Inspect phase‑sync input and pulse output wiring; check LED status, measure trigger‑pulse waveform, verify excitation‑current response with control set‑point.
