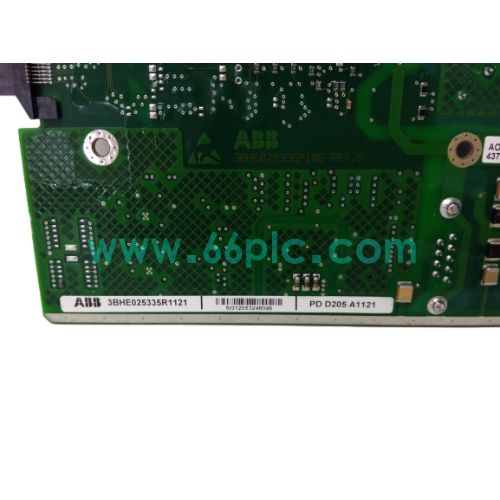

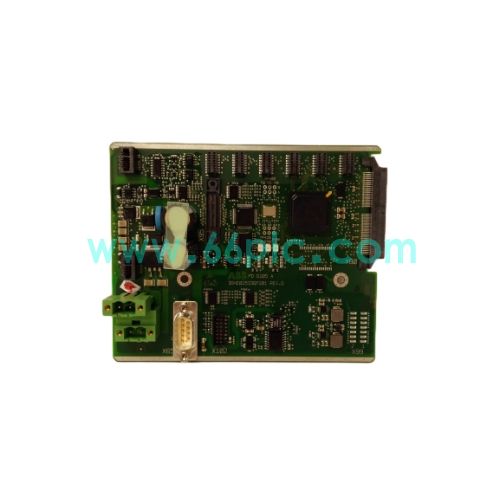

ABB PDD205A1121 3BHE025335R1121 Power Drive Distribution Board

The ABB PDD205A1121 3BHE025335R1121 is a dedicated power drive distribution board for ABB UNITROL series generator excitation and ACS6000 medium‑voltage drive systems. It supplies stable auxiliary power for IGBT gate drive circuits, establishes electrical isolation between low‑voltage control logic and high‑power power units, and transmits drive control signals to power semiconductor components for closed‑loop regulation of power‑generation and variable‑frequency equipment.

This plug‑in circuit board adopts conformal‑coated PCB design to resist dust, humidity and electromagnetic interference in power‑plant cabinet environments, and integrates multiple hardware protection and fault‑monitoring circuits. Original production has been discontinued. It is widely supplied as aftermarket spare parts for thermal power plants, industrial medium‑voltage drive cabinet maintenance and power‑electronic system retrofitting projects.

Main Specifications

1. Brand:ABB; Model:PDD205A1121, Part No:3BHE025335R1121; Type:Power Drive Distribution Interface Board
2. Applicable System:ABB UNITROL generator excitation system and ACS6000 medium‑voltage drive control platform
3. Input Power:24 VDC system power supply input from control backplane
4. Output Performance:Multiple regulated auxiliary power outputs for IGBT gate‑drive unit operation
5. Isolation Performance:Reinforced galvanic isolation between control logic side and high‑voltage power unit side
6. Environmental Characteristic:Conformal coating protection for harsh power‑plant cabinet operating conditions
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Convert 24 VDC input power into multiple stable auxiliary power supplies required for IGBT gate‑drive circuits.
2. Realize electrical isolation between low‑voltage control logic and high‑power power unit to suppress surge‑voltage impact damage.
3. Provide built‑in over‑voltage, over‑current and short‑circuit hardware protection for internal power‑supply loops.
4. Detect internal power‑supply abnormality and board hardware failure, and feed diagnostic alarm signals back to main controller.
5. Adopt conformal‑coated circuit board to improve humidity‑proof and dust‑proof performance inside industrial control cabinets.
6. Act as critical power distribution and signal driving hardware within ABB excitation and medium‑voltage drive control racks.

Application Scenarios

1. Thermal‑power stations, industrial medium‑voltage frequency‑conversion workshops and other power‑control industrial sites.
2. Spare drive‑distribution board replacement and routine maintenance of existing ABB UNITROL excitation control cabinets.
3. Technical renovation and power‑supply‑reliability upgrade of aging excitation and medium‑voltage drive automation systems.
4. On‑site troubleshooting and replacement of faulty power‑drive boards on continuously running generator and drive units.
5. Spare‑parts stocking for system integrators and power‑electronic equipment professional maintenance contractors.
6. Global aftermarket spare supply for technicians maintaining obsolete ABB UNITROL and ACS6000 legacy hardware.

FAQ

1. Q:Which control systems support PDD205A1121 3BHE025335R1121?
   A:It is designed for ABB UNITROL excitation system and ACS6000 medium‑voltage drive, and cannot adapt to other third‑party control platforms.
2. Q:What faults will occur if this drive‑distribution board is damaged?
   A:IGBT driving abnormality, excitation regulation failure, power unit alarm and system protective shutdown may be triggered.

3. Q:Is this ABB power drive distribution board still in original production?
   A:ABB original manufacturing has been discontinued, only tested surplus and refurbished spare units are available.
