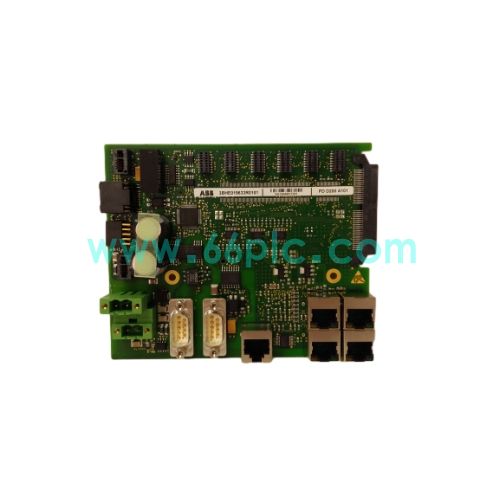

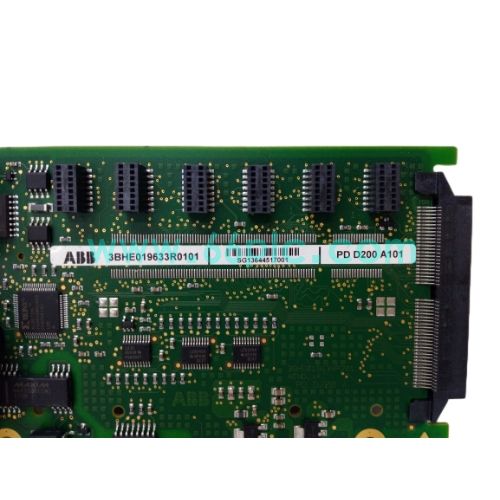

ABB PDD200A101 3BHE019633R0101 Gate Driver Power Distribution Board

The ABB PDD200A101 3BHE019633R0101 is a specialized gate‑driver and power distribution interface board for ABB UNITROL 6000 excitation and ACS6000 medium‑voltage drive systems. It generates multi‑channel regulated auxiliary power rails for power semiconductor gate drive circuits, provides galvanic isolation between low‑voltage logic section and high‑power power unit, and guarantees stable power supply for excitation and frequency‑conversion power‑electronic components in power‑plant automation.

This plug‑in circuit board adopts conformal coated PCB design to resist humidity and conductive dust in power‑plant cabinet environment, and integrates hardware over‑voltage and over‑current protection circuits. Original production has been discontinued. It is widely used as aftermarket spare parts for thermal‑power generator excitation cabinets and medium‑voltage drive control cabinet maintenance and equipment retrofit projects.

Main Specifications

1. Brand:ABB; Model:PDD200A101, Part No:3BHE019633R0101; Type:Gate Driver Power Distribution Interface Board
2. Applicable System:ABB UNITROL 6000 generator excitation system and ACS6000 medium‑voltage drive platform
3. Input Power:24 VDC backplane‑fed system power supply
4. Output Performance:Multiple groups of stabilized auxiliary power outputs for IGBT gate driving units
5. Isolation Performance:Reinforced galvanic isolation between logic circuit and high‑power power unit
6. Environmental Feature:Conformal coating protection for harsh power‑plant cabinet operating conditions
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Convert input 24 VDC power into multiple groups of stable auxiliary power required for IGBT gate drive circuits.
2. Realize electrical isolation between low‑voltage control logic and high‑voltage power unit to suppress surge interference damage.
3. Provide over‑voltage, over‑current and short‑circuit hardware protection for gate drive power supply loops.
4. Detect internal power‑supply abnormality and board hardware faults, and feed status alarm signals back to main controller.
5. Adopt conformal coating treatment to improve humidity and dust resistance inside power‑plant control cabinets.
6. Serve as critical power distribution and driving interface hardware within ABB excitation and medium‑voltage drive control racks.

Application Scenarios

1. Thermal‑power generating stations, industrial medium‑voltage variable‑frequency drive workshops and other power‑control industrial sites.
2. Spare interface board replacement and daily maintenance of existing ABB UNITROL 6000 generator excitation cabinets.
3. Technical renovation and power‑supply‑reliability upgrade of aging excitation and medium‑voltage drive automation systems.
4. On‑site troubleshooting and replacement of faulty power distribution boards on continuously running generator and drive units.
5. Spare‑parts stocking for system integrators and power‑electronic equipment professional maintenance contractors.
6. Global aftermarket spare supply for technicians maintaining obsolete ABB UNITROL and ACS6000 series legacy hardware.

FAQ

1. Q:Which equipment matches PDD200A101 3BHE019633R0101?
   A:It is specially used for ABB UNITROL6000 excitation system and ACS6000 medium‑voltage drive, cannot be used for other unrelated control platforms.
2. Q:What failure symptoms will occur if this board fails?
   A:IGBT driving failure, excitation adjustment failure, power unit alarm and system shutdown may occur.

3. Q:Is this ABB gate‑driver power distribution board still in original production?
   A:ABB original manufacturing has been discontinued, only tested surplus and refurbished spare units are available.
